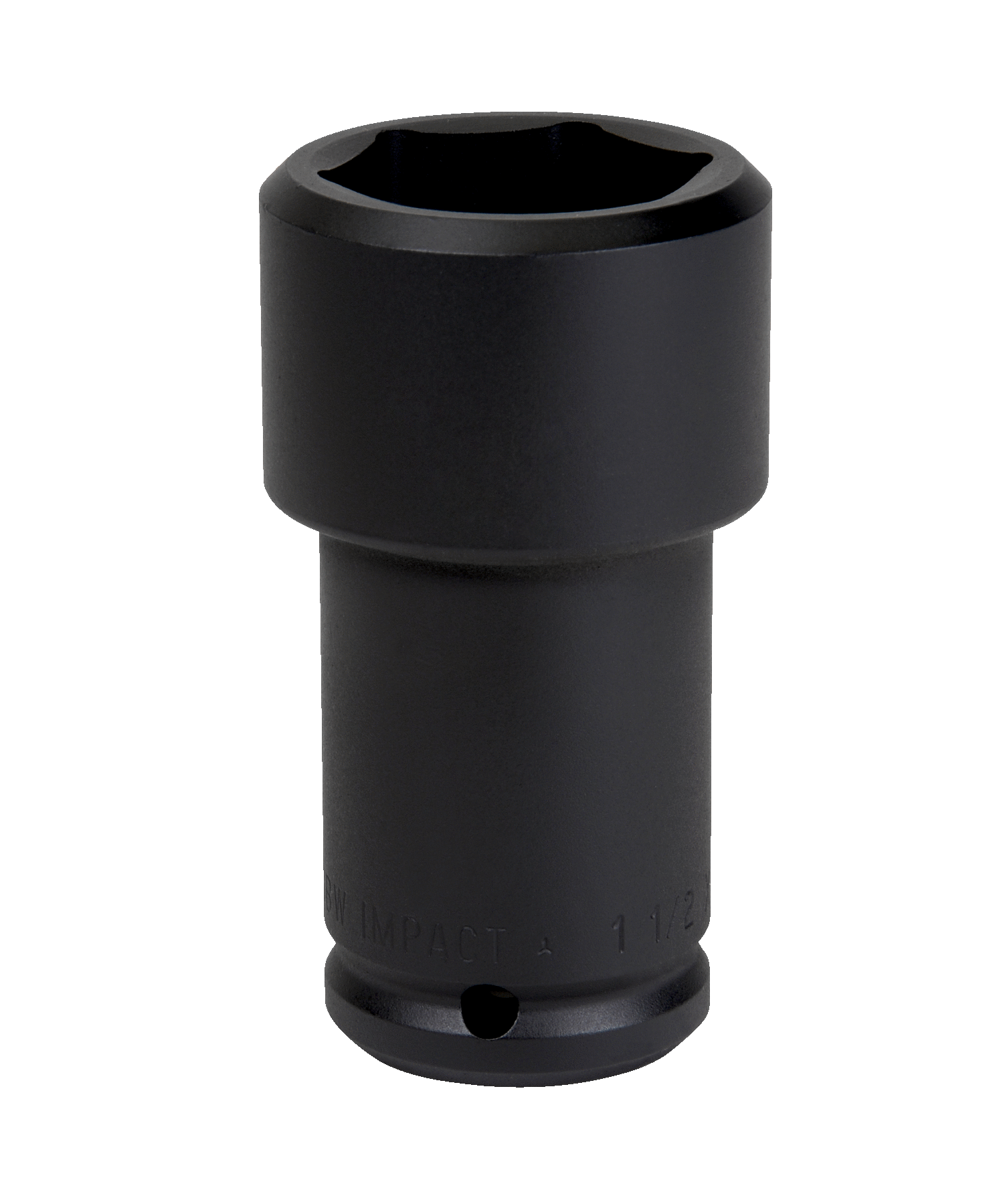

Williams 17-648BW | 1 Drive 13/16 Square Budd Socket

Supertorque lobular openings for greater turning power without deforming the fastener

13/16" square opening threads stud into wheel

1-1/2" hex opening engages and tightens the wheel lug nut

Suitable for use with pneumatic and electric impact wrenches

Specially heat treated for impact use to provide long life, safety, and durability

• SUPERTORQUE® lobular openings for greater turning power without deforming the fastener
• 13/16" square opening threads stud into wheel
• 1-1/2" hex opening engages and tightens the wheel lug nut
• Suitable for use with pneumatic and electric impact wrenches
• Specially heat treated for impact use to provide long life, safety, and durability
• Size (Inches): 13/16 Square / 1 1/2 Hex
• OAL (Inches): 4
• Drive End Diameter (Inches): 1 3/4
• Working End Diameter (Inches): 2 1/4
• Broach Depth (Inches): 1 7/16
• Bolt Clearance Depth (Inches): 2 1/4
• Bolt Clearance Diameter (Inches): 1 1/4

Williams - 17-648BW - Features

• Supertorque lobular openings for greater turning power without deforming the fastener
• 13/16" square opening threads stud into wheel
• 1-1/2" hex opening engages and tightens the wheel lug nut

Williams - 17-648BW - Specifications

Brand Name	Williams
Order Part Number	JHW17-648BW
Category	Sockets And Accessories
Length	1
Material	Metal
Product Type	Socket - Impact - Torque
Size / Capacity	13/16

Williams - 17-648BW - Technical Details

Male square drive	1 in
Dimensions	13/16 Square / 1-1/2 Hex,13/16 Square / 1-1/2 Hex
OAL (inches)	4 in
Drive End Diameter	1-3/4 in
Working End Diameter	2-1/4 in
Broach Depth	1-7/16 in
Bolt Clearance Depth	2-1/4 in
Bolt Clearance Diameter (Inches)	1-1/4 in
Nose Length	1-7/16 in
Weight (lb)	2,95 lb

Williams - 17-648BW - Documents and Downloads

Williams 17-648BW Specification Sheet	Click to View
Williams 17-648BW Data Sheet	Click to View
