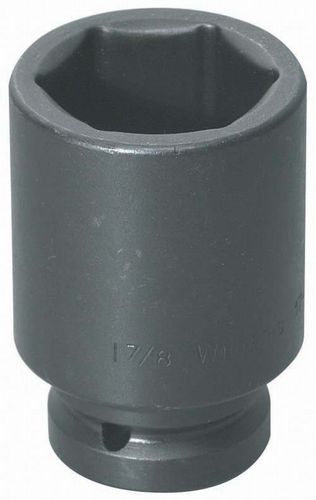

Williams 17-6156 | 1" Drive Deep Impact Socket 6-Point 4-7/8", Black Industrial Finish

Supertorque lobular openings for greater turning power without deforming the fastener

Designed for maximum engagement on 6 point fasteners

Suitable for use with pneumatic and electric impact wrenches

Specially heat treated for impact use to provide long life, safety, and durability

• SUPERTORQUE® lobular openings for greater turning power without deforming the fastener
• Designed for maximum engagement on 6 point fasteners
• Suitable for use with pneumatic and electric impact wrenches
• Specially heat treated for impact use to provide long life, safety, and durability
• Size (Inches): 4 7/8
• OAL (Inches): 7 1/4
• Drive End Diameter (Inches): 3 1/4
• Working End Diameter (Inches): 7
• Broach Depth (Inches): 3
• Bolt Clearance Depth (Inches): 5 5/32
• Bolt Clearance Diameter (Inches): 3 1/2
• Nose Length (Inches): 6 1/4
• Use O-Ring / Pin: 7-1C - 7-2F

Williams - 17-6156 - Features

• Supertorque lobular openings for greater turning power without deforming the fastener
• Designed for maximum engagement on 6 point fasteners
• Suitable for use with pneumatic and electric impact wrenches

Williams - 17-6156 - Specifications

Brand Name	Williams
Order Part Number	JHW17-6156
Category	Sockets And Accessories
Length	1
Material	Metal
Product Type	Socket - Impact - Set

Williams - 17-6156 - Technical Details

Male square drive	1 in
Dimensions	4-7/8 in
OAL (inches)	7-1/4 in
Drive End Diameter	3-1/4 in
Working End Diameter	7 in
Broach Depth	3 in
Bolt Clearance Depth	5-5/32 in
Bolt Clearance Diameter (Inches)	3-1/2 in
Nose Length	3 in
Weight (lb)	42 lb

Williams - 17-6156 - Documents and Downloads

Williams 17-6156 Specification Sheet	Click to View
Williams 17-6156 Data Sheet	Click to View
