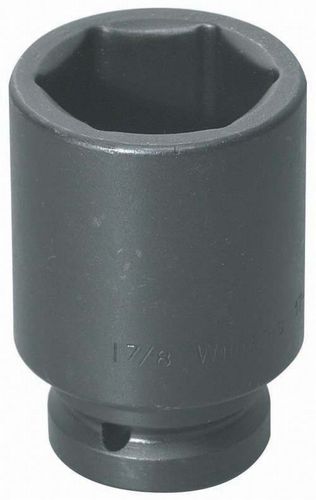

Williams 17-6128 | 1" Drive Deep Impact Socket 6-Point 4", Black Industrial Finish

Supertorque lobular openings for greater turning power without deforming the fastener

Designed for maximum engagement on 6 point fasteners

Suitable for use with pneumatic and electric impact wrenches

Specially heat treated for impact use to provide long life, safety, and durability

• SUPERTORQUE® lobular openings for greater turning power without deforming the fastener
• Designed for maximum engagement on 6 point fasteners
• Suitable for use with pneumatic and electric impact wrenches
• Specially heat treated for impact use to provide long life, safety, and durability
• Size (Inches): 4
• OAL (Inches): 6 1/8
• Drive End Diameter (Inches): 2 3/8
• Working End Diameter (Inches): 5 1/2
• Broach Depth (Inches): 2 17/32
• Bolt Clearance Depth (Inches): 4 3/32
• Bolt Clearance Diameter (Inches): 2 7/8
• Nose Length (Inches): 5 1/8
• Uses RET RING® Number: 7-3X
• Use O-Ring / Pin: 7-1B / 7-2D

Williams - 17-6128 - Features

• Supertorque lobular openings for greater turning power without deforming the fastener
• Designed for maximum engagement on 6 point fasteners
• Suitable for use with pneumatic and electric impact wrenches

Williams - 17-6128 - Specifications

Brand Name	Williams
Order Part Number	JHW17-6128
Category	Sockets And Accessories
Length	1
Material	Metal
Product Type	Socket - Impact - Set
Size / Capacity	4

Williams - 17-6128 - Technical Details

Male square drive	1 in
Dimensions	4 in
OAL (inches)	6-1/8 in
Drive End Diameter	2-3/8 in
Working End Diameter	5-1/2 in
Broach Depth	2-17/32 in
Bolt Clearance Depth	4-3/32 in
Bolt Clearance Diameter (Inches)	2-7/8 in
Nose Length	2-17/32 in
Weight (lb)	20,02 lb

Williams - 17-6128 - Documents and Downloads

Williams 17-6128 Specification Sheet	Click to View
Williams 17-6128 Data Sheet	Click to View
