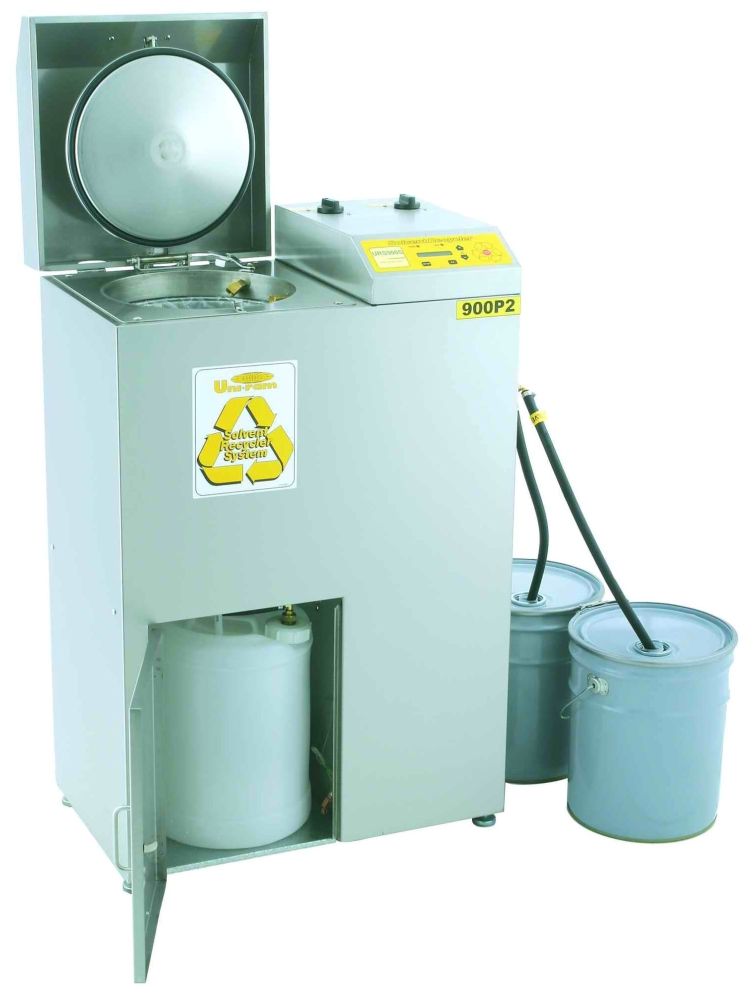

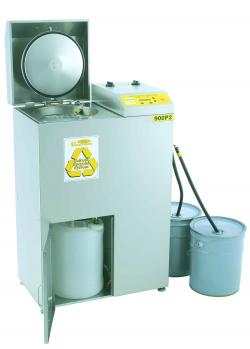

Uni-Ram URS900EP2 | Solvent Recycler,Transfer System 6.6Gal

Uni-Ram URS900EP2 | Solvent Recycler,Transfer System 6.6Gal

Solvent Recycler

Item Solvent Recycler

Overall Dimension 30 Inch Width x 20 Inch Depth x 45 Inch Height

Voltage Rating 240 Volt

Uni-Ram - URS900EP2 - Features

• Transfer dirty solvent to the distillation tank of the recycler
• Press Start
• the heater vaporizes the solvent
• Residue remains in a heat resistant liner bag in the tank
• Clean solvent vapor cools as it flows through the condenser to the clean solvent pail
• Transfer clean solvent from the recycler
• Display LED Indicate Power On, Heat on and 6 Temperature Set Point
• Current Rating 9.3 Amp
• Heater 2100 Watt
• Tank Capacity 5 US Gallon
• Solvent Transfer Auto-Transfer In and Out
• Time to Distill 4 to 6 Hour
• Temperature Rating 200 Deg C
• Applicable Standard ETL, UL2208, CSA 22.2, NEC
• Uni-ram URS900EP2 Solvent Recycler
• URS900 with Auto Transfer
• Tank Capacity: 5 US Gal (20 litres)
• Speed: 5 US Gal in about 4-6 hours
• Solvent Transfer: Auto-transfer, in and out
• Air Pressure:Min 85 PSI, unit complete with pressureregulator and filter
• Power Supply: 220/240V, 2200W, 9.3A
• Heater:2100W

Uni-Ram - URS900EP2 - Additional Information

• Overall Dimension 30 Inch Width x 20 Inch Depth x 45 Inch Height
• Voltage Rating 240 Volt
• Current Rating 9.3 Amp
• Heater 2100 Watt
• Tank Capacity 5 US Gallon
• Solvent Transfer Auto-Transfer In and Out
• Time to Distill 4 to 6 Hour
• Temperature Rating 200 Deg C
• Applicable Standard ETL, UL2208, CSA 22.2, NEC

Uni-Ram - URS900EP2 - Specifications

Order Part Number	UNURS900EP2
Item Description	Solvent Recycler,Transfer System 6.6Gal
Manufacturer Long Name	Uni-Ram Corporation
Manufacturer Part Number	URS900EP2
Product Group Id	UN00
Country of Origin	CA
Harmonization Code	84198900
MS Bin Code	GC092
Default Selling Unit	EA
UNSPSC	25191700

Uni-Ram - URS900EP2 - Documents and Downloads

Uni-Ram URS900EP2 Catalog Pages

Click to View
