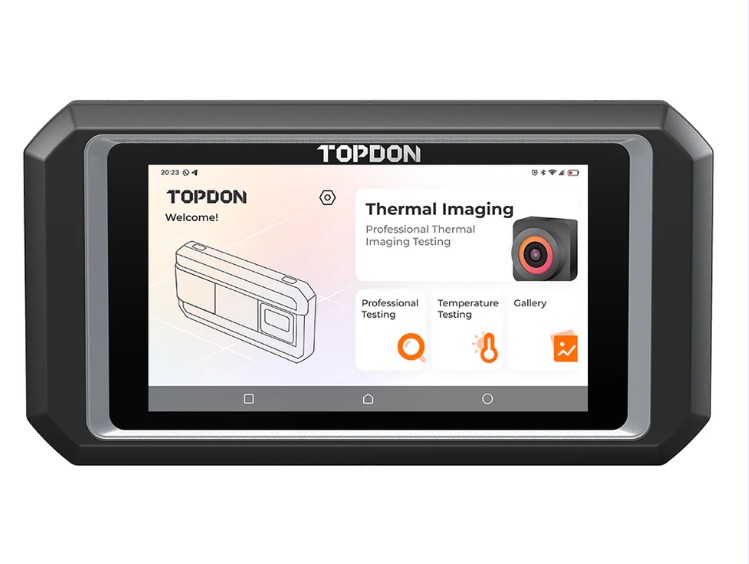

The TC003 is a cutting-edge thermal camera that provides high-resolution thermal imaging to a wide audience. With its advanced features, the TC003 delivers high-quality imaging (256x192), exceptional temperature sensitivity (40mk), and unparalleled resolution (down to 0.1?). Additionally, the TC003 boasts a 5-inch touch screen, a 2-megapixel visible light camera for overlapping images, and temperature waveform graphing. The OTG function further expands the TC003's capabilities, enabling it to link to an endoscope for more specialized thermal work. This versatile thermal imager is specially designed for maintenance and inspecting, providing accurate thermal imaging services to support various maintenance tasks, such as professional automotive repairs, HVAC systems, and protecting crops or livestock from predators.
Topdon - TOPTC003 - Features
- Superior Image Quality with an IR Resolution of 256x192
- Highly Accurate Temperature Readings
- Expanded Capabilities with OTG Functionality
- Optimized Testing Range
- 4 Temperature Reading Modes
- 4 Imaging Modes & 11 Palettes
- View Temperature Differences Easily
- Advanced Secondary Analysis - Unlock the Full Potential of Thermal Imaging
- Monitor Temperature Change by Waveform Graph
- Durable and Resilient Thermal Camera
- Hardware That Matters
- Unparalleled Accuracy with Temperature Correction
Topdon - TOPTC003 - Specifications
| Order Part Number | TOPTC003 |
| Item Description | Thermal Imaging Camera Tablet 5" G |
| Product Group Id | TOP00 |
| MS Bin Code | CC112 |
| Default Selling Unit | EA |
| Product Group Desc | Topdon USA |
| System | Android 11.0 |
| Operating System | Android/Windows devices |
| Battery Capacity | 5000mAh |
| Display Screen | 5 inch, 854*480 touchscreen |
| Operating Voltage | 5V |
| Charging Time | 3h |
| Battery Life | 4h |
| Storage | 2GB RAM+32GB storage |
| Calibration Temperature Measurement Distance | 0.2m~5m |
| Identification Distance | 0.1~50m |
| Recognition Distance | 50~80m |
| Detection Distance | 80~320m |
| Measurement Accuracy | ±2°C or ±2% |
| Infrared Light Resolution | 256x192 |
| Focal Range | 3.2mm |
| FOV | 56°X42° |
| Spectral Range | 8 – 14?m |
| NETD | <40mK |
| Temperature Resolution | 0.1? |
| Frame Rate | 25Hz |
| Measurement Range | -20 to 550 °C (-4 to 1022?) |
