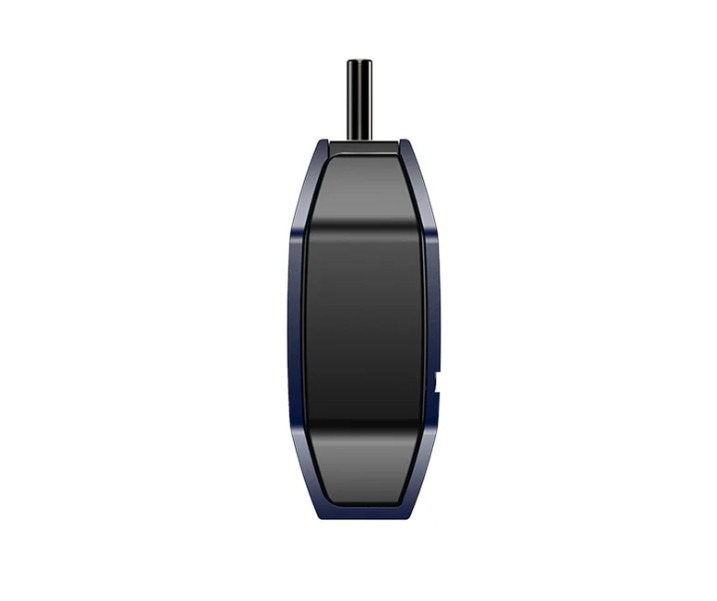

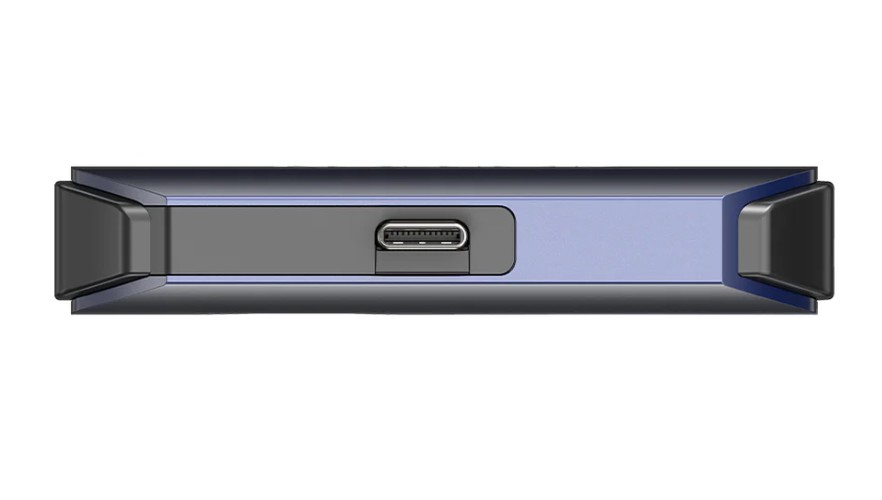

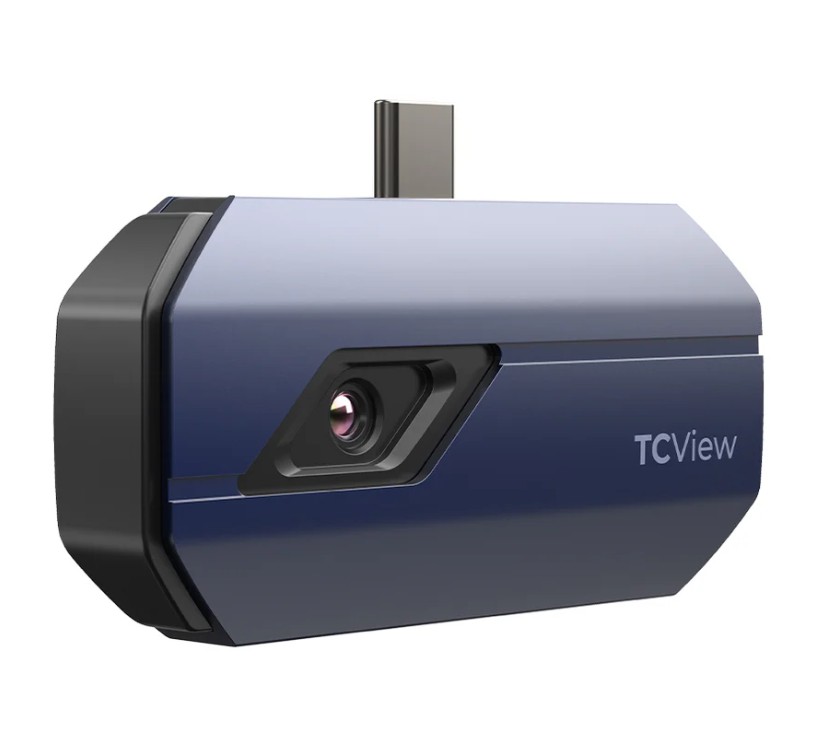

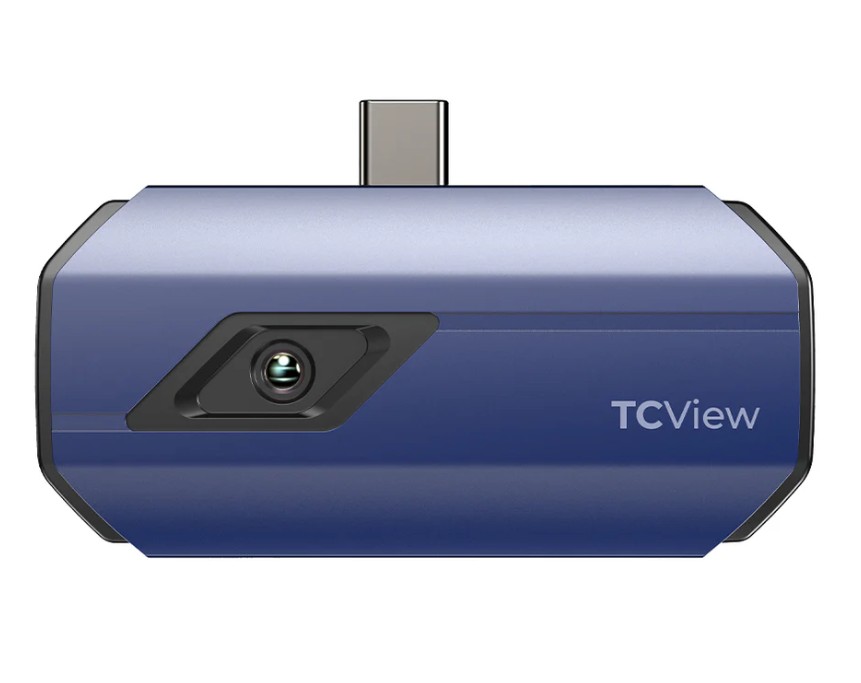

Topdon TOPTC001 | Thermal Imaging Camera for Android Devices 256x192 Resolution
Topdon's TC001 is a portable camera that turns your Android smartphone/tablet or Windows laptop into a powerful thermal imager. Simply download the accompanying app, slot the TC001 in your device’s USB-C port, and unleash thermal technology that formally only belonged to special forces. Perfect for home inspectors, HVAC technicians, electricians, automotive technicians, and even farmers looking to protect crops and livestock.
Topdon - TOPTC001 - Features
- Superior Image Quality
- Built For Compatibility & Mobility
- Optimized Temperature Range & Accuracy
- Discover More with the Thermal Imaging App
- Monitor Temperature Change By Waveform Graph
- Low Power Consumption, Longer Lasting
- Unique Image Enhancement Technology
- More Scenarios For Application
Topdon - TOPTC001 - Specifications
| Order Part Number | TOPTC001 |
| Item Description | Thermal Imaging Camera F/Android Device |
| Product Group Id | TOP00 |
| MS Bin Code | CAGEC13 |
| Default Selling Unit | EA |
| Product Group Desc | Topdon USA |
| Operating System | Android/Windows devices |
| Operating Voltage | 5V |
| Calibration Temperature Measurement Distance | 0.2m~5m |
| Identification Distance | 0.1~50m |
| Recognition Distance | 50~80m |
| Detection Distance | 80~320m |
| Measurement Accuracy | ±2°C or ±2% |
| Infrared Light Resolution | 256x192 |
| Focal Range | 3.2mm |
| FOV | 56°X42° |
| Spectral Range | 8 – 14?m |
| NETD | <40mK |
| Temperature Resolution | 0.1? |
| Frame Rate | 25Hz |
| Measurement Range | -20 to 550 °C (-4 to 1022?) |
| Operating Temperature | -10°C to +50°C |
| Gross Weight (g? | 220 |
