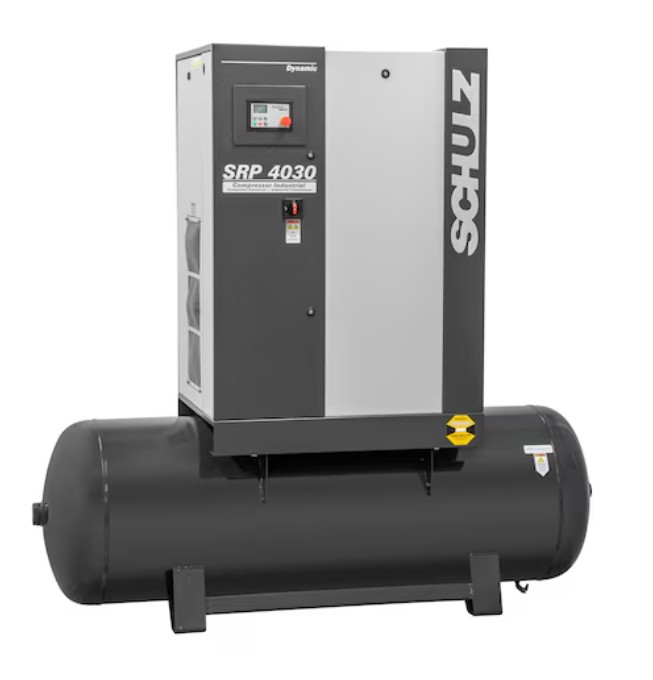

Schulz 970.3907-460 | 30HP / 120 Gallons - 113 CFM - Rotary Screw Compressor 460V Three Phase

The Dynamic Series of Screw Compressors are designed to operate with maximum efficiency and low maintenance cost.. The compressors are tank mounted with cabinet for noise reduction. These itens have fix speed. The operating cycle of these compressors can be adjusted according to the operation pressure of the site, being able to operate continuously load / relief.

Schulz - 970.3907-460 - Features

• Combines technology and experience to generate efficiency and productivity
• Synonymous with versatility for applications requiring high performance
• Tank-mounted design allows for a compact foot print
• Runs your application efficiently 24/7
• 117 CFM @ 125 PSI (125 Max PSI); 100% Duty Cycle
• Oil-injected, belt-driven design for efficient operation
• Provides an efficient and reliable power source
• Automatic starters with phase and sequence failure detection
• Easily adjustable parameters of operation
• Provides constant reading for simple monitoring
• Helps simplify troubleshooting compressor issues
• Reduces noise level to 70 dB(A)
• Can operate in ambient temperatures up to 113 °F,

Schulz - 970.3907-460 - Specifications

SKU	970.3907-460
Model No.	SRP-4030 R DYNAMIC
Brand Name	Schulz
Voltage	460 Volt AC
Phase	3-Phase
dBA	70
HP	30
CFM	117
CFM Rated @	125 PSI
Pump Material	Solid Cast Iron
Max PSI	125 PSI
Pump Type	Rotary
Oil Type	Oil Lubricated
Tank Size	120 Gallons
Tank Orientation	Horizontal
Weight	1187 Pounds
Product Length	58.5 Inches
Product Depth	30.3 Inches
Product Height	39.8 Inches
Power Type	Electric
