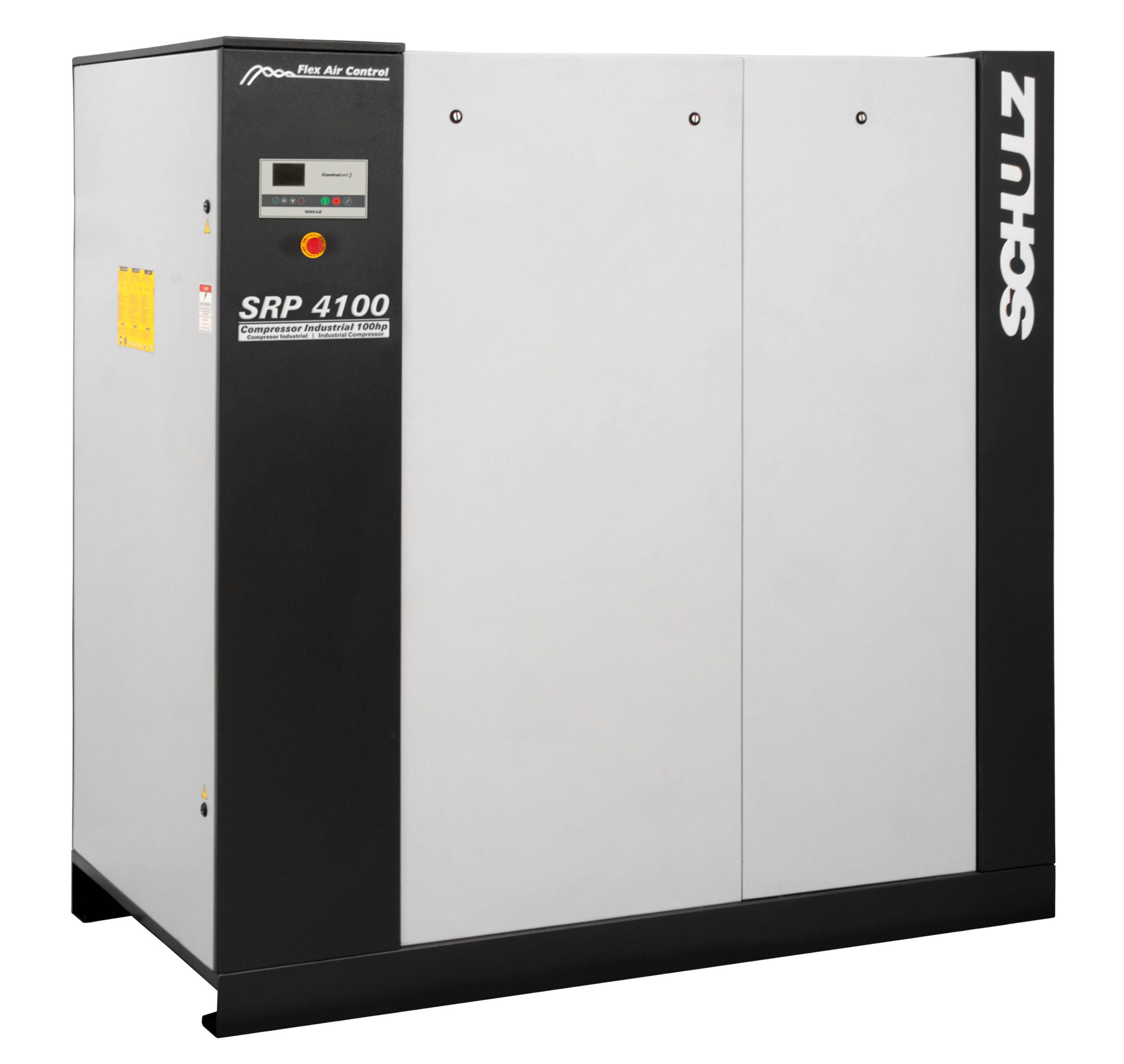

Schulz 970.3798-0/V1 | Gallon Rotary Screw Air Compressor, 385 CFM, 100 HP

The Flex Line, available from 10 to 250 hp, offer a high energy efficiency solution in the generation of compressed air. Flex Line compressors minimize energy consumption up to 38%, reduce pressure variations in the air network while air production is adjusted according to system demand. Models 25 hp and larger are also direct driven for maximum efficiency. Flex Line incorporates the most modern technology available in compressors by operating variable speed controlled by a frequency inverter. A microprocessor controller works with the frequency inverter to monitor compressor operation, signals failures, sequence with other compressors in the compressor room and provides remote or local starting. Designed to operate 24 hours continuous in areas with ambient temperature up to 113 °F, they are equipped with high efficiency, two stage intake filters which provide high quality air to the air end. Flex Line compressors are all enclosed and operate at low noise levels. Choose the SRP 4000 Flex Line Rotary Screw Air Compressor which best meets your needs.

Schulz - 970.3798-0/V1 - Features

• 385 CFM rated at 125 PSI
• 100 HP Electric TEFC motor, 460 Volts, 3 phase
• Microprocessed electronic control panel
• Constant readings
• Adjustable parameters of operation

Schulz - 970.3798-0/V1 - Specifications

SKU	970.3798-0/V1
Model No.	SRP-4100 FLEX
Brand Name	Schulz
Height	78.7
Length	77.2
Weight	3042
Width	43.3
CFM	385
HP	100
Max PSI	125
Power source	Electric
Voltage	460
Phase	3
Style	Rotary Screw Air Compressors
