Schulz 007.0250-0 | FS 0200 201 PCM 1.1/2
Schulz 007.0250-0 | FS 0200 201 PCM 1.1/2' Low Pressure Coalescing Filters
Accept Credit Cards
Official PayPal Seal

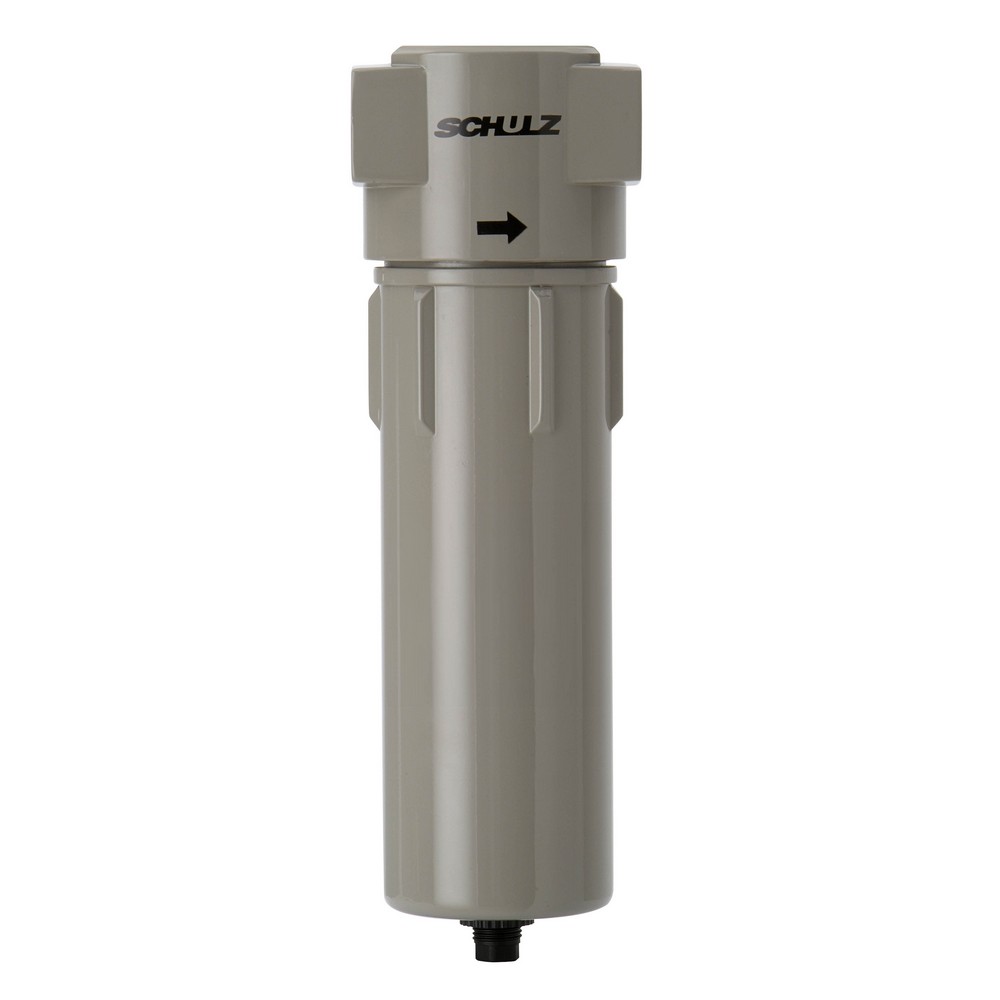

Schulz 007.0250-0 | FS 0200 201 PCM 1.1/2" Low Pressure Coalescing Filters

assets/Schulz/Schulz-150px.jpg
Availability: In Stock
Part Number: SC007.0250-0
0 Review(s)
Write a Review
$415.05
Retail Price:$430.18
Your Savings:$15.13(4%)
  • Low prices.

    Price match guarantee

  • In-House Experts.

    We know our products

  • Easy Returns.

    Quick & Hassle Free

  • Superior Selection.

    Extensive product catalog

Schulz 007.0250-0 | FS 0200 201 PCM 1.1/2" Low Pressure Coalescing Filters

The Low Pressure Line Filters (High Efficiency) withstand up to 16 bar and are indispensable in any compressed air treatment system. Available in the coalescence models of 1 and 0.01 micron and adsorbent of activated carbon, they shall be used together with the dryers. These products reduce the operational and maintenance cost, losses in the process and power consumption, as they ensure the full functioning of the air system in eliminating the contaminants (solid particles, water and oil).




https://www.autotoolworld.com/assets/icons/specs.jpg

Schulz - 007.0250-0 - Specifications

Connection1.1/2" BSP
Maximum Inlet Pressure232 psi - 16 bar
Maximum Inlet Temperature70 °C
Maximum Ambient Temperature45 °C
Particles Retention Capacity1 mícron
Oil Removal Capacity at 20 °C0,100 mg/m³
Initial Nominal Load Loss0,05 bar
Applicationcompressed air
Length of Packaged Product540.00 mm
Width of Packaged Product150.00 mm
Height of Packaged Product130.00 mm
Gross weight4.00 kg
Net Weight4.00 kg



https://www.autotoolworld.com/assets/icons/pdf.jpg

Schulz - 007.0250-0 - Documents and Downloads

Schulz 007.0250-0 CatalogClick to View
