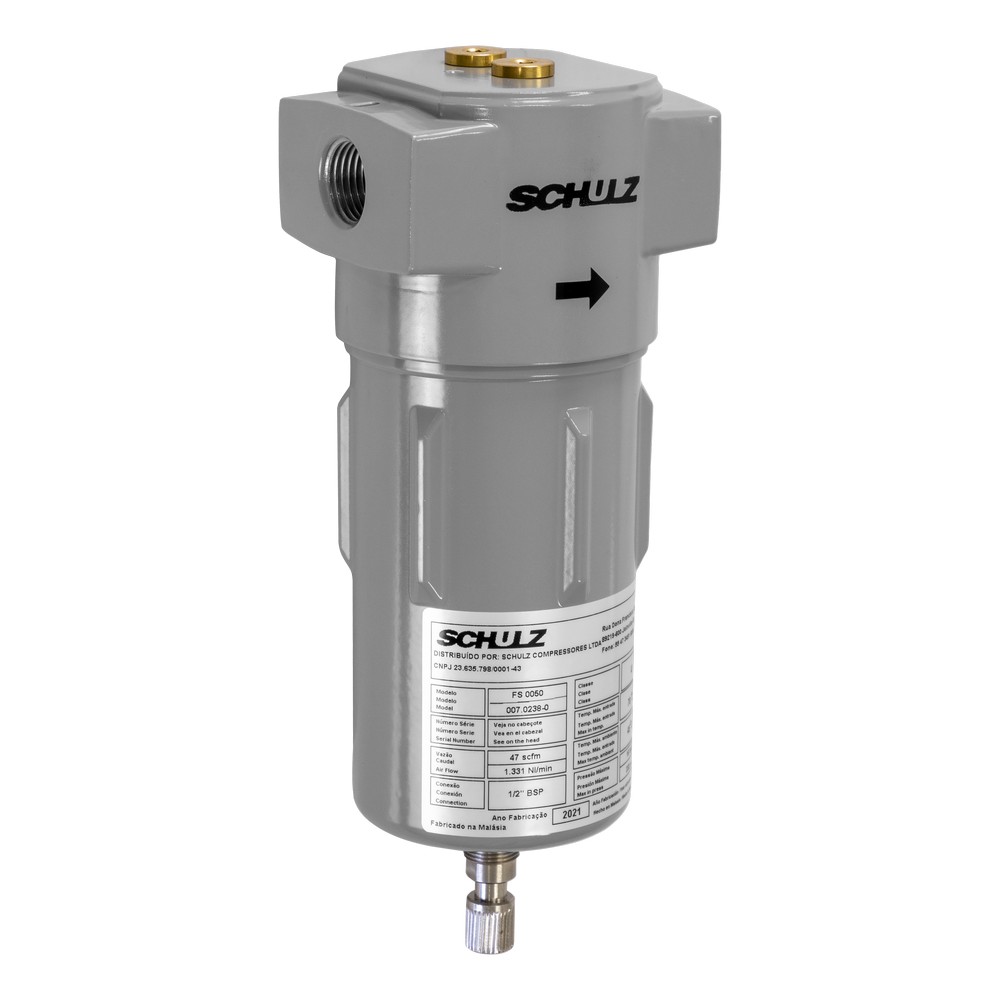

Schulz 007.0238-0 | FS 0050 47 PCM 1/2" Low Pressure Coalescing Filters

The Low Pressure Line Filters (High Efficiency) withstand up to 16 bar and are indispensable in any compressed air treatment system. Available in the coalescence models of 1 and 0.01 micron and adsorbent of activated carbon, they shall be used together with the dryers. These products reduce the operational and maintenance cost, losses in the process and power consumption, as they ensure the full functioning of the air system in eliminating the contaminants (solid particles, water and oil).




https://www.autotoolworld.com/assets/icons/specs.jpg

Schulz - 007.0238-0 - Specifications

LevelPre-Filter (Level U - 1 mícron)
Volumetric Capacity @ 7 bar47 SCFM - 1331 L/min
Connection1/2" BSP
Maximum Inlet Pressure232 psi - 16 bar
Maximum Inlet Temperature70 °C
Maximum Ambient Temperature45 °C
Particles Retention Capacity1 micron
Oil Removal Capacity at 20 °C0,100 mg/m³
Initial Nominal Load Loss0,05 bar
Applicationcompressed air
Length of Packaged Product330.00 mm
Width of Packaged Product100.00 mm
Height of Packaged Product100.00 mm
Gross weight1.32 kg
Net Weight1.09 kg



https://www.autotoolworld.com/assets/icons/pdf.jpg

Schulz - 007.0238-0 - Documents and Downloads

Schulz 007.0238-0 Data SheetClick to View
