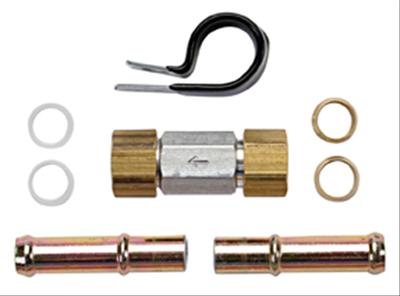

S.U.R. and R CKV7 | 3/8" Check Valve

Check Valves Are Designed To Be Placed Inline On Vehicles With Faulty In-Tank Electric Fuel Pumps. Now There'S No Need To Drop The Tank In Order To Replace The Factory Check Valve In The Fuel Pump. Simply Install One Of These Inline Valves And You'Ll Be Back On The Road In No Time At All.

S.U.R. and R - CKV7 - Features

• The quick, inexpensive, and smart solution for hard-start problems involving the loss of fuel pressure
• Symptoms-Vehicle does not start normally, Key must be advanced multiple times to start. Engine runs properly once running, Symptom reoccurs after vehicle sits for extended period of time
• Problem Electric fuel pumps have internal check valves which often fail, In turn, residual fuel pressure drops and starting problems occur
• Solution-Installing a new inline check valve solves starting problem quickly and easily
• Avoid the labor time and mess associated with dropping the fuel tank
• Install in-line (splice into fuel supply line outside of tank)
• Complete typical repairs in 15 minutes on virtually any vehicle which uses a steel, nylon, or rubber fuel line
• Eliminate the need to replace a costly fuel pump or module
• UNSPSC: 25191700

S.U.R. and R - CKV7 - Additional Information

• Size 3/8 Inch

S.U.R. and R - CKV7 - Specifications

Order Part Number	SRRCKV7
Item Description	"3/8"" Check Valve (1)"
Individual Item Quantity	1 per Pack
Manufacturer Long Name	S.U.R.&R
Manufacturer Part Number	CKV7
Product Group Id	SRR00
Country of Origin	US
Harmonization Code	76090000
Brand	S.U.R.&R.
Manufacturer's Part Number	CKV7
Part Type	Check Valves, Fluid
Product Line	Check Valves
UPC	890453002405
Fitting Size 1	3/8 in.
Fitting Attachment 1	Hose barb
Fitting Size 2	3/8 in.
Fitting Attachment 2	Hose barb
Check Valve Material	Brass
