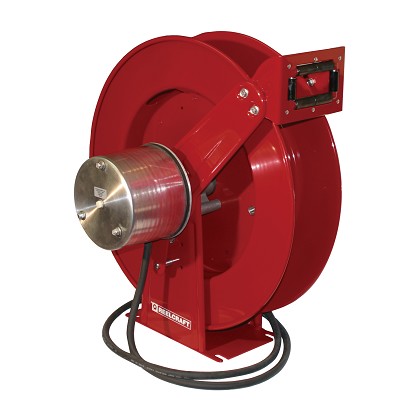

Reelcraft WC80001 | Premium Duty 400 Amp Cable Welding Reel

assets/images/Reelcraft Industries Inc_150px.jpg
Availability: In Stock
Part Number: RLCWC80001
0 Review(s)
Write a Review
$1,376.45
Retail Price:$1,556.00
Your Savings:$179.55(12%)
product-shipping
  • Low prices.

    Price match guarantee

  • In-House Experts.

    We know our products

  • Easy Returns.

    Quick & Hassle Free

  • Superior Selection.

    Extensive product catalog

Reelcraft's Series WC welding cable reels are designed to increase safety in the work area with a resulting increase in efficiency and productivity. They have a continuous current path through a live 400 AMP, 90 V DC (maximum) rated enclosed slip ring.




https://www.autotoolworld.com/assets/icons/features.jpg

Key Features

  • Quality finish and corrosion resistant – Individually powder coated components offer the maximum protection from premature corrosion.
  • Reinforced steel – The robotically welded steel base offers maximum strength and consistent quality.
  • Long life drive spring – Declutching arbor virtually eliminates possibility of spring damage due to reverse winding. Only the highest quality spring steel is used and conditioned to insure there are no imperfections offering maximum service life.
  • Stores cable when not in use, eliminating tangled, kinked welding cables.



https://www.autotoolworld.com/assets/icons/specs.jpg

Specifications

Weight102 lbs
SeriesWC
Amps400
Cable Size #175'
Cable Size 1/075'
Cable Size 2/075'
Cord/Cable IncludedNo
UPC699567002512



https://www.autotoolworld.com/assets/icons/faq.jpg

FAQs

How do I increase or reduce spring tension?To increase spring tension:

Adding wraps of hose will increase spring tension. This can be accomplished by pulling out approximately 10 feet of hose, hand feed hose back up through roller bracket assembly until loop is large enough to slip over sheave. Add two or three wraps until desired tension is achieved. Do not exceed spring capacity.’

To reduce spring tension:

This can be accomplished by removing wraps of hose from the reel sheave. Remove wraps of hose from the sheave, one wrap at a time, until desired tension is obtained.

For Series D9000 reels, you will have to remove the bumper and control handle then feed the end of the hose through the roller bracket assembly to add or remove wraps of hose from the reel drum.

Can my spring driven reel be made "constant tension"?

While most Reelcraft spring retractable reels can be made “constant tension” at the factory or by simply removing the latching system there are some models that may not have this capability.

Please contact Reelcraft Customer Service to assure that the specific reel you have or require is capable of or available as a “constant tension” model.

How do I install a new drive spring and set pre-turns?We have several different types of spring driven reels. Each require a slightly different set of instructions. For “How-To” instructions on replacing a drive spring please have your reel model or drive spring number available and consult customer service for instructions.
What if the hose or cord does not retract?Insufficient spring tension

Adjust spring tension by adding wraps of hose. Pull out approximately 10 feet of hose. Hand feed hose back up through roller bracket assembly until loop is large enough to slip over sheave. Add two or three wraps until desired tension is achieved. Do not exceed spring capacity.

Hose / cord reel mounted on ceiling above 16 feet

Must special order heavier gauge spring steel for drive spring to overcome weight of hose / cord extending from reel. Control handle weight must also be considered. Contact Reelcraft for further information.

Latch mechanism engaged with drive spring coiled to solid height

U-bolt hose clamps on sheave assembly not positioned correctly.

Hose / cord fully extended will not retract

Latch mechanism engaged with drive spring is coiled to solid height. U-bolt hose clamps on sheave assembly are not positioned correctly.

Product supply to reel, rigid, plumbed in

If flexible connecting hose is not used between hose reel inlet and hard plumbing, you stand the chance of causing excessive bind to main shaft and hub bearings causing reel not to retract. This also voids warranty.

Reel mounted on uneven surface

Bolting the reel down to an uneven surface will distort side frame causing a bind on main support shafts restricting smooth retraction of hose.

Wrong guide arm position

If guide arm is in side wind position for ceiling mounted reels, hose / cord is bending at a 90° angle over roller bracket assembly causing excessive loss of spring tension. Adjust guide arm to coincide with how hose / cord reel is actually mounted. U-bolt clamps may need to be adjusted accordingly.

Broken main spring, broken spring arbor, corrosion on shaft and hub

Replace broken part with new. For corrosion: disassemble reel and remove corrosion, lubricate and reassemble.

What to do if the reel does not latch?This could mean it has a broken latch spring, bent latch pawl or latch plate. The broken part(s) will need to be replaced.



https://www.autotoolworld.com/assets/icons/video.jpg

Videos

How to install a spring driven reelClick to View
How to replace the latch springClick to View
How to change a guide armClick to View
How to adjust spring tensionClick to View
How to position the guide armClick to View
What to do if the reel does not latch?Click to View



https://www.autotoolworld.com/assets/icons/applications.jpg

Parts/Accessories

600801 - 340° Pivot BaseClick to View
600980 - Wall Mounted Universal Swing BracketClick to View
