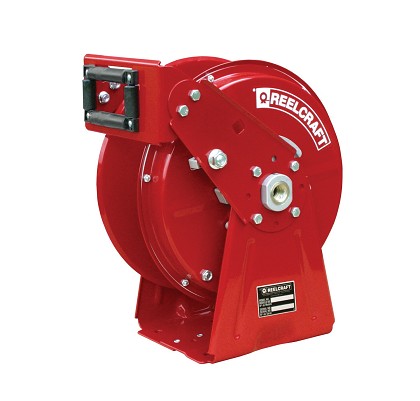

Reelcraft DP5400 OLP | 1/4 in. x 50 ft. Ultimate Duty Dual Pedestal Hose Reel

The Reelcraft Series DP5000 compact, dual pedestal hose reel features an innovative, non-welded, interlocking base. Independent testing to military standards has proven the reel stand up to heavy vibration, which makes them especially strong and ideal for truck-mounted applications. The all-steel construction and a baked-on powder coat finish combine to produce a rugged corrosion-resistant product suitable for a wide variety of heavy-duty applications.

Reelcraft - DP5400 OLP - Features

• Reinforced steel – Steel guide arm and dual pedestal base are stamped with ribs and gussets to ensure maximum strength and lightest possible weight. The interlocking base eliminated the need for welds increasing the strength while utilizing fewer parts.
• Superior latch spring design – The life of the torsion style latch spring far exceeds that of conventional coil springs.
• Long life drive spring – Declutching arbor eliminates reverse spring winding, and torsion latch spring is virtually unbreakable. High-quality spring steel is used and conditioned to ensure there are no imperfections offering maximum service life.
• A double adhesive gasket seals the spring case.
• The latch pawl is mounted on the guide arm to prevent latch out at full extension.
• Made in the USA

Reelcraft - DP5400 OLP - Specifications

Weight	29 lbs
Series	DP5000
Hose I.D.	1/4"
Hose O.D.	0.475"
Hose Length	50'
Pressure	500 psi
Inlet	1/2" NPT(F)
Reel Outlet	3/8" NPT(F)
Hose Included	No
Max Temperature	210 °F
UPC	699567007265
Carton Dimensions	18.5" x 10" x 19.5"
