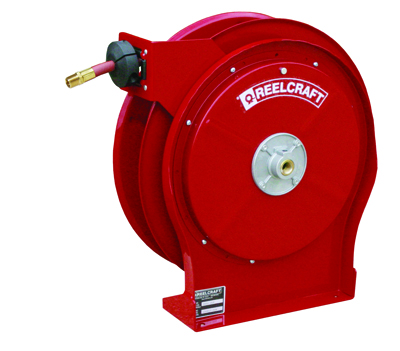

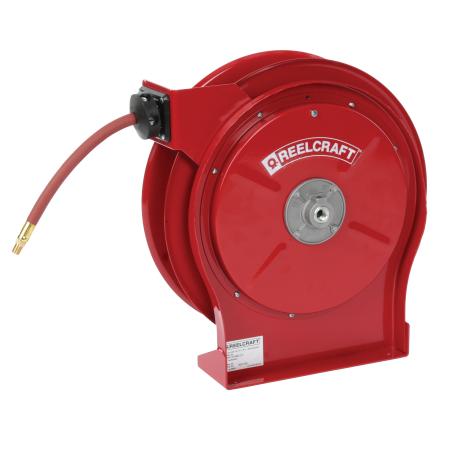

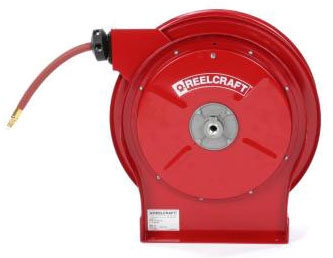

Reelcraft A5850OLP | 1/2 in. x 50 ft. Premium Duty Hose Reel

Series 4000, 5000, and 5005 reels are all-steel construction and compact for a wide range of applications with critical space requirements. A full flow shaft and swivel assures maximum product delivery. Guide arm adjusts to two positions.

Reelcraft Industries - A5850OLP - Features

• Reinforced steel The robotically welded steel base offers maximum strength and consistent quality
• All steel components are powder coated for maximum corrosion resistance
• Full flow stress free swivel design The full flow swivel combines the highest grade seal design and materials with bearing areas to insure maximum service life
• The hose is plumbed into the base to eliminate the risk of undue stress on the swivel
• Quiet speed latch The latch cam is designed for reliable quiet operation

Reelcraft Industries - A5850OLP - Additional Information

• Spring Retractable Hose Reel
• Item Spring Retractable Hose Reel
• Hose Reel Type Compact, Versatile, Premium Duty
• Hose Size 1/2 Inch Inner Diameter x 0.75 Inch Outer Diameter
• Hose Length 50 Foot
• Height 17-5/8 Inch
• Width 16-3/4 Inch
• End Connection 3/8 Inch Female Threaded x 1/2 Inch Male Threaded
• Pressure Rating 300 PSI
• Maximum Temperature Rating 150 Deg F
• Service Air
• Material Steel (Shaft)
• Includes Quiet Latch Hose

Reelcraft Industries - A5850OLP - Specifications

Order Part Number	RLCA5850OLP
Item Description	Reelcraft A5850OLP | 1/2 in. x 50 ft. Premium Duty Hose Reel
Manufacturer Long Name	Madison Industries (Reelcraft Industries)
Manufacturer Part Number	A5850-OLP
UPC	700000000000
Product Group Id	RLC00
MS Bin Code	Default
Default Selling Unit	EA
UPC	699567001119

Reelcraft Industries - A5850OLP - Package Information

Shipping Weight

41.000 Pound

Reelcraft Industries - A5850OLP - Documents and Downloads

Reelcraft Industries A5850OLP Additional Specification Sheet	Click to View
Reelcraft Industries A5850OLP Catalog Pages(s)	Click to View
Reelcraft Industries A5850OLP Installation Instructions	Click to View
