Rapid Air 55293 | Air Outlet Kit M3810

Use with the MAXLINE Tubing System

Rapid Air - 55293 - Product Categories

• Shop Equipment
• Air & Management
• Air Lines, Hoses & Reels

Rapid Air -55293 - Overview

• Rapid Air M3810 Air Tubing Outlets

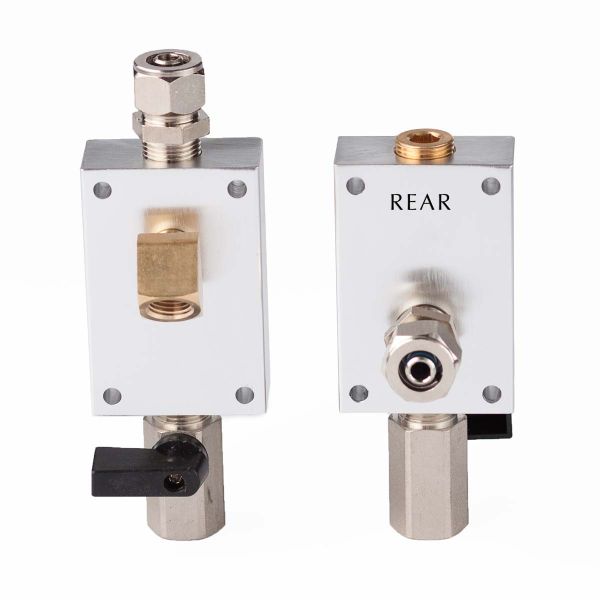

• When you're setting up your Maxline Air Kit, you'll need a way to dispense that compressed air. A Rapid Air ½-inch air outlet is a safe and reliable way to get your tools aired up. The aluminum block outlet has a ½-inch MaxLine tubing inlet and a ¼-inch NPT female outlet for your air hose. A drain valve, brass plug and brass elbow ensure leak-free air with no condensation build-up. The assembly can be surface-mounted or installed inside the wall to set up "air stations" throughout the shop.
• Compressed air is always close by when you have high-quality outlet blocks. These are the same outlets that come with the
• MaxLine air compressor line kit
• . Order them as a replacement or if you want even more air stations beyond what the master Rapid Air kit is equipped for. They have a one-year manufacturer's warranty to Do the Job Right. Eastwood also offers 90-day returns and lifetime tech support.
• Features:
• Compressed air outlet
• Made for use with ½-inch MaxLine tubing
• ¼-inch female NPT outlet
• Rustproof aluminum block
• 1-year manufacturer's warranty

Rapid Air - 55293 - Package Contents

• 90120 – Aluminum Block
• 50120 – Drain Valve
• 50135 – Brass Plug
• 50130 – 45 Degree Brass Elbow
• M8001 – 1/2? Tubing Adaptor

Rapid Air - 55293 - General Specifications

Brand Name	Rapid Air
Manufacturer Part Number	55293
Item Description	Air Outlet Kit M3810
Net Weight	1.02
Height	10
Width	6
Depth	1

Rapid Air - 55293 - Warranty

Warranty

1-Year Manufacturer
