Rapid Air 55286 | 3/4 In. Cooling Kit - 30 Ft. F28072

Easy to install, versatile solution to eliminate excess moisture in an air system

Rapid Air - 55286 - Product Categories

• Shop Equipment
• Air & Management
• Air Lines, Hoses & Reels

Rapid Air -55286 - Overview

• Rapid Air ¾" Compressed Air Cooling Loop
• The Fastpipe F28072 Cooling Kit is an affordable and natural way to ensure your air system performs its best. When the air going through your tubing is cooler and drier, the equipment can handle a higher PSI, letting you get more done. Four sections of Rapid Air ¾" Fastpipe are connected using the elbows and reducing tees, creating a 27-foot cooling loop. As the hot air travels through the loop, it cools down, which also condenses the water vapor. This condensation drains through the ball valves. The rectangular shape makes draining easier and saves wall space.
• A Fastpipe ¾-Inch Cooling Air Compressor Hose Kit improves your compressed air quality while costing far less than an aftercooler or power air dryer. All hardware and special tools needed for installation are included in this package. Eastwood backs it with a 100% customer satisfaction guarantee and lifetime expert tech support.

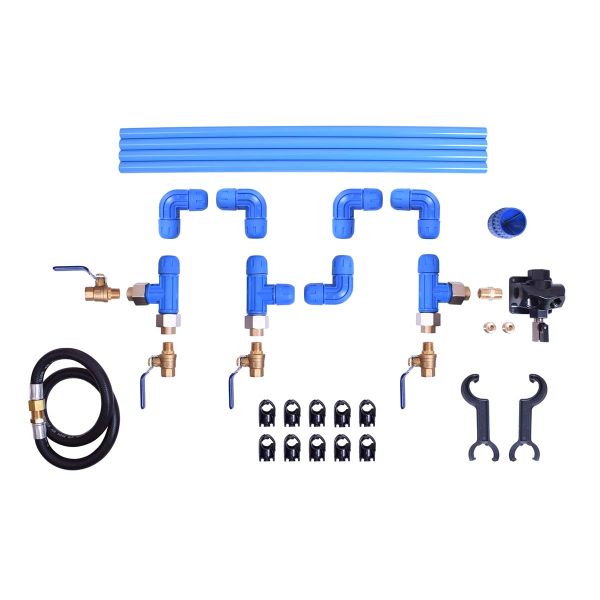

Rapid Air - 55286 - Package Contents

• F28072 PARTS LIST – 3/4? FASTPIPE
• QTY:4 F1863 3/4? X 7’6? PIPE
• QTY:5 F1003 3/4? FASTPIPE ELBOWS
• QTY:3 F1009 3/4? FASTPIPE REDUCING TEE x 1/2? FNPT
• QTY:2 F3400 3/4? FASTPIPE LARGE HEX NUT
• QTY:2 F3411 3/4? FASTPIPE INSERT GASKET
• QTY:2 F3450 3/4? FASTPIPE BRASS INSERT x 1/2? FNPT
• QTY:4 K35050M 1/2? NPT MALE X FEMALE BRASS BALL VALVE
• QTY:1 50616 1/2? NPT BRASS HEX NIPPLE
• QTY:1 F2024 WALL OUTLET w 1/2? FNPT INLET
• QTY:1 F0142 DEBURR TOOL
• QTY:2 F1020 3/4? SPANNER WRENCH
• QTY:1 F1022-10 3/4? FASTPIPE WALL CLIPS (10 PACK)
• QTY:1 F0213 1/2? x 3FT COMPRESSOR JUMPER HOSE

Rapid Air - 55286 - Features

• Cools compressed air while condensing and draining moisture
• Contains 30 feet of ¾-inch Fastpipe
• Also includes fittings, valves, wall clips and more
• Max working pressure of 190 PSI
• Temperature range of 0-140 degrees
• 1-year manufacturer's warranty

Rapid Air - 55286 - General Specifications

Brand Name	Rapid Air
Manufacturer Part Number	55286
Item Description	3/4 In. Cooling Kit - 30 Ft. F28072
Net Weight	17.0
Height	93
Width	5
Depth	7

Rapid Air - 55286 - Warranty

Warranty

1-Year Manufacturer
