Power Probe PPKIT03S | Electrical Test Kit, PP3, ECT2000 & Leads

The Power Probe 3 Master Combo Kit combines the Power Probe 3, PPECT3000 and various accessories to provide the ultimate combination of diagnostic and circuit testing capabilities. The Power Probe 3 provides simplified testing of Motors, Lights, Relays, Sensors, as well as supplying Power and Ground for functional component testing on or off the vehicle. The PPECT3000 will help you trace short and open circuits quickly and accurately.

Power Probe - RPPKIT03S - Features

• The Power Probe 3 Master Combo Kit combines the Power Probe 3, PPECT3000 and various accessories to provide the ultimate combination of diagnostic and circuit testing capabilities
• The Power Probe 3 provides simplified testing of Motors, Lights, Relays, Sensors, as well as supplying Power and Ground for functional component testing on or off the vehicle
• The PPECT3000 will help you trace short and open circuits quickly and accurately
• DC 0 to +70V +1 Digit
• P-P 0 to +70V
• The frequency response of tone pass through - 10Hz to greater than 10 kHz
• PP Display - 15 Hz Square Wave, 35 Hz Sine Wave
• Power Probe Mode Continuity to ground
• First level Display is enabled less than 20 Kilo Ohm
• The second level Green LED is enabled less than 600 Ohm
• and +Peak Detector Response
• Single event capture less than 200ms pulse width
• Repetitive events less than 1ms pulse width
• Peak to Peak Mode - 0 to + 70 + 1 Digit
• 4Hz to over 500kHz Square Wave input
• 4Hz to over 250kHz Sine Wave input
• The threshold for PPAC/Audible passthrough
• Circuit Breaker 8 amp thermal response Manual reset
• Power up components
• Audible monitoring of electrical signals
• Voltmeter 12 to 24 Volt range
• Bad ground indicator
• Continuity tester
• Relay and component tester
• Trace short and open circuit
• Cigarette Lighter Adapter
• DC Voltmeter Indicators provide active feedback
• Locate short circuits without removing plastic panels, molding, and carpet. Find short to ground circuits, switches, or breaks in wires. Test and find intermittent conditions. Sensitivity adjustment from 1-8 in (3-20 cm). Trace short to ground wires with visual navigation & sound indicators. Works on Cars, Boats, RV’s, Light Duty, Heavy Duty Trucks, and Trailers.
• LED Lights
• Bad Ground –Indicator
• Short Circuit Indicator
• Relay and Component Tester
• Audible Monitoring of Electrical Signals

Power Probe - RPPKIT03S - Additional Information

• Master Combo Kit
• Item Master Combo Kit
• Voltage Rating 12 to 24 Volt

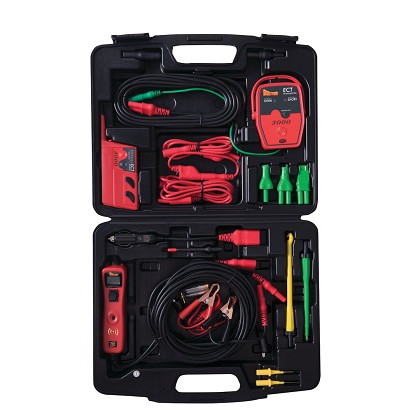

• Kit Contents (1) Power Probe 3, (1) Power Probe Tip, (1) Battery Clip Set, (1) Cigarette Lighter Adapter, (1) 20 Foot Extension, (1) Large Piercing Probe, (1) Small Piercing Probe, (1) 4 Millimeter Male/Male Adapter, (1) 4 Millimeter Female/Female Adapter, (1) 1 Foot Lead, (1) 3 Foot Lead, (1) 6 Foot Lead, (3) Light Bulb Adapter, (1) Universal Adapter, (1) Alligator Clip Adapter, (1) Blade Probe Adapter, (1) Back Probe Adapter, (1) ECT3000 Transmitter, (1) ECT3000 Receiver, (1) AAA Battery

Power Probe - RPPKIT03S - Specifications

Order Part Number	PPRPPKIT03S
Item Description	"Electricl Test Kit; Pp3,Ect2000 & Leads"
Manufacturer Long Name	Power Probe Tek
Manufacturer Part Number	PPKIT03S
Product Group Id	PPR00
MS Bin Code	AA044
Default Selling Unit	KIT
UNSPSC	25191800
Frequency response of tone pass through	10Hz to greater than 10 Khz
PP display	15Hz Square Wave, 35Hz Sine Wave
