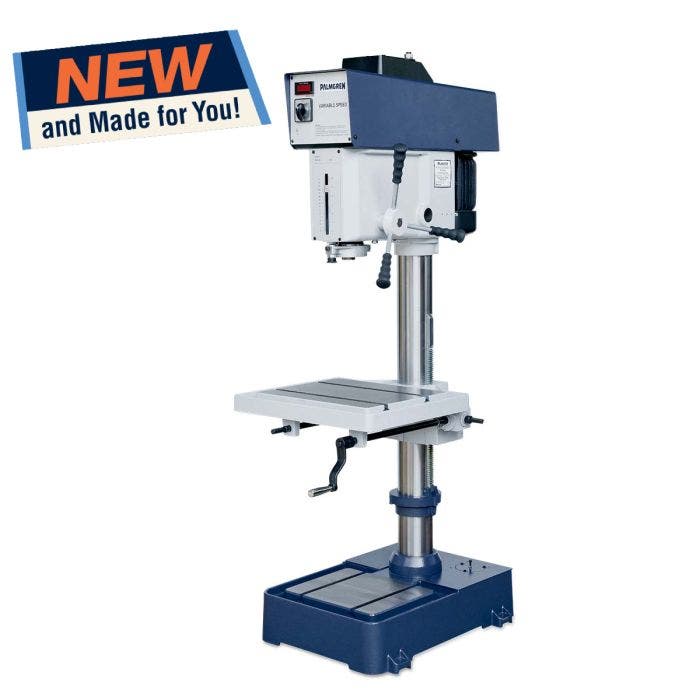

Palmgren 9680227 | 20 In Variable Speed Belt Drive Drill Press 230/460V Three Phase

Palmgren’s 20” Variable Speed Drill Presses allow the user to dial into the optimal spindle RPM for any material or tooling combination. While the machine is running, the simple hand wheel adjustments and digital RPM readout makes speed changes a breeze. The heavy-duty cast-iron construction increases the machines’ accuracy and rigidity in any drilling application.




https://www.autotoolworld.com/assets/icons/features.jpg

Palmgren - 9680227 - Features

  • Expected Ship Date - Early-December
  • Front mounted positive control depth stop, oversized head construction provides for an extended quill travel of 4-1/2”
  • Large, ergonomic down feed hand grips designed for end user comfort during operation
  • Oversized 3” quill diameter
  • Front face LED spindle speed readout
  • Worktable can rotate 360° around the machine column
  • Precision ground base work surface with t-slots for large workpieces
  • Side mounted hand wheel for instant speed changes



https://www.autotoolworld.com/assets/icons/specs.jpg

Palmgren - 9680227 - Specifications

Column Diameter4-1/2"
Country of OriginTW
Drilling Capacity in Cast Iron1-1/2"
Drill Press ModelFloor Model
Drill Press TypeVariable Speed
Max. Spindle To Base47"
Max. Spindle to Table27"
Motor HP2
Overall Dimensions (LxWxH)36" x 27" x 78"
PhaseThree
Quill Diameter3"
Speed Range300 - 2,000 RPM
Spindle TaperMT3
Spindle Travel6"
Stand work surface (LxW)22" x 18.5"
Swing20.8"
Voltage230/460V
Warranty3 Year
Working surface base L x W27" x 19"
UPC726896802275
Unit of MeasureEA
Product Height (in)75
Product Length (in)37.5
Product Width (in)25.5
Product Weight (lbs)750



https://www.autotoolworld.com/assets/icons/pdf.jpg

Palmgren - 9680227 - Documents and Downloads

Palmgren 9680227 ManualClick to View
