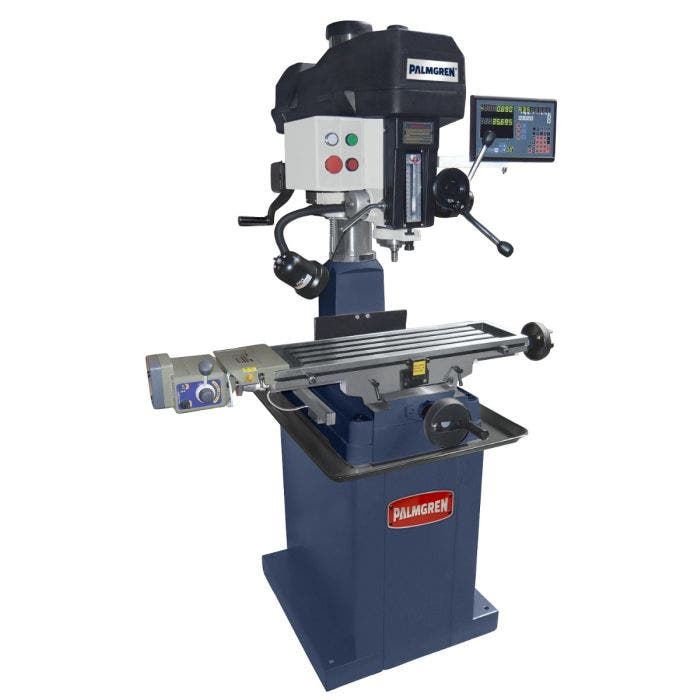

Palmgren 9680114 | 16 Inch 1-1/2HP Deluxe Mill/Drill

The all gear drive transmission delivers full power at any speed driving the cutting tools at nearly 100% of the available motor horsepower and torque. This Palmgren mill comes as a complete deluxe package with machine, storage cabinet, DRO, spindle, head and table power feed, tool storage, and numerous digital readouts. Equipped with a high performance brushless DC motor with permanent current control and the latest technology variable speed inverter. This all-purpose mill is ideal for milling, drilling, slotting, engraving, boring, tapping and angle machining operations in all types and sizes of shops.

Palmgren - 9680114 - Features

• Rigid box column with hardened, ground and hand-scrapped dovetail ways provide accurate head positioning with minimum deflection
• Power “Z” axis head position
• Precision machine tool R-8 spindle with taper roller bearings and spindle concentricity of .0005" at the spindle nose
• Electro-magnetic spindle power down feed engaged by push buttons located in the three spoke hand feed lever
• Precision ground t-slotted cross slide table with adjustable limit stops, large hand wheels and "Xƒ"axis table power feed
• Head angles up to 45 degrees and comes with a LED tilting angle display
• Variable speed with digital spindle speed display
• Digital depth gauge display
• Manual dial fine feed mechanism for accurate down feed movement of the spindle with 3 Axis DRO with reference point, calculator, absolute/incremental operation, conversion inch/metric, pitch circle calculator, full & partial circles and linear patterns, bolt hole pattern function, reversable measured values radius/ diameter and glass scales
• Automatic tapping cycle
• Spindle safety guard
• Draw bar and way covers
• R-8 spindle tooling storage tray mounted to the side of the machine for easy access
• Work light
• Heavy duty steel floor stand cabinet with easy access door and drawer for added storage and stability

Palmgren - 9680114 - Specifications

Country of Origin	TW
Milling Machines Type	Gear Head
Warranty	3 Year
UPC	726896801148
Unit of Measure	Each
Product Height (in)	57
Product Length (in)	38
Product Width (in)	30
Product Weight (lbs)	700
