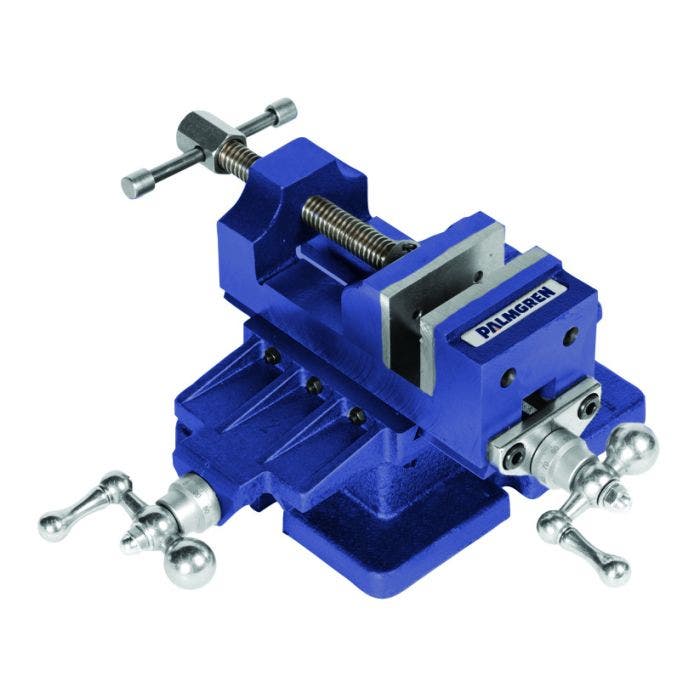

Palmgren 9630301 | 3" Cross Vise
This unit accurately moves the work in two directions along the X and Y axis. This is idea for positioning form one machine location to another without losing squareness or alignment. The cross slide vise gets its strength from the 30,000PSI tensile strength fine grain cast iron it's made from. This USA made vise comes with a lifetime guarantee.
Palmgren - 9630301 - Features
- Built on the same cross-slide base as our cross-slide tables
- Feed screws are precision cut acme threads
- Dials are graduated in 0.001 in increments
- Counter-balance steel ball crank handles that clear the machine table
- Easily convert from a cross slide vise to a traditional vise by simply removing the screws and the base
- 70% discount while supplies last
Palmgren - 9630301 - Specifications
| Application | Drilling |
| Country of Origin | TW |
| Cross Slide Travel | 4" x 4" |
| Drill Press Vise Type | Cross slide |
| Jaw Deflection | 0.002" @ 2000 lbs. |
| Jaw Opening | 3" |
| Jaw Type | Grooved |
| Jaw Width | 3" |
| Model Number | 32 |
| Throat Capacity | 1-3/4" |
| Vise Height | 5-1/2" |
| Vise Jaw Material | Steel |
| Vise Material | Iron |
| Vise Type | Drill Press |
| Warranty | Limited Lifetime |
| UPC | 726896303017 |
| Unit of Measure | Each |
| Product Height (in) | 6.25 |
| Product Length (in) | 14.25 |
| Product Width (in) | 14.25 |
| Product Weight (lbs) | 29.1 |
