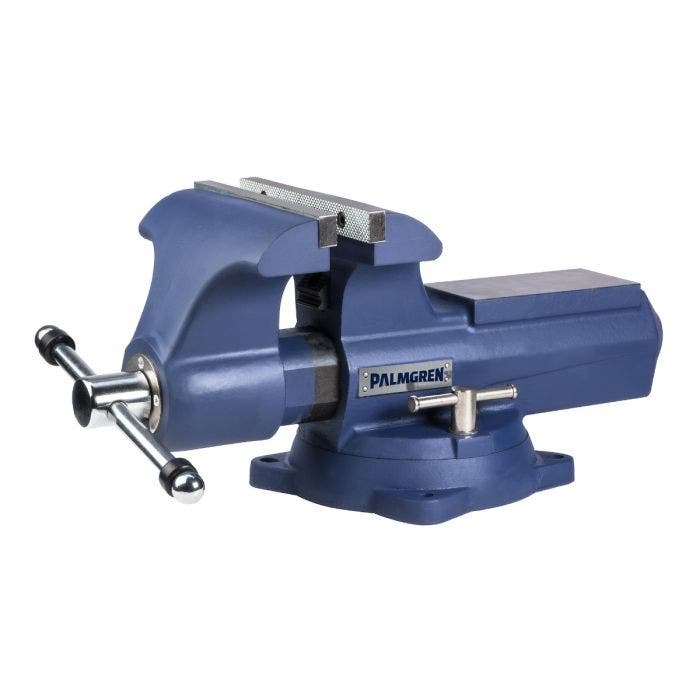

Palmgren 9629755 | 5.5" Combination Bench & Pipe Vise

The Palmgren 5.5 -in Combination Bench & Pipe Vise houses a super strong power tunnel with straight-line pull that assures a lifetime spindle and nut never to wear out. A precision fit of the slide bar eliminates side play and jaw wobble even when clamping with the jaws wide open. The vise spindle and nut are totally enclosed in a square tube casting that protects them from dust, chips and moisture, keeping them lubricated for life.

Palmgren - 9629755 - Features

• Straight line power tunnel design - unbreakable spindle & nut with increased clamping power
• Enclosed construction keeps lubrication in & contaminants out, making it ideal for both indoor & outdoor use
• Hardened replaceable steel jaw inserts ensures positive hold
• Hardened replaceable steel self-centering pipe jaws hold round materials securely
• Extra deep throat gives you more working room where it counts
• Precision slide bar machined for a .002" fit
• Oversized machined anvil provides structural integrity and consistent properties of toughness and hardness for greater working area
• ULTRA STRONG, the entire vise is made of 65,000 PSI ductile iron - coupled with our exclusive manufacturing process of the body and nut – delivers a vise that is 50% stronger than all gray iron vises and 20% stronger than competitive ductile iron vises
• Locking swivel base with 360 degree rotation enhanced by double lockdowns for non-slip hold in any position
• Read our blog for more information

Palmgren - 9629755 - Specifications

Anvil Length x Width	3-1/2" x 5-3/4"
Bench Vise Type	Combination Pipe and Bench
Country of Origin	TW
Jaw Opening	8-1/2"
Jaw Type	Replaceable
Jaw Width	5-1/2"
Material	Ductile Iron
Max. Jaw Opening	5.75 in
Mounting Hole	.5 in
Overall Dimensions (LxWxH)	16" x 10" x 10"
Pipe Jaw Capacities	1/4" – 3-1/2"
Throat Capacity	3.75 "
Vise Material	Ductile
Vise Type	Bench Vises
Warranty	Limited Lifetime
UPC	726896297552
Product Height (in)	11.5
Product Length (in)	18
Product Width (in)	11
Product Weight (lbs)	55
