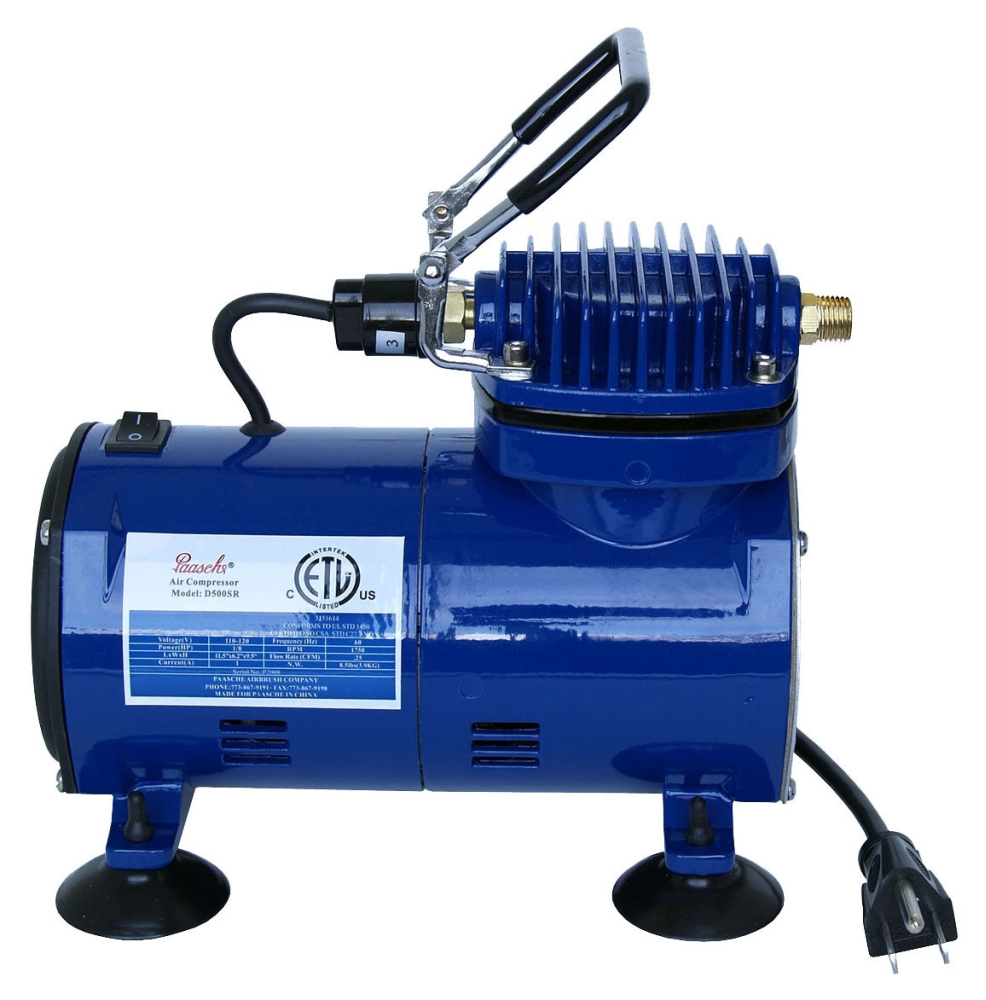

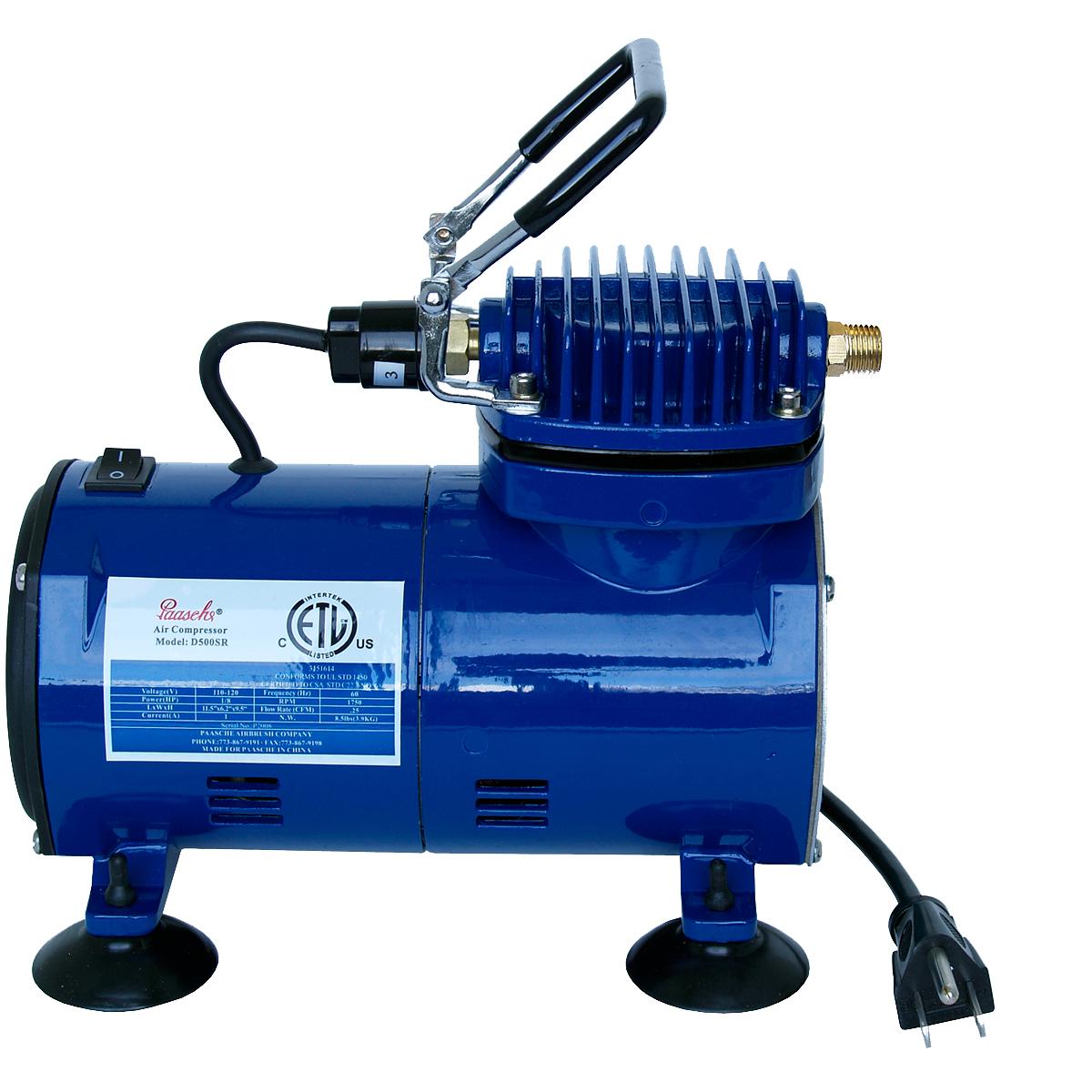

Paasche Airbrush D500 | Air Compressor

Features 2.6 C.F.M. (free air). Economical and suitable for all airbrushes spraying properly thinned fluids. It is capable of delivering up to 40 lbs of pressure. The Paasche D500 is an oil-less diaphragm unit and comes with a grounded 3 wire cord. For operation of one airbrush at a time.

The D500 airbrush compressor is perfect for any hobby or artist airbrush. The maximum operating pressure will be about 35 PSI depending on airbrush being used. The D500 is light wait and easily mobile and best of all quiet. The auto shutoff feature turn the compressor off when the airbrush is not being triggered to increase compressor life. Included with the compressor is a 1/8"BPS adapter for competitor hoses.

Paasche Airbrush - D500 - Features

• Delivers up to 35 PSI depending on airbrush being used
• 1/8 BPS hose adaptor for competitor hoses
• Carrying handle

Paasche Airbrush - D500 - Additional Information

• Power Rating 1/5 HP
• Voltage Rating 110 Volt 60 Hertz
• Operating Pressure Rating 0 to 35 PSI
• Noise Level 47 Decibel
• Includes Auto Shutoff
• Applicable Standard ETL, CE

Paasche Airbrush - D500 - Specifications

Order Part Number	PBD500
Item Desc	Air Compressor
Manufacturer Long Name	Paasche Air Brush Company
Manufacturer Part Number	D500
Product Group Id	PB00
Country of Origin	CN
Harmonization Code	84148000
MS Bin Code	AE187
UNSPSC	31211900

Paasche Airbrush - D500 - Documents and Downloads

Paasche Airbrush D500 Catalog Pages	Click to View
Paasche Airbrush D500 Installation Instructions	Click to View
