OTC-Bosch Automotive 4794 | Safety Wire Drill Guide Set, Sae & Metric Set

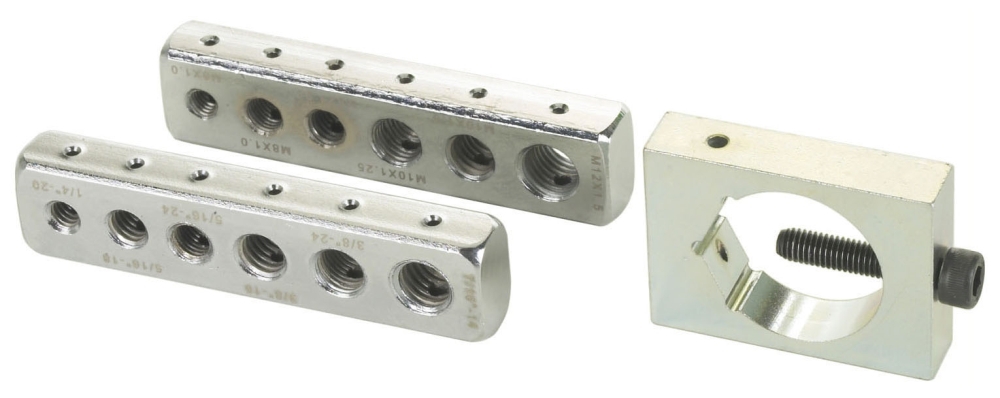

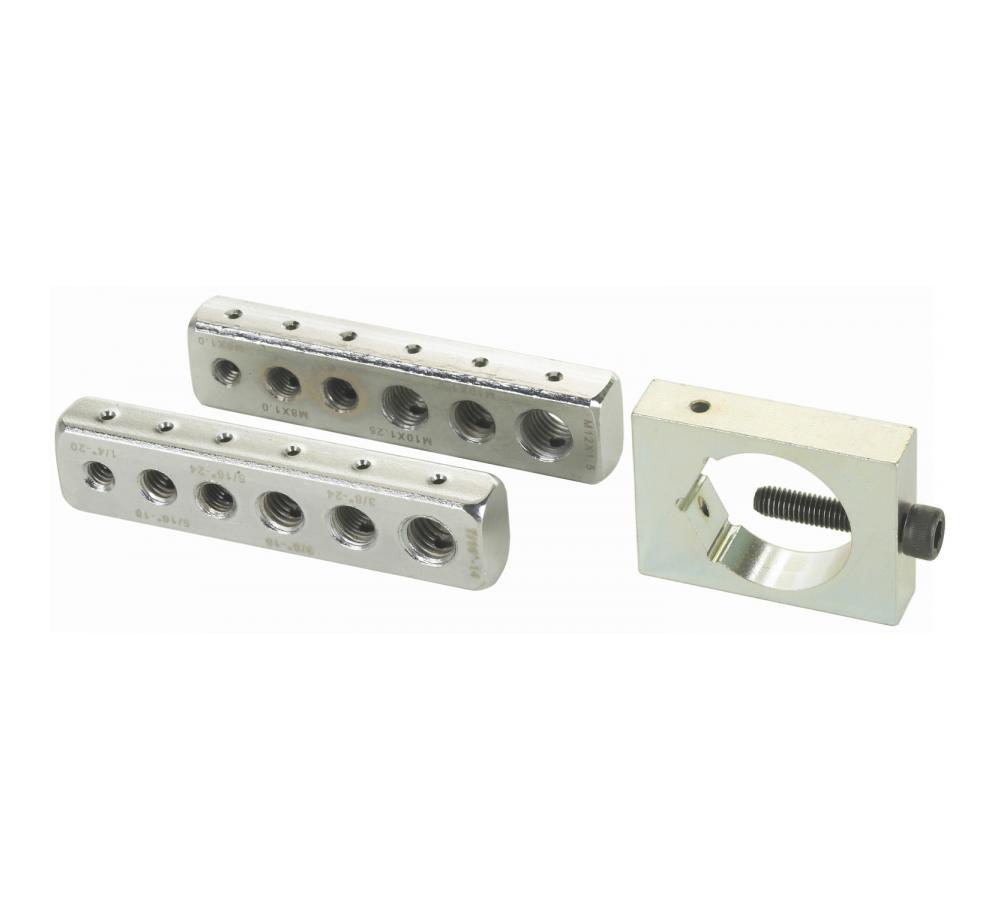

Here is the perfect way to drill nuts and bolts for use with safety wire without breaking the drill bit. These guide, align, and support the hex head or the bolt threads. The hex fixture fits nuts and bolt heads up to 15/16" (24mm). The SAE fixture bar is threaded for 1/4"-20, 5/16"-18, 5/16"-24, 3/8"- 18, 3/8"-24, 7/16"-14 bolts, and the Metric fixture bar covers M6x1.0mm, M8x1.0, M8x1.25mm, M10x1.25mm, M10x1.5mm, M12x1.5mm sizes.

OTC-Bosch Automotive - 4794 - Features

• Here is the Perfect Way to Drill Nuts and Bolts for Use with Safety Wire without Breaking the Drill Bit
• These Guide, Align and Support the Hex Head or the Bolt Threads
• The Hex Fixture Fits Nuts and Bolt Heads

OTC-Bosch Automotive - 4794 - Overview

• Categories:
• Specialty Tools
• General Purpose
• Motorcycle

OTC-Bosch Automotive - 4794 - Additional Information

• Safety Wire Drill Guide Set
• Type Safety Wire Drill Guide Set, SAE/Metric
• Shipping Weight 1 Pound
• Includes 1/4 Inch-20 TPI, 5/16 Inch-18 TPI, 5/16 Inch-24 TPI, 3/8 Inch-18 TPI, 3/8 Inch-24 TPI, 7/16 Inch-14 TPI SAE Fixture Bar Bolt, M6 x 1 Millimeter, M8 x 1 Millimeter, M8 x 1.25 Millimeter, M10 x 1.25 Millimeter, M10 x 1.5 Millimeter, M12 x 1.5 Millimeter Metric Fixture Bar Cover
• Used On General Service

OTC-Bosch Automotive - 4794 - Specifications

Order Part Number	OT4794
Item Description	"Safty Wire Drill Guide, Sae/Mm"
Manufacturer Long Name	Bosch Automotive Service Solutions Inc. (OTC Tools)
Manufacturer Part Number	4794
UPC	731413563421
Product Group Id	OT00
Country of Origin	TW
Harmonization Code	73269085
UNSPSC	25171700
Product Dimensions	6.1 × 4.5 × 0.5 in
Shipping Weight	1 lb

OTC-Bosch Automotive - 4794 - Package Information

Shipping Height	0.500 Inch
Shipping Length	6.100 Inch
Shipping Weight	1.000 Pound
Shipping Width	4.500 Inch

OTC-Bosch Automotive - 4794 - Videos

OTC-Bosch Automotive 4794 Video URL	Click to View
Embedded video for Safety Wire Drill Guide Set, SAE & Metric Set	Click to View

OTC-Bosch Automotive - 4794 - Documents and Downloads

OTC-Bosch Automotive 4794 Catalog Pages

Click to View
