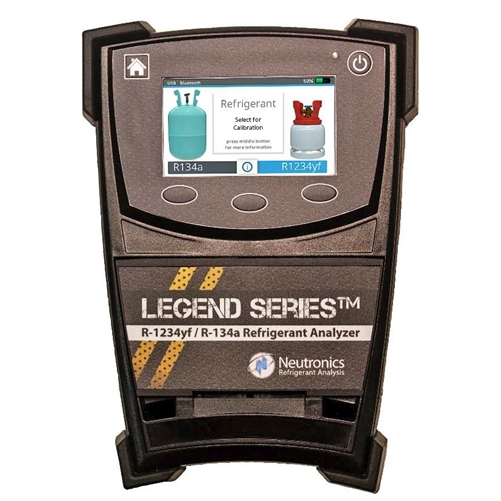

Neutronics / Automotive Division 7-08-1234-30-0 | Legend ID Refrigerant Identifier R1234yf R134a R12 With Printer (No Bluetooth)

Neutronics Refrigerant analysis is proud to present the refrigerant identifier for the past, the present, and the future. Service R12, R134a, and R1234yf vehicles with one tool. With the introduction of the new HFO-1234yf refrigerant to the automotive market, vehicle manufacturers worldwide have developed new standards for vehicle A/C service. Included in these standards is the requirement to verify the purity of the refrigerant prior to recovery of the refrigerant in the system. The Legend ID is a worldwide ready tool to meet the service needs of HFO-1234yf equipped vehicles. It is certified to the SAE J2912 standard and connects directly to SAE J2843 and J3030 AC Service machines that have an external analyzer USB port.

Neutronics / Automotive Division - 7-08-1234-30-0 - Features

• Quickly and accurately determines refrigerant purity
• Displays percentage purity of R1234yf, R134a, R12, R22 and Hydrocarbons
• Displays % air in pure R1234yf & R134a
• Capable of testing R12 with optional R12 hose accessory
• Easily prints test results with optional printer
• Uses standard 2.25” (57 mm) thermal paper
• Improved oil resistance with the user replaceable oil restrictor
• Refrigerants Measured: R134a, R1234yf, R12, R22, HC, Unknown, Air
• Contaminants Measured: R22, Hydrocarbons, Unknown
• Accuracy: Exceeds the requirements of SAE J2912
• Refrigerant % Displayed: R1234yf, R134a, R22, R12, HC, Unknown, Air
• Ambient Operating Temp Range: 10 °C to 49 °C Power: 12VDC @ 1.5 amps
• Test Time: 90 Seconds
• Calibration: Automatic
• Interface: USB (SAE J2843 Compliant)
• Sample Type: Vapor Only 300 psig max.
• Temperature: 50 – 120 F
• Communication Protocols: USB 2.0, Bluetooth 2.0
• User Interface: 5” Color LCD with soft keys
• Languages: ENG, SPA, FRE, GER, ITA, POR
• Approvals: CE, UL, SAE J2912
• Warranty: 1 yr.
• The Neutronics Legend Series takes refrigerant analysis to a new level by combining the performance of Ultima ID with the outstanding feedback received from our customers. A sealed control panel, large color screen and multiple languages highlight the new features. The Legend provides a fast, easy and accurate means to determine refrigerant purity in refrigerant storage cylinders or directly in vehicle air conditioning systems. The instrument is supplied complete with couplers for both R134a and R1234yf, (2) R1234yf sample hoses, (2) R134a sample hoses, an AC power supply, tank adapters for both R1234yf and R134a, Bluetooth module, built-in printer, an internal rechargeable battery and all required plumbing housed within a rugged, portable, storage case.

Neutronics / Automotive Division - 7-08-1234-30-0 - Specifications

Brand Name	Neutronics / Automotive Division
Manufacturer Part Number	7-08-1234-30-0
Item Description	Legend ID Refrigerant Identifier R1234yf R134a R12 With Printer (No Bluetooth)
