Milwaukee 61193 | M18 Fuel 3/8 In. Compact Impact Wrench W/ Friction Ring 2854-20

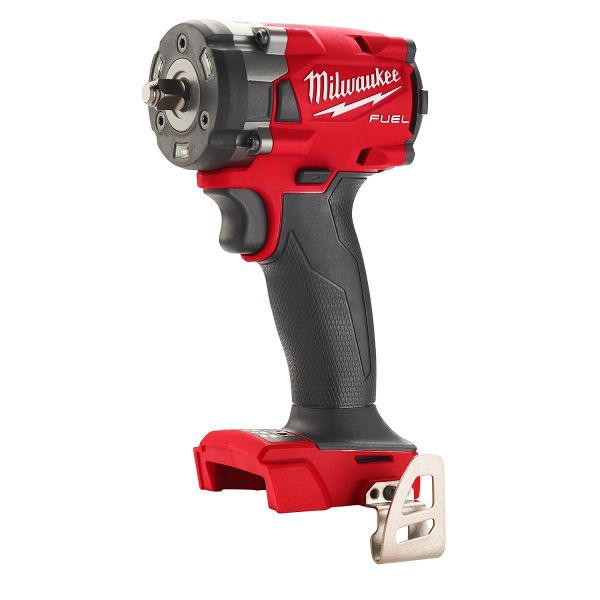

M18 FUEL 3/8 in. Compact Impact Wrench With Friction Ring

Milwaukee - 61193 - Product Categories

• Tools
• Power Tools and Accessories
• Cordless Power Tools

Milwaukee -61193 - Overview

• Our M18 FUEL 3/8" Compact Impact Wrench w/ Friction Ring is the most compact in its class, delivering you the most access in tight spaces, up to 250 ft-lbs of nut-busting torque, and maximum workspace visibility. This battery-powered impact wrench measures only 4.8" in length with a POWERSTATE Brushless motor to provide the power to remove stubborn fasteners, even in confined spaces. The MILWAUKEE 3/8" Compact Impact Wrench has tri-LEDs that surround the anvil to deliver you brighter light with fewer shadows. 4-Mode DRIVE CONTROL offers greater precision with a range of pre-set RPM and IPM levels, selectable from a single button on the tool. By selecting Mode 4, AUTO SHUT-OFF control applies no more than 20 ft-lbs of torque for hand-tight fastening applications to prevent overtightening. Mode 4 also features Bolt Removal Control delivers full torque output, then decreases RPMs once the bolt is loosened to prevent fastener drops. REDLINK PLUS Intelligence electronics make these controls possible while ensuring maximum performance, protecting the tool against overloads, over-heating, and over-discharge. The M18 REDLITHIUM battery pack (not included) fits M18 tools, delivering more work per charge and more work over the life of the pack.

Milwaukee - 61193 - Package Contents

• (1) M18 FUEL 3/8" Compact Impact Wrench w/ Friction Ring(2854-20)

Milwaukee - 61193 - Features

• Friction ring (hog ring) ensures quick and easy socket changes
• 4.8" in length provides most access in tight spaces
• The POWERSTATE Brushless motor delivers up to 250 ft-lbs. of nut-busting torque
• Tri-LEDs deliver high definition lighting to increase workspace visibility with less shadows
• 4-Mode DRIVE CONTROL provides greater control over output speed and power. Includes auto shut-off and bolt-removal mode
• AUTO SHUT-OFF control prevents over tightening and increases productivity by applying no more than 20 ft-lbs. of torque
• Bolt Removal control delivers full torque output, then decreases RPMs once the bolt is loosened to prevent fastener drops
• Mode 1 RPMs: 0-800; Mode 2 RPMs: 0-1,650; Mode 3 RPMs: 0-2,400; Mode 4 RPMs: 0-2,400
• Mode 1 IPMs: 0-1,000; Mode 2 IPMs: 0-2,400; Mode 3 IPMs: 0-3,500; Mode 4 IPMs: 0-3,500
• REDLINK PLUS Intelligence ensures maximum performance and protects from overloads, heating and over-discharge Works in up to to 69kV environments
• Compatible with all M18 batteries & Chargers

Milwaukee - 61193 - General Specifications

Brand Name	Milwaukee
Manufacturer Part Number	61193
Item Description	M18 Fuel 3/8 In. Compact Impact Wrench W/ Friction Ring 2854-20
Net Weight	2.87
Height	6
Width	3
Depth	9

Milwaukee - 61193 - Documents and Downloads

Milwaukee 61193 Instructions

Click to View
