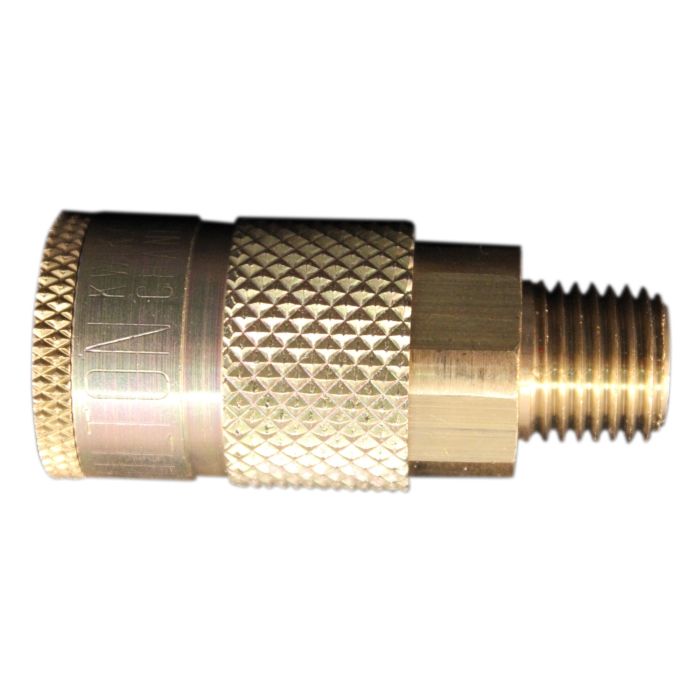

Milton S-786 | Tru-Flate/Parker Style Air Hose Coupler, Male, 1/4 Inch NPT

1/4" MNPT T style couplers have a brass body and a Buna-N seal. Milton T style couplers have a 1/4" basic flow size and a maximum of 300 PSI. Offers air flow of up to 40 SCFM.

Milton Industries - S-786 - Features

• Made in USA
• Coupler Fitting
• Type T-Style
• Size A 1/4 Inch
• Size B 1/4 Inch
• End Connection Male Threaded x Male Threaded
• Material Solid Brass, Buna-N (Seal)
• Pressure Rating 300 PSI
• Temperature Rating 250 Deg F
• Airflow Rate 40 SCFM

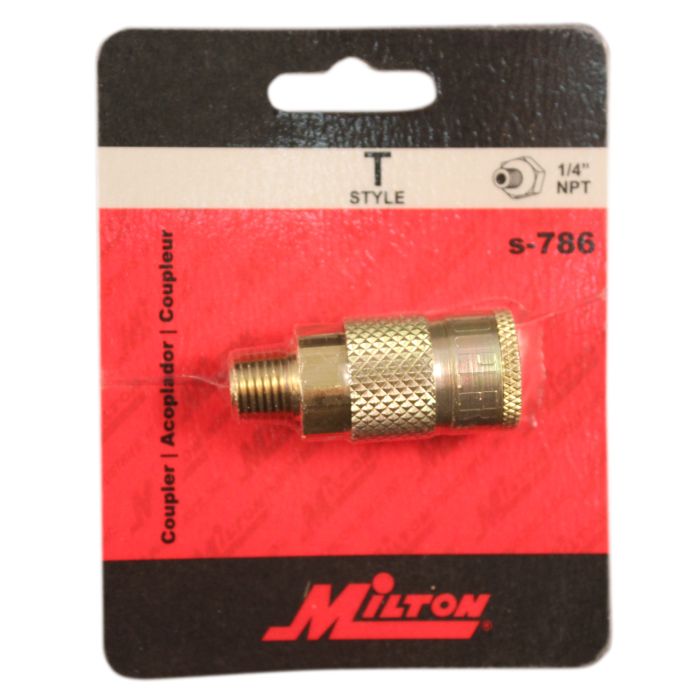

• Packaging Type Retail
• Maximum inlet pressure: 300 PSI
• Maximum temperature: 250� F
• Air flow: 40 SCFM
• Seals: Buna-N.
• All "T" style coupler bodies are brass, with steel sleeves.

Milton Industries - S-786 - Overview

• 1/4" male national pipe thread
• Maximum of 300 pounds per square inch
• Air flow of 40 standard cubic feet per minute
• Maximum temperature of 250 degrees Fahrenheit
• Coupler body

Milton Industries - S-786 - Additional Information

• Airflow Rate 40 SCFM
• Packaging Type Retail

Milton Industries - S-786 - Related Products

• Milton 1/4" FNPT Dual Head Air Chuck (690)
• Milton 1/4" FNPT Dual-Head Air Chuck (Pack of 10)
• Milton 1/4" FNPT Dual Head Air Chuck (Box of 50)
• Milton 1/4" NPT Button-Style Blow Gun (Box of 10)
• Milton Safety Blow Gun & 4" Extension

Milton Industries - S-786 - Specifications

Order Part Number	MIS-786
Item Desc	Tru-flate/Parker Style Air Hose Coupler Male 1/4 In NPT
Individual Item Quantity	10 per Pack
Manufacturer Long Name	Milton Industries, Inc.
Manufacturer Part Number	S-786
UPC	309370078658
Product Group Id	MI00
Country of Origin	US
UNSPSC	27131613
Short Description	Coupler body
Grouped Product Package Type	S-786 - Retail Box of 10
Number of Items in This Pack	10
Made in USA	Yes
Type	Coupler
Display on Bloguns CMS Page	No
Basic Flow Size	1/4" Basic Flow Size
Connection Type	No
Maximum PSI	No
NPT thread size	No
SCFM	Air Flow 40 SCFM
Material Type	No
Style	T-Style

Milton Industries - S-786 - Package Information

Package/Shipping Quantity

1 per Card

Milton Industries - S-786 - Documents and Downloads

Milton Industries S-786 Catalog Pages

Download and View
