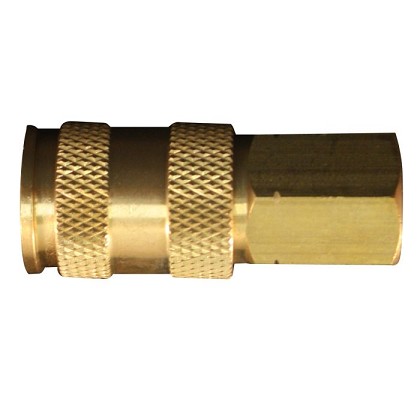

Milton S-764 | Hi-Flo V-Style A/M/V 1/4 Inch Female NPT Body

1/4" FNPT HIGHFLOWPRO V-Style couplers will accept A, M and V-Style plugs, however, to retain maximum air flow use V-Style plugs. Sleeve release is a push type and is easy to use; simply push plug into coupler to engage, pull sleeve back to remove. Perfect for high volume, low pressure applications. V-Style couplers have a 1/4" basic flow size and a maximum pressure of 300 PSI.

Milton Industries - S-764 - Features

• HIGHFLOWPRO V-Style couplers will accept A, M and V-Style plugs, however, to retain maximum air flow use V-Style plugs. Sleeve release is a push type and is easy to use
• simply push plug into coupler to engage, pull sleeve back to remove. Perfect for high volume, low pressure applications
• Coupler Fitting
• Type V-Style, High Flow
• Size A 1/4 Inch
• Size B 1/4 Inch
• End Connection Female Threaded x Female Threaded
• Material Brass, Buna-N (Seal)
• Pressure Rating 300 PSI
• Temperature Rating 250 Deg F
• Applicable Standard OSHA
• Airflow Rate 74 SCFM
• Packaging Type Retail
• Coupler Fitting
• Type V-Style, High Flow
• Size A 1/4 Inch
• Size B 1/4 Inch
• End Connection Female Threaded x Female Threaded
• Material Brass, Buna-N (Seal)
• Pressure Rating 300 PSI
• Temperature Rating 250 Deg F
• Applicable Standard OSHA
• Airflow Rate 74 SCFM
• Packaging Type Retail

Milton Industries - S-764 - Overview

• 1/4" female national pipe threads
• Maximum inlet pressure of 300 pounds per square inch
• Air flow of 74 standard cubic feet per minute
• Maximum temperature of 250 degrees Fahrenheit
• HIGHFLOWPRO V-Style 'A,M,V' 1/4" FNPT Brass Body

Milton Industries - S-764 - Additional Information

• Airflow Rate 74 SCFM
• Packaging Type Retail

Milton Industries - S-764 - Related Products

• Milton 762-1 3/8" MNPT HIGHFLOWPRO V-Style/Euro Interchange Steel Air Plug Fitting (High Volume Low Pressure Application) -Box of 10
• Milton 763-1 1/4" FNPT HIGHFLOWPRO V-Style/Euro Interchange Steel Air Plug Fitting (High Volume Low Pressure Application) -Box of 10
• Milton 1/4" MNPT HIGHFLOWPRO V-Style Male Brass Plug
• Milton 1/4" MNPT HIGHFLOWPROÂ V-Style Male Steel Plug (Pack of 10)
• Milton 1/4" FNPT HIGHFLOWPRO V-Style Female Brass Plug

Milton Industries - S-764 - Specifications

Order Part Number	MIS-764
Item Desc	Hi-Flo V-Style 'A,M,V' 1/4" F NPT Body
Individual Item Quantity	10 per Pack
Manufacturer Long Name	Milton Industries, Inc.
Manufacturer Part Number	S-764
UPC	309370076432
Product Group Id	MI00
Country of Origin	US
UNSPSC	27131613
Short Description	HIGHFLOWPRO V-Style 'A,M,V' 1/4" FNPT Brass Body
Grouped Product Package Type	S-764 - Retail Box of 10
Number of Items in This Pack	10
Made in USA	No
Type	Coupler
Display on Bloguns CMS Page	No
Basic Flow Size	1/4" Basic Flow Size
Connection Type	No
Maximum PSI	No
NPT thread size	1/4" Female NPT
SCFM	Air Flow 74 SCFM
Material Type	Brass (Solid)
Style	V-Style
