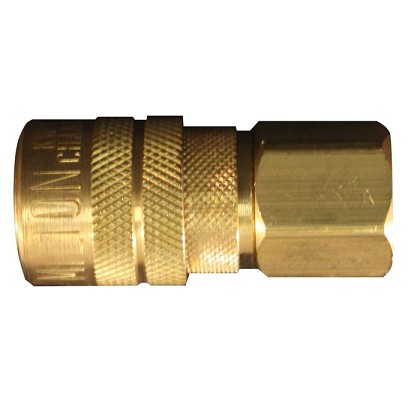

Milton S-718 | Female Coupler Body 3/8 Inch NPT

3/8" FNPT M-Style couplers have a brass body and a Buna-N seal. The industry standard Milton M-Style coupler has a 1/4" basic flow size and a maximum pressure of 300 PSI. M-Style couplers offer air flow of 40 SCFM.

Milton Industries - S-718 - Features

• Made in USA
• Coupler Fitting
• Type M-Style
• Size A 3/8 Inch
• Size B 3/8 Inch
• End Connection Female Threaded x Female Threaded
• Material Solid Brass, Buna-N (Seal)
• Pressure Rating 300 PSI
• Temperature Rating 250 Deg F
• Application Industrial
• Airflow Rate 40 SCFM
• Packaging Type Retail
• Coupler Fitting
• Type M-Style
• Size A 3/8 Inch
• Size B 3/8 Inch
• End Connection Female Threaded x Female Threaded
• Material Solid Brass, Buna-N (Seal)
• Pressure Rating 300 PSI
• Temperature Rating 250 Deg F
• Application Industrial
• Airflow Rate 40 SCFM
• Packaging Type Retail

Milton Industries - S-718 - Overview

• 3/8" female national pipe thread
• Maximum inlet pressure of 300 pounds per square inch
• Air flow of 40 standard cubic feet per minute
• Maximum temperature of 250 degrees Fahrenheit
• 3/8" Fem. Body M-Style

Milton Industries - S-718 - Additional Information

• Airflow Rate 40 SCFM
• Packaging Type Retail

Milton Industries - S-718 - Related Products

• Milton 1/4" FNPT Dual Head Air Chuck (690)
• Milton 1/4" FNPT Dual-Head Air Chuck (Pack of 10)
• Milton 1/4" FNPT Dual Head Air Chuck (Box of 50)
• Milton 1/4" NPT Button-Style Blow Gun (Box of 10)
• Milton Safety Blow Gun & 4" Extension

Milton Industries - S-718 - Specifications

Order Part Number	MIS-718
Item Desc	Female Coupler Body 3/8 NPT
Individual Item Quantity	10 per Pack
Manufacturer Long Name	Milton Industries, Inc.
Manufacturer Part Number	S-718
UPC	309370071864
Product Group Id	MI00
Country of Origin	US
UNSPSC	27131613
Short Description	3/8" Fem. Body M-Style
Grouped Product Package Type	S-718 - Retail Box of 10
Number of Items in This Pack	10
Made in USA	Yes
Type	Coupler
Display on Bloguns CMS Page	No
Basic Flow Size	1/4" Basic Flow Size
Connection Type	No
Maximum PSI	300 PSI
NPT thread size	3/8" Female NPT
SCFM	Air Flow 40 SCFM
Material Type	No
Style	M-STYLE

Milton Industries - S-718 - Package Information

Package/Shipping Quantity

1 per Card

Milton Industries - S-718 - Documents and Downloads

Milton Industries S-718 Catalog Pages

Download and View
