Milton S-716 | Air Coupler Male 1/4 Inch NPT

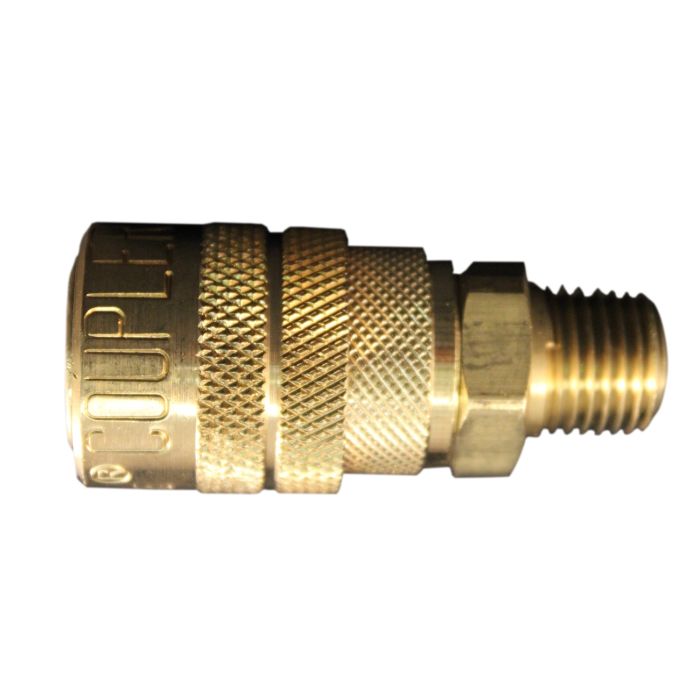

Milton (S-716) 1/4" MNPT Male M-Style KWIK-CHANGE Coupler Milton is proud to be the creator and leader of the pneumatic industry standard M-Style coupler. This 1/4" MNPT M-Style brass coupler has a 1/4" basic flow size, offering a maximum of 300 PSI. Comes with Buna-N seal and air flow of 40 SCFM. Both the body and sleeve are made of brass. You can also find this S-716 air coupler included in these Milton coupler/plug and accessory kits: #S-221, S-222, MK1669-1, 683-MCPK. Milton M-Style KWIK-CHANGE couplers are made of brass, while M-Style KWIK-CHANGE plugs are made of case-hardened steel and are plated to resist rust. This collection of couplers and plugs: - Will interchange with all manufacturers who comply with the dimensional requirements of military specification MIL-C-4109. Offer a maximum airflow of 40 standard cubic feet per minute (except for select Push Button options). Offer a maximum of 300 pounds per square inch. Can withstand a max temperature of 250 degrees Fahrenheit.

Milton Industries - S-716 - Features

• M-STYLE The industry standard coupler
• KWIK-CHANGE Interchangeable/compatible with most manufacturers. Easy push to connect
• Made in USA
• Coupler Fitting
• Type M-Style
• Size A 1/4 Inch
• Size B 1/4 Inch
• End Connection Male Threaded x Male Threaded
• Material Solid Brass
• Pressure Rating 300 PSI
• Temperature Rating 250 Deg F
• Airflow Rate 40 SCFM
• Packaging Type Retail
• With the Milton match-up system all couplers and plugs with the same letter code can be used together regardless of thread size.
• M style bodies are brass with brass sleeves.
• All "M" style plugs are case hardened steel.
• Warning: For use with shop air only.
• Air Coupler Male 1/4 In NPT

Milton Industries - S-716 - Overview

• M-Style: The industry standard coupler. Milton M-Style, ColorFit M-Style, + red competitor couplers/plugs are all compatible.
• KWIK-CHANGE: Interchangeable/compatible with most manufacturers. Easy push to connect.
• NPT: 1/4" male national pipe thread flow size. Durable brass. Buna-N seals.
• MAXIMUM: 40 standard cubic feet per minute (SCFM). 300 PSI inlet pressure. Temperatures up to 250 degrees F.
• INCLUDED IN Milton M-Style KITS: #S-221, S-222, MK1669-1, 683-MCPK.
• Milton (S-716) 1/4" MNPT Male M-Style KWIK-CHANGE Coupler

Milton Industries - S-716 - Additional Information

• Airflow Rate 40 SCFM
• Packaging Type Retail

Milton Industries - S-716 - Related Products

• Milton 1/4" FNPT Dual Head Air Chuck (690)
• Milton 1/4" FNPT Dual-Head Air Chuck (Pack of 10)
• Milton 1/4" FNPT Dual Head Air Chuck (Box of 50)
• Milton 1/4" NPT Button-Style Blow Gun (Box of 10)
• Milton Safety Blow Gun & 4" Extension

Milton Industries - S-716 - Specifications

Order Part Number	MIS-716
Item Desc	Air Coupler Male 1/4 In NPT
Individual Item Quantity	10 per Pack
Manufacturer Long Name	Milton Industries, Inc.
Manufacturer Part Number	S-716
UPC	309370071628
Product Group Id	MI00
Country of Origin	US
UNSPSC	27131613
Short Description	Milton (S-716) 1/4" MNPT Male M-Style KWIK-CHANGE Coupler
Grouped Product Package Type	S-716 - Retail Box of 10
Number of Items in This Pack	10
Made in USA	Yes
Type	Coupler
Display on Bloguns CMS Page	No
Kit Quantity	2-pk carded
Basic Flow Size	1/4" Basic Flow Size
Connection Type	No
Maximum PSI	300 PSI
NPT thread size	1/4" Male NPT
SCFM	Air Flow 40 SCFM
Material Type	No
Style	M-STYLE

Milton Industries - S-716 - Package Information

Package/Shipping Quantity

1 per Card

Milton Industries - S-716 - Documents and Downloads

Milton Industries S-716 Catalog Pages

Download and View
