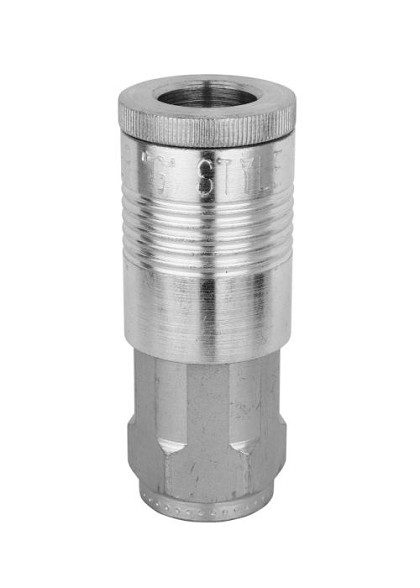

Milton S-1815 | G-Style Coupler 1/2 Inch NPT Female

1/2" FNPT G style couplers are used in applications that require over 60 SCFM. There are two Milton G Style couplers, but both will function the same with G style plugs. Milton G style couplers are made of steel and are plated to resist rust. With a 1/2" basic flow size, these couplers offer up to 99 SCFM, making them the highest SCFM rated couplers. Maximum pressure of 300 PSI.

Milton Industries - S-1815 - Features

• G-Style couplers are steel, plated to resist rust
• 8 ball bearing connection
• Made in USA
• Coupler Fitting
• Item Coupler
• Type G-Style
• Designated Size 1/2 Inch
• End Connection Female Threaded
• Material Steel
• Pressure Rating 300 PSI
• Temperature Rating 250 Deg F
• Overall Dimension 2.95 Inch Length x 1.18 Inch Width x 1.18 Inch Height
• Air Flow Rating 99 SCFM
• Basic Flow Size 1/2 Inch
• Seal Material Buna-N
• Packaging Type Retail
• Basic Size Tru-Flate/Parker Style.
• Hardened steel and treated to resist rust.
• These basic bodies work with either industrial interchange or tru-flate/parker style plugs.
• Thread Type: Female
• NPT Size: 1/2" Female.
• Warning: for use with shop air only.
• G-Style Coupler - 1/2 In NPT Female

Milton Industries - S-1815 - Overview

• 1/2" female national pipe thread
• Maximum inlet pressure of 300 pounds per square inch
• Air flow of 99 standard cubic feet per minute
• Maximum temperature of 250 degrees Fahrenheit
• Buna-N seal
• 1/2" Female Body G-Style, Skin Pack

Milton Industries - S-1815 - Additional Information

• Overall Dimension 2.95 Inch Length x 1.18 Inch Width x 1.18 Inch Height
• Air Flow Rating 99 SCFM
• Basic Flow Size 1/2 Inch
• Seal Material Buna-N
• Packaging Type Retail

Milton Industries - S-1815 - Related Products

• Milton 1/4" FNPT Dual Head Air Chuck (690)
• Milton 1/4" FNPT Dual-Head Air Chuck (Pack of 10)
• Milton 1/4" FNPT Dual Head Air Chuck (Box of 50)
• Milton 1/4" NPT Button-Style Blow Gun (Box of 10)
• Milton Safety Blow Gun & 4" Extension

Milton Industries - S-1815 - Specifications

Order Part Number	MIS-1815
Item Desc	G-Style Coupler - 1/2 In NPT Female
Individual Item Quantity	1 per Card
Manufacturer Long Name	Milton Industries, Inc.
Manufacturer Part Number	S-1815
UPC	309370181518
Product Group Id	MI00
UNSPSC	27131613
Short Description	1/2" Female Body G-Style, Skin Pack
Grouped Product Package Type	S-1815 - Retail Box of 5
Number of Items in This Pack	5
Made in USA	Yes
Type	Coupler
Manufacturer	Milton Industries Inc.
Display on Bloguns CMS Page	No
Basic Flow Size	1/2" Basic Flow Size
Connection Type	No
Maximum PSI	No
NPT thread size	1/2" Female NPT
Height	1.18
Width	1.18
Length	2.95
SCFM	Air Flow 99 SCFM
Style	G-Style

Milton Industries - S-1815 - Package Information

Package/Shipping Quantity

5 per Pack
