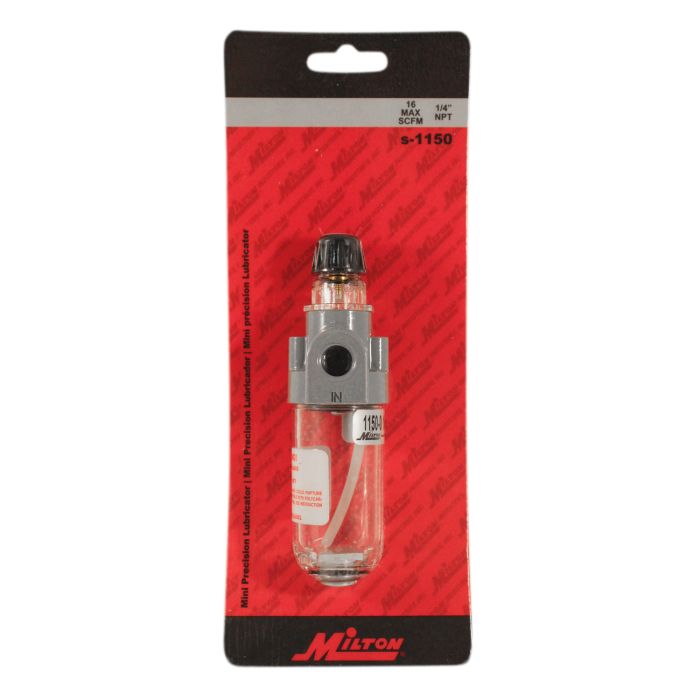

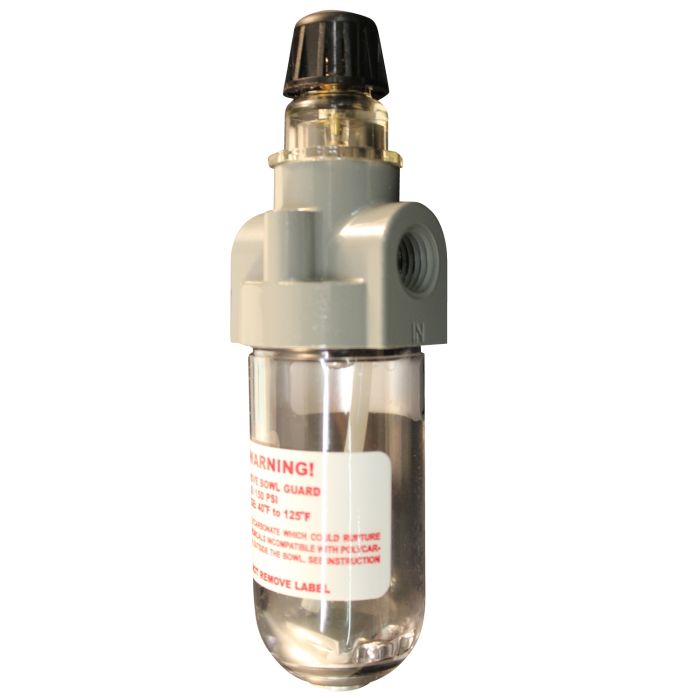

Milton S-1150 | Mini Precision Lubricator 1/4 Inch NPT

1/4" NPT Mini precision lubricator is a visible drip type lubricator with an external adjustment screw. Unit is designed for low air flow applications where space is limited. Bypass system allows full air flow with minimum pressure drop and assures proper air/water mixture over full operating range. Requires approximately 1 SCFM of air flow to deliver oil. Includes polycarbonate bowl and two 1/8" NPT gage ports.

Milton Industries - S-1150 - Features

• Polycarbonate bowl.
• A visible drop-type lubricator with an external adjustment screw.
• Designed for low air flow applications where space considerations dictate a compact lubricator.
• Requires approximately .1 CFM of air flow to deliver oil.
• Bypass system allows full air flow with minimum pressure drop-assures properly proportioned air/oil over operating range.
• Pressures to 150 PSI at temperatures up to 120°F.
• Mini Precision Lubricator - 1/4 In NPT

Milton Industries - S-1150 - Overview

• 1/4" national pipe thread
• Maximum inlet pressure of 250 pounds per square inch
• 1 ounce polycarbonate bowl
• Maximum inlet pressure of 150 pounds per square inch
• Maximum of 16 standard cubic feet per minute

Milton Industries - S-1150 - Related Products

• Milton 1/4" x 1/4" NPT Deluxe In-Line Lubricator
• Milton Compressor Pressure Switch
• Milton 1/2" Metal Filter
• Milton 1/4" NPT Mini Low Pressure Regulator

Milton Industries - S-1150 - Specifications

Order Part Number	MIS-1150
Item Desc	Mini Precision Lubricator - 1/4 In NPT
Product Group Id	MI00
Country of Origin	US
Harmonization Code	84242000
MS Bin Code	EG131
Default Selling Unit	EA
Status	Y
Short Description	Mini Lubricator 1/4" NPT
Number of Items in This Pack	1
UPC Code	30937011503
Made in USA	Yes
FRL type	No
Key feature	Designed for low air flow applications where space is a consideration
Material Type	No
Manufacturer	Milton Industries Inc.
Display on Bloguns CMS Page	No
NPT thread size	1/4" NPT Inlet
PSI range	No
Maximum PSI	Max Inlet Pressure 150 PSI
SCFM	No
Height	1.5
Width	1.5
Length	5
SCFM requirement	Requires 1 SCFM of air flow to deliver oil
Bowl capacity	1 oz polycarbonate bowl
