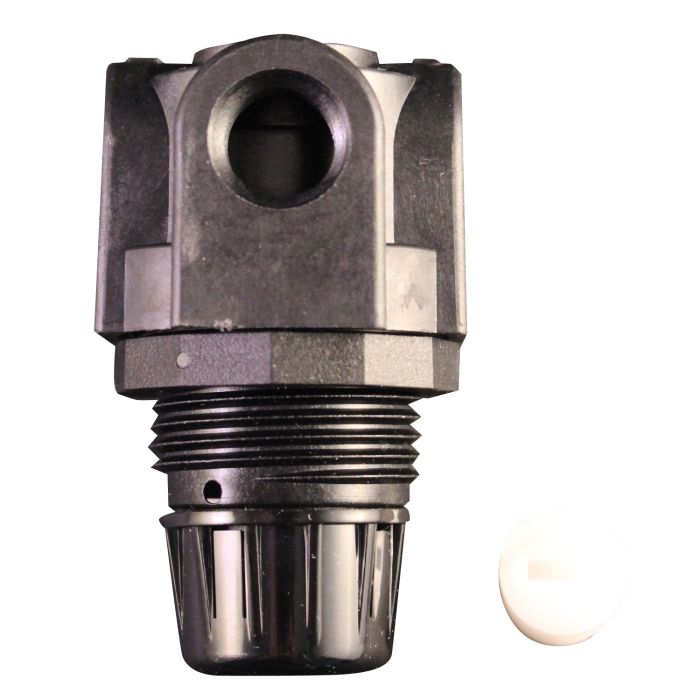

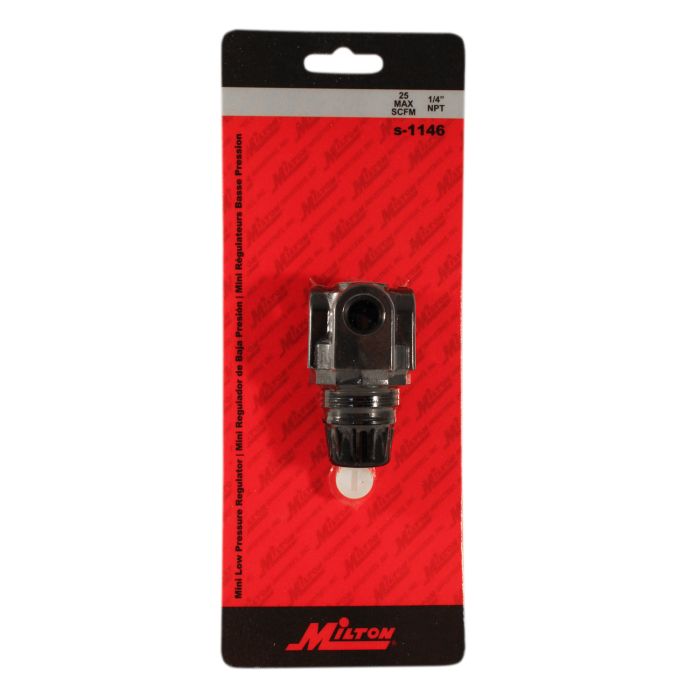

Milton S-1146 | Mini Low Pressure Regulator, 1/4" NPT

Mini low pressure regulator is ideal for air flow applications that call for a compact unit, such as small pneumatic equipment, miniature valves and instruments. Easy to use; simply turn knob to regulate pressure. Gage is not included.

Milton Industries - S-1146 - Features

• 0 to 60 PSI
• Max inlet pressure: 250 PSI
• Maximum operating temperature: 120° F
• Maximum SCFM 25
• Sturdy glass filled nylon
• 1/8” NPT gage ports
• 1/4" NPT Mini Low Pressure Regulator
• Ideal for air flow applications that call for a compact unit whereprecise regulation is required such as small pneumaticequipment, miniature valves and instruments. Gage not included,but available as an accessory

Milton Industries - S-1146 - Overview

• 1/4" national pipe thread
• 1/8" national pipe thread gage ports
• Maximum inlet pressure of 250 pounds per square inch
• Maximum 25 standard cubic feet per minute
• Buna-N seal

Milton Industries - S-1146 - Related Products

• Milton 1/4" NPT Deluxe FRL Trio
• Milton Compressor Pressure Switch
• Milton 1/4" x 1/4" NPT Deluxe In-Line Lubricator
• Milton 3/4" NPT Midsize Regulator

Milton Industries - S-1146 - Specifications

Order Part Number	MIS-1146
Item Desc	Mini Low Pressure Air Regulator - 1/4" NPT
Product Group Id	MI00
Country of Origin	US
Harmonization Code	84242000
MS Bin Code	EG131
Default Selling Unit	EA
Status	Y
Short Description	Low Press Mini Regulator
Number of Items in This Pack	1
UPC Code	30937011466
Made in USA	Yes
FRL type	No
Key feature	Ideal for use in compact air flow applications
Material Type	No
Manufacturer	Milton Industries Inc.
Display on Bloguns CMS Page	No
NPT thread size	1/4" NPT Inlet
PSI range	No
Maximum PSI	Max Inlet Pressure 250 PSI
SCFM	No
Height	1.5
Width	1.5
Length	2.75
Bowl capacity	No
Gauge Port thread size	1/8" NPT gage port
