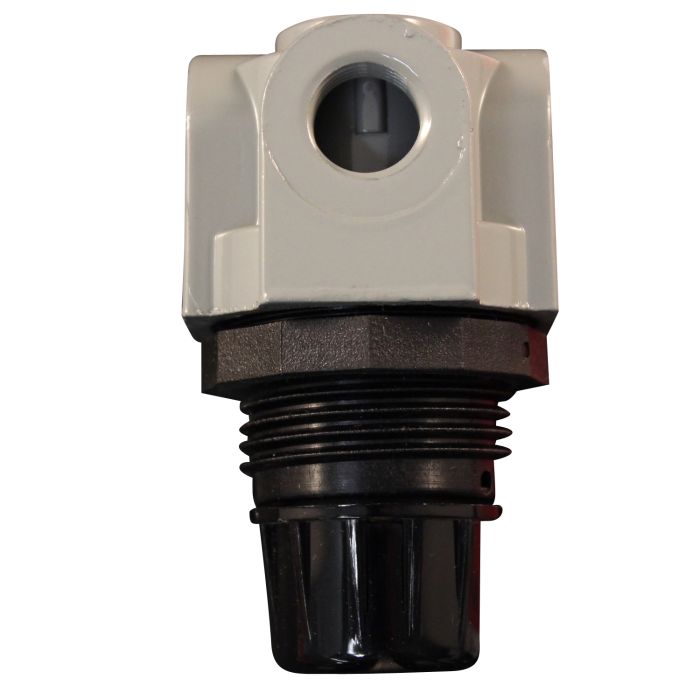

Milton S-1145 | Mini Heavy Duty Regulator, 1/4" NPT

1/4" NPT mini regulator is ideal for air flow applications that call for a compact unit, such as small pneumatic equipment, miniature valves and instruments. Easy to use; simply turn knob to regulate pressure. Gage is not included.

Milton Industries - S-1145 - Features

• Precision Mini Regulator
• Type Heavy Duty
• Port Size 1/8 Inch Center Mount
• End Connection 1/4 Inch Threaded
• Pressure Gauge Included No
• Body Material Glass Filled Nylon
• Air Consumption 25 SCFM
• Inlet Pressure 250 PSI
• Outlet Pressure 5 to 125 PSI
• Temperature Rating 40 to 120 Deg F
• 1/4" NPT.
• Does not include gage.
• Ideal for use with small instruments, pneumatic equipment and miniature valving where air flow requirements call for a compact unit.
• Regulator has 1/8" NPT gage ports.
• Gage available as an accessory.
• Operating range in pressures to 250 PSI at temperatures up to 120° F.
• 0 to 125 PSI relieving model standard.
• Mini Heavy Duty Regulator 1/4 In NPT

Milton Industries - S-1145 - Overview

• Maximum inlet pressure of 250 pounds per square inch
• 1/8" national pipe thread gage ports
• Maximum of 25 cubic feet per minute
• Operating temperature range of 40 degrees Fahrenheit to 120 degrees Fahrenheit
• Mini Regulator 1/4" NPT

Milton Industries - S-1145 - Related Products

• Milton 1/4" FNPT Dual Head Air Chuck (690)
• Milton 1/4" FNPT Dual-Head Air Chuck (Pack of 10)
• Milton 1/4" FNPT Dual Head Air Chuck (Box of 50)
• Milton 1/4" NPT Button-Style Blow Gun (Box of 10)
• Milton Safety Blow Gun & 4" Extension

Milton Industries - S-1145 - Specifications

Order Part Number	MIS-1145
Item Desc	Mini Heavy Duty Regulator 1/4 In NPT
Individual Item Quantity	1 per Pack
Manufacturer Long Name	Milton Industries, Inc.
Manufacturer Part Number	S-1145
Product Group Id	MI00
Country of Origin	US
Harmonization Code	84242000
MS Bin Code	EG131
Status	Y
UNSPSC	27131603
Short Description	Mini Regulator 1/4" NPT
Grouped Product Package Type	Single Retail Pack
Number of Items in This Pack	1
UPC Code	30937011459
Made in USA	Yes
FRL type	No
Key feature	Ideal for use in compact air flow applications
Material Type	No
Manufacturer	Milton Industries Inc.
Display on Bloguns CMS Page	No
NPT thread size	1/4" NPT Inlet
PSI range	No
Maximum PSI	Max Inlet Pressure 250 PSI
SCFM	No
Height	1.5
Width	1.5
Length	2.75
Bowl capacity	No
