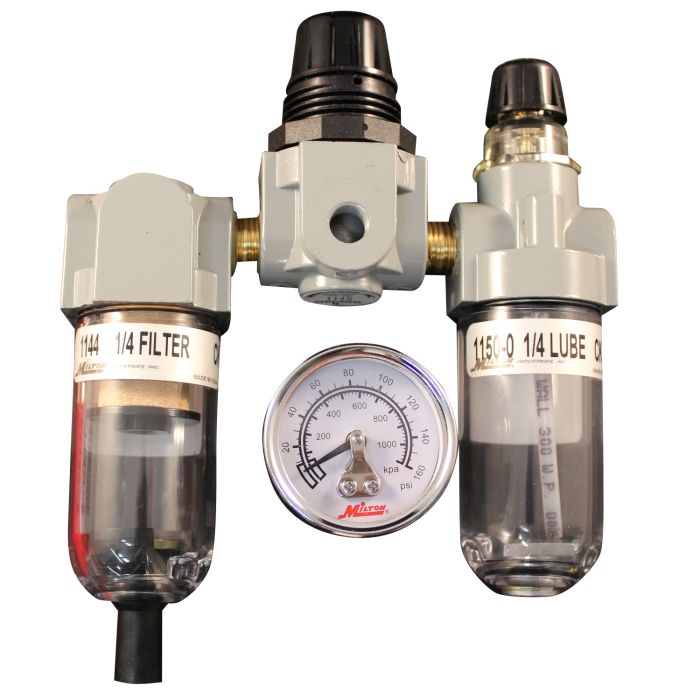

Milton S-1140 | Deluxe Mini FRL Trio

The mini 1/4" NPT FRL trio is recommended when space is a problem. Mini FRL trio offers the same features as the full size units. Pre-assembled with 0-160 PSI gage #1189, filter #1144, regulator #1145, and lubricator #1150. Has a maximum pressure of 150 PSI and maximum SCFM of 20.

Milton Industries - S-1140 - Features

• Mini FRL trio offers the same features as the full size unit
• Made in USA
• Deluxe FRL Trio
• Type Mini
• End Connection 1/4 Inch Threaded
• Filter Bowl Capacity 1 Ounce
• Filter Bowl Material Polycarbonate
• Regulating Pressure 150 PSI
• Temperature Rating 40 to 120 Deg F
• Flow Rate 20 SCFM
• Includes Overnight Drain
• Prevents damage to air tools caused by rust, scale and moisture.
• Provides proper pressure control and lubrication.
• Supplied with the new automatic overnight drains, plus high volume regulators with gauges.
• 0-160 PSI gage.
• Overall length is 5-1/4"
• Deluxe Mini F-R-L Trio

Milton Industries - S-1140 - Overview

• Has an operating temperature range of 40 degrees Fahrenheit to 120 degrees Fahrenheit
• 1/4" national pipe thread air inlet
• Maximum of 20 standard cubic feet per minute

Milton Industries - S-1140 - Additional Information

• Includes Overnight Drain

Milton Industries - S-1140 - Related Products

• Milton 1/4" x 1/4" NPT Deluxe In-Line Lubricator
• Milton 1/4" NPT Polycarbonate Micro Filter
• Milton 40 Micron Bronze Sintered Replacement Filter
• Milton 1/2" FNPT Electronic Compressor Tank Drain
• Milton FRL Desiccant Dryer Refill, 1 Gallon

Milton Industries - S-1140 - Specifications

Order Part Number	MIS-1140
Item Desc	Deluxe Mini F-R-L Trio
Individual Item Quantity	1 per Pack
Manufacturer Long Name	Milton Industries, Inc.
Manufacturer Part Number	S-1140
UPC	309370114042
Product Group Id	MI00
Country of Origin	US
UNSPSC	27131600
Short Description	Mini F-R-L 1/4" NPT
Number of Items in This Pack	1
Made in USA	Yes
FRL type	No
Key feature	Offers same features as full size FRL units
Material Type	No
Manufacturer	Milton Industries Inc.
Display on Bloguns CMS Page	No
NPT thread size	1/4" NPT Inlet
PSI range	No
Maximum PSI	150 PSI
SCFM	No
Height	1.625
Width	5.25
Length	6.5
Contents of part number	Includes filter #114, Regulator #1145, Gage #1189 and lubricator #1150
Bowl capacity	No
