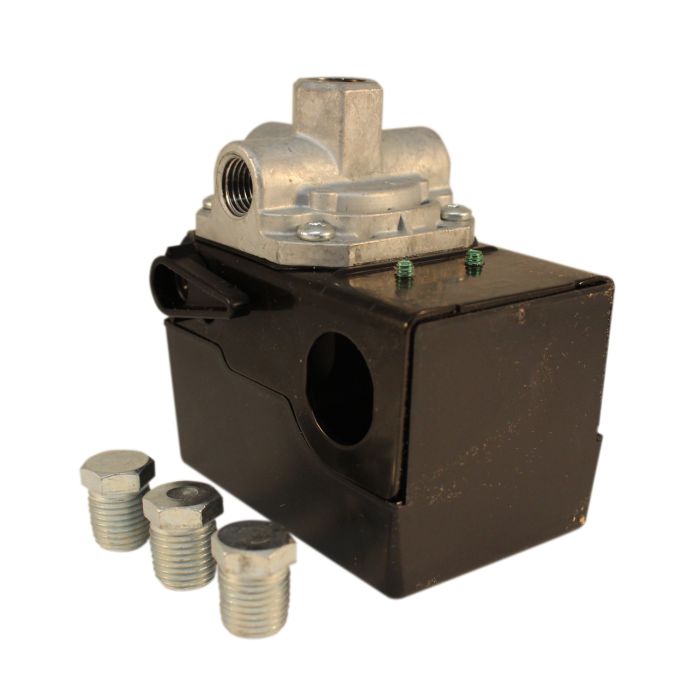

Milton S-1062 | Pressure Switch

Pressure Switch, 140-175 PSI. Universal pressure switches replace pressure switches on compressors up to: 2 HP at 120v 1 phase, 3 HP at 240 V 1 phase or 5 HP at 240 V 3 phase. 3 HP at 240V 1 phase. UL listed, CSA certified.

Milton Industries - S-1062 - Features

• Combination terminals can be used with quick connects or standard screw terminals
• Auto-off disconnect lever and rotating unloader valve for applications requiring these modifications
• Made in USA
• Compressor Pressure Switch
• Type Heavy Duty
• Operating Pressure Rating 140 to 175 PSI
• Connection Type 1/4 Inch Female Threaded x 1/4 Inch Female Threaded x 1/4 Inch Female Threaded x 1/4 Inch Female Threaded
• Approval UL, CSA
• Power Rating 3 HP at 240 Volt 1-Phase, 5 HP at 3-Phase
• Compressor Pressure Switch
• Type Heavy Duty
• Operating Pressure Rating 140 to 175 PSI
• Connection Type 1/4 Inch Female Threaded x 1/4 Inch Female Threaded x 1/4 Inch Female Threaded x 1/4 Inch Female Threaded
• Approval UL, CSA
• Power Rating 3 HP at 240 Volt 1-Phase, 5 HP at 3-Phase

Milton Industries - S-1062 - Overview

• Suitable replacement for 2 HP at 120v 1 phase, 3 HP at 240 V 1 phase or 5 HP at 240 V 3 phase
• 140 to 175 pounds per square inch
• Four 1/4" female national thread pipe port manifold
• Pressure Switch, 140-175 PSI

Milton Industries - S-1062 - Additional Information

• Power Rating 3 HP at 240 Volt 1-Phase, 5 HP at 3-Phase

Milton Industries - S-1062 - Related Products

• Milton Compressor Pressure Switch
• Milton 3/8" NPT Deluxe Polycarbonate FR Duo
• Milton 3/8" NPT Polycarbonate FRL Micro Filter
• Milton 3/8" NPT Metal Lubricator
• Milton 1" NPT Midsize FRL Regulator

Milton Industries - S-1062 - Specifications

Order Part Number	MIS-1062
Item Desc	Press Switch
Individual Item Quantity	1 per Pack
Manufacturer Long Name	Milton Industries, Inc.
Manufacturer Part Number	S-1062
UPC	309373074770
Product Group Id	MI00
Country of Origin	-
UNSPSC	39122210
Short Description	Pressure Switch, 140-175 PSI
Number of Items in This Pack	1
Made in USA	Yes
FRL type	No
Key feature	Replacement switch for 2 HP 120 V 1 phase
Material Type	No
Manufacturer	Milton Industries Inc.
Display on Bloguns CMS Page	No
NPT thread size	No
HP size	3 HP @ 240V 1 phase
PSI range	No
Maximum PSI	No
SCFM	No
HP at 3 phase	5 HP @ 240V 3 Phase
Height	3.25
Width	3.5
Length	4

Milton Industries - S-1062 - Documents and Downloads

Milton Industries S-1062 Catalog Pages	Download and View
Milton Industries S-1062 Other Document 1	Download and View
