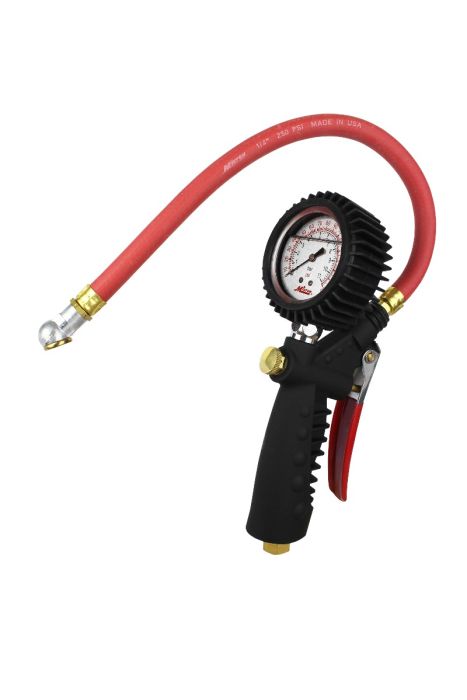

Milton Industries S-575A | Inflator Gauge, Analog, Ball Foot Air

No need to worry about batteries with this analog inflator gauge, filled with liquid (silicone oil) that provides optimal accuracy, pressure spike prevention, and a cushioned tick to optimize the lifespan of the mechanical parts inside the gauge. This also has a deflate button for when you overshoot the pressure. It comes with a 15 inch hose and a Ball Foot Air Chuck, great for hard-to-reach valves. The dial gauge is fitted with a rubber boot which protects it from corrosion, impacts, and shocks. INCLUDES:- Analog inflator gauge with rugged comfort-grip handle, shock-resistant protective rubber boot, deflate button, 15" hose, and chuck. (Assembly required.) PRODUCT SPECIFICATIONS: Gauge: Resolution: 2 PSI Diameter: 2.75" Units of measure: PSI (0-160), Bar (0-11) Liquid filled: silicone based oil Handle: reinforced coated nylon Trigger: plated steel with PVC grip Fittings and deflate button: solid brass Product dimensions (w/o hose): 9.9 x 4.6 x 1.6 (L x W x H) Hose: 1/4" ID x 15" EPDM rubber w/ brass fittings Operating temperature: -4 to +158 degrees F (-20 to +70 C) Air inlet: 1/4" NPT female (Milton 727 plug sold separately) CONSTRUCTION: No need to worry about batteries with this durable analog inflator gauge! Protective rubber boot to shield against impacts. Comfort molded nylon handle with coating is incredibly durable and ergonomic. Steel inflator trigger with separate brass deflation button for quick fine tuning in case you go past your target pressure. Solid brass fittings throughout provide long-lasting performance, with 1/4" NPT female air inlet (Milton 727 plug is recommended). DRIVE SAFELY: Maintaining proper tire pressures improves vehicle handling, reduces risk of tire failure, improves fuel economy, and increases the life of your tires. Assembled in the USA from global & domestic sourced materials. Warranty: 1 year

Milton Industries - S-575A - Features

• INFLATOR GAUGE ANALOG W/BALL FOOT AIR

Milton Industries - S-575A - Overview

• ACCURATE: Liquid gauge measures in PSI (0-160) and Bar (0-11). Meets ANSI/ASME B40.1 standards.
• WHY LIQUID? Absorbs vibration/pressure spikes, reduces wear, and is better in corrosive environments.
• EASY HANDLING: Durable/ergonomic grip. Quick fine tuning in case you exceed the target pressure.
• BALL CHUCK: 360 degree swivel and 15" hose easily fits into motorcycle wheels and other tight places.
• SOLID BRASS FITTINGS: Long-lasting performance, 1/4" NPT (F) air inlet. Milton 727 plug recommended.
• Milton  S-575A Pro Analog Pistol Grip Inflator Gauge - Ball Foot Chuck and 15" Hose - 160 PSI

Milton Industries - S-575A - Related Products

• Milton 120 AMP Battery Tester for 6/12V Batteries
• Milton 7/16" Hose Ferrule Crimping Die
• Milton 13/16" Hose Ferrule Crimping Die
• Milton Original Dual-Head Chuck Tire Inflator Gauge - 15" Hose (Single Retail Pack)
• Milton Straight Foot Chuck Tire Inflator Gauge - 15" Hose, Lock-On Threads (Single Retail Pack)

Milton Industries - S-575A - Specifications

Order Part Number	MIS-575A
Item Desc	Industries Inflator Gauge Analog W/Ball Foot Air
Product Group Id	MI00
MS Bin Code	EG198
Default Selling Unit	EA
Status	Y
Short Description	Milton  S-575A Pro Analog Pistol Grip Inflator Gauge - Ball Foot Chuck and 15" Hose - 160 PSI
Number of Items in This Pack	1
UPC Code	030937323088
Made in USA	Yes
Gauge Type	No
NPT thread size	1/4" Female NPT
Chuck Style	No
Thread Size	1/4" - 18 NPT
Display on Bloguns CMS Page	No
Hose Length	15 in. Hose
Manufacturer	Milton Industries Inc.
Height	1.60"
Width	4.60"
Length	9.90"
PSI range	0 - 160 PSI
Material Type	Brass (Solid)
Rubber boot	Yes (Protective Rubber Boot for Dial)
Deflator valve included	Yes
