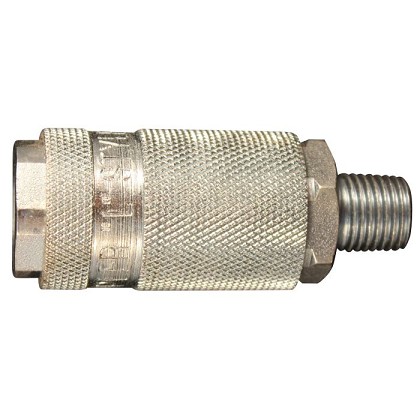

Milton 794 | L-Style Coupler, 1/4" NPT Male

1/4" MNPT L style coupler has a 1/4" basic flow size and is steel plated to resist rust. Accepts the following Milton L style plugs: #792 and #791.

Milton Industries - 794 - Features

• Made in USA
• Coupler Fitting
• Type L-Style, Push-Type
• Size A 1/4 Inch
• Size B 1/4 Inch
• End Connection Male Threaded x Male Threaded
• Material Plated Steel, Buna-N (Seal)
• Pressure Rating 300 PSI
• Airflow Rate 32 SCFM
• Packaging Type Boxed
• Maximum inlet pressure: 300 PSI
• Maximum temperature: 250° F
• Air flow: 32 SCFM
• Seals, Buna-N
• Threads, NPT
• Lincoln Interchange Series 1/4" Basic Size.All "L" style couplers are steel, plated to resist rust.

Milton Industries - 794 - Overview

• Maximum inlet pressure of 300 pounds per square inch
• Push type sleeve release
• Maximum air flow of 32 standard cubic feet per minute
• 1/4" male National pipe thread
• Buna-N seal
• 1/4" Male Body L-Style

Milton Industries - 794 - Additional Information

• Airflow Rate 32 SCFM
• Packaging Type Boxed

Milton Industries - 794 - Related Products

• Milton 1/4" FNPT Dual Head Air Chuck (690)
• Milton 1/4" FNPT Dual-Head Air Chuck (Pack of 10)
• Milton 1/4" FNPT Dual Head Air Chuck (Box of 50)
• Milton 1/4" NPT Button-Style Blow Gun (Box of 10)
• Milton Safety Blow Gun & 4" Extension

Milton Industries - 794 - Specifications

Order Part Number	MI794
Item Desc	L-Style Coupler 1/4 In NPT Male
Individual Item Quantity	10 per Pack
Manufacturer Long Name	Milton Industries, Inc.
Manufacturer Part Number	794
UPC	309373027004
Product Group Id	MI00
Country of Origin	US
UNSPSC	27131613
Short Description	1/4" Male Body L-Style
Grouped Product Package Type	794 - Box of 10
Number of Items in This Pack	10
Made in USA	Yes
Type	Coupler
Display on Bloguns CMS Page	No
Push type coupler connection	Push type coupler
Basic Flow Size	1/4" Basic Flow Size
Connection Type	No
Maximum PSI	No
NPT thread size	No
Height	1.08
Width	1.08
Length	2.66
SCFM	Air Flow 32 SCFM
Material Type	No

Milton Industries - 794 - Package Information

Package/Shipping Quantity

1 per Card
