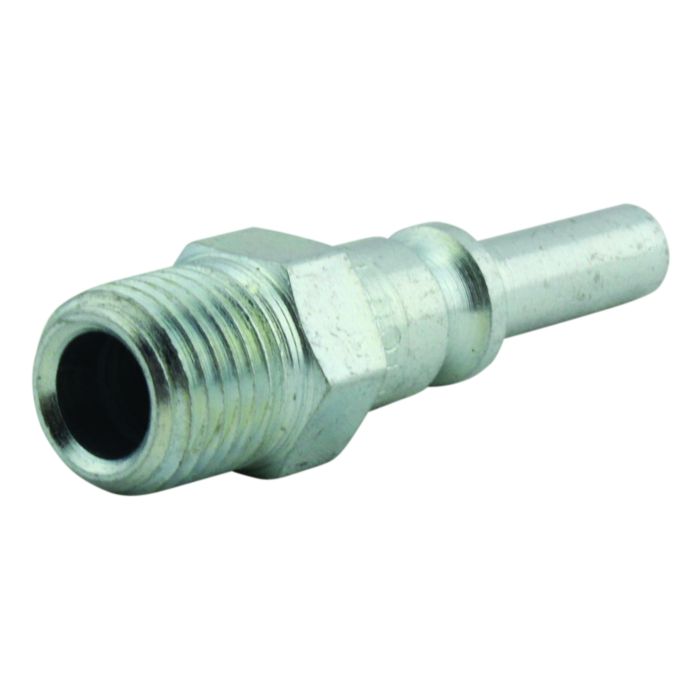

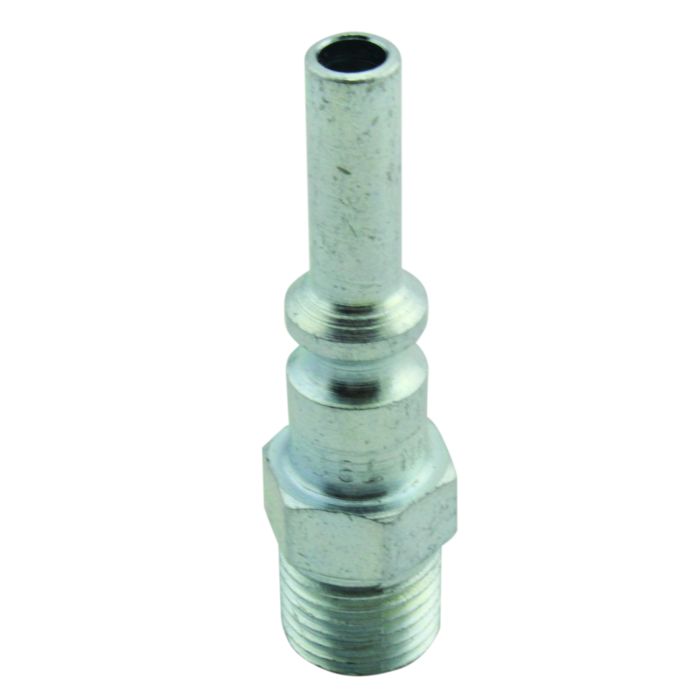

Milton 791 | L-Style Plug, 1/4" NPT Male

1/4" MNPT L style plugs are case hardened steel plated to resist rust and have a working pressure of up to 300 PSI. 1/4" basic flow size with air flow of 32 SCFM.

Milton Industries - 791 - Features

• Made in USA
• Plug Fitting
• Type L-Style
• Nominal Pipe Size 1/4 Inch
• End Connection Male Threaded
• Material Case Hardened Steel, Buna-N (Seal)
• Pressure Rating 300 PSI
• Temperature Rating 250 Deg F
• Application Air Shop
• Airflow Rate 32 SCFM
• Packaging Type Boxed
• Maximum inlet pressure: 300 PSI
• Maximum temperature: 250? F
• Air flow: 34 SCFM
• Seals, Buna-N
• Threads, NPT
• Lincoln Interchange Series 1/4" Basic Size.All "L" style plugs are case hardened steel, plated to resist rust.

Milton Industries - 791 - Overview

• Push type sleeve release
• Maximum working temperature of up to 300 pounds per square inch
• Air flow of 32 standard cubic feet per minute
• Maximum recommended temperature of 250 degrees Fahrenheit
• For use in air shop only
• 1/4" MALE "L" PLUG

Milton Industries - 791 - Additional Information

• Airflow Rate 32 SCFM
• Packaging Type Boxed

Milton Industries - 791 - Related Products

• Milton 1/4" FNPT Dual Head Air Chuck (690)
• Milton 1/4" FNPT Dual-Head Air Chuck (Pack of 10)
• Milton 1/4" FNPT Dual Head Air Chuck (Box of 50)
• Milton 1/4" NPT Button-Style Blow Gun (Box of 10)
• Milton Safety Blow Gun & 4" Extension

Milton Industries - 791 - Specifications

Order Part Number	MI791
Item Desc	L-Style Plug 1/4 In NPT Male
Individual Item Quantity	10 per Pack
Manufacturer Long Name	Milton Industries, Inc.
Manufacturer Part Number	791
UPC	309373026878
Product Group Id	MI00
Country of Origin	US
UNSPSC	27131600
Short Description	1/4" MALE "L" PLUG
Grouped Product Package Type	791 - Box of 10
Number of Items in This Pack	10
Made in USA	Yes
Type	Plug
Display on Bloguns CMS Page	No
Basic Flow Size	1/4" Basic Flow Size
Connection Type	No
Maximum PSI	No
NPT thread size	1/4" Male NPT
Height	0.5625
Width	0.5625
Length	2.25
SCFM	Air Flow 32 SCFM
Material Type	No
Style	L-Style

Milton Industries - 791 - Package Information

Package/Shipping Quantity

2 per Card
