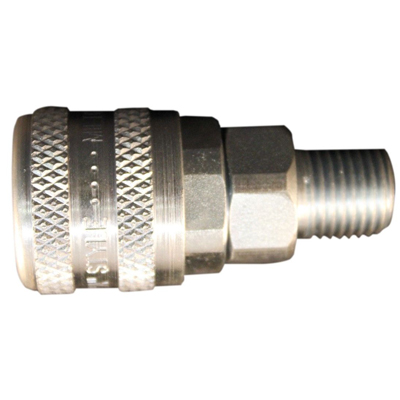

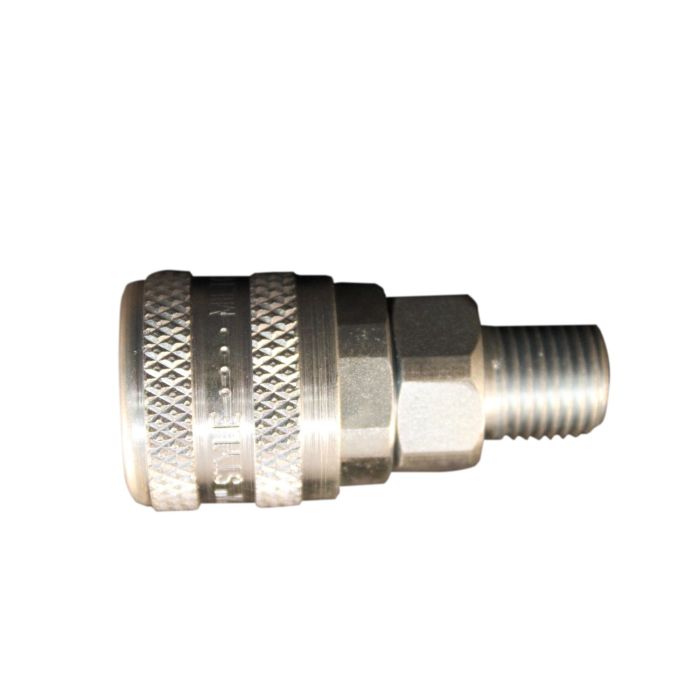

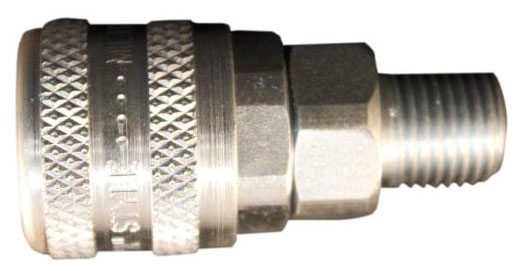

Milton 776 | A-Style ARO "210" Coupler, 1/4" NPT Male

1/4" MNPT A style push type coupler is a push type coupler; simply push plug into coupler to engage, pull sleeve back to remove. Steel is plated to resist rust. Accepts the following Milton A style plugs - #778, #777, #777-4, #777-6, #1777-4 and #1777-6.

Milton Industries - 776 - Features

• Made in USA
• Coupler Fitting
• Type A-Style, Push-Type
• Size A 1/4 Inch
• Size B 1/4 Inch
• End Connection Male Threaded x Male Threaded
• Material Case Hardened Plated Steel, Buna-N (Seal)
• Pressure Rating 300 PSI
• Temperature Rating 250 Deg F
• Airflow Rate 34 SCFM
• Packaging Type Boxed
• A-style couplers are push type
• A-style coupler bodies are steel, plated to resist rust
• A-style plugs are case hardened steel, plated to resist rust
• Maximum inlet pressure: 300 PSI
• Maximum temperature: 250° F
• Air flow: 34 SCFM
• Seals: Buna-N
• 1/4" NPT Male Connection
• Coupler - A Style ARO "210" Style Series 1/4 Male Basic Size

Milton Industries - 776 - Overview

• 1/4" male national pipe thread
• Air flow of 34 standard cubic feet per minute
• Maximum inlet pressure of 300 pounds per square inch
• Buna-N seal
• Maximum temperature of 250 degrees Fahrenheit
• 1/4" Male Body A-Style

Milton Industries - 776 - Additional Information

• Airflow Rate 34 SCFM
• Packaging Type Boxed

Milton Industries - 776 - Related Products

• Milton 1/4" FNPT Dual Head Air Chuck (690)
• Milton 1/4" FNPT Dual-Head Air Chuck (Pack of 10)
• Milton 1/4" FNPT Dual Head Air Chuck (Box of 50)
• Milton 1/4" NPT Button-Style Blow Gun (Box of 10)
• Milton Safety Blow Gun & 4" Extension

Milton Industries - 776 - Specifications

Order Part Number	MI776
Item Desc	Coupler - A Style ARO "210" Style Series 1/4 Male Basic Size
Individual Item Quantity	10 per Pack
Manufacturer Long Name	Milton Industries, Inc.
Manufacturer Part Number	776
UPC	309373024652
Product Group Id	MI00
Country of Origin	US
UNSPSC	27131613
Short Description	1/4" Male Body A-Style
Grouped Product Package Type	776 - Box of 10
Number of Items in This Pack	10
Made in USA	Yes
Type	Coupler
Display on Bloguns CMS Page	No
Push type coupler connection	Push type coupler
Basic Flow Size	1/4" Basic Flow Size
Connection Type	No
Maximum PSI	No
NPT thread size	1/4" Male NPT
Height	1
Width	1
Length	2
SCFM	Air Flow 34 SCFM
Material Type	No

Milton Industries - 776 - Package Information

Package/Shipping Quantity

1 per Card

Milton Industries - 776 - Documents and Downloads

Milton Industries 776 Catalog Pages

Download and View
