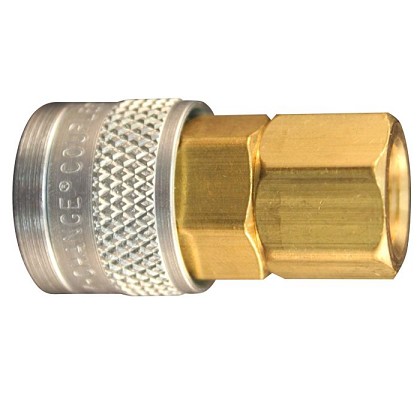

Milton 755 | M-Style Push-Type Coupler, 1/4" NPT Female

1/4" FNPT M-Style push type couplers are easy to use; simply push plug into coupler to engage, pull sleeve back to remove. Features a steel drag guard to prevent accidental uncoupling. M-Style couplers have a 1/4" basic flow size and air flow of 40 SCFM.

Milton Industries - 755 - Features

• M style push type couplers are easy to use
• simply push plug into coupler to engage, pull sleeve back to remove. Features a steel drag guard to prevent accidental uncoupling
• Made in USA
• Coupler Fitting
• Type M-Style, Push-Type
• Size A 1/4 Inch
• Size B 1/4 Inch
• End Connection Female Threaded x Female Threaded
• Material Solid Brass, Buna-N (Seal)
• Pressure Rating 300 PSI
• Temperature Rating 250 Deg F
• Airflow Rate 40 SCFM
• Packaging Type Boxed
• Brass body for rust resistance.
• Steel sleeve for extra heavy-duty uses.
• First Push-Type industrial interchange coupler with Drag Guard feature which virtually eliminates accidental disconnection.
• Milton "M" Style "Kwik-Change" couplers and plugs will interchange with all manufacturers who comply with the dimensional requirements of Military Specification MIL-C-4109.
• M-Style Coupler - 1/4 In NPT Female Push Type

Milton Industries - 755 - Overview

• 1/4" female national pipe thread
• Air flow of 40 standard cubic feet per minute
• Maximum pressure of 300 pounds per square inch
• Maximum temperature of 250 degrees Fahrenheit
• Buna-N seal
• 1/4" F. Push Type Body M-Style

Milton Industries - 755 - Additional Information

• Airflow Rate 40 SCFM
• Packaging Type Boxed

Milton Industries - 755 - Related Products

• Milton 1/4" FNPT Dual Head Air Chuck (690)
• Milton 1/4" FNPT Dual-Head Air Chuck (Pack of 10)
• Milton 1/4" FNPT Dual Head Air Chuck (Box of 50)
• Milton 1/4" NPT Button-Style Blow Gun (Box of 10)
• Milton Safety Blow Gun & 4" Extension

Milton Industries - 755 - Specifications

Order Part Number	MI755
Item Desc	M-Style Coupler - 1/4 In NPT Female Push Type
Individual Item Quantity	10 per Pack
Manufacturer Long Name	Milton Industries, Inc.
Manufacturer Part Number	755
UPC	309373024348
Product Group Id	MI00
Country of Origin	US
UNSPSC	27131613
Short Description	1/4" F. Push Type Body M-Style
Grouped Product Package Type	755 - Box of 10
Number of Items in This Pack	10
Made in USA	Yes
Type	Coupler
Display on Bloguns CMS Page	No
Basic Flow Size	1/4" Basic Flow Size
Connection Type	No
Maximum PSI	No
NPT thread size	1/4" Female NPT
Height	0.99
Width	0.99
Length	1.84
SCFM	Air Flow 40 SCFM
Material Type	No
Style	M-STYLE

Milton Industries - 755 - Package Information

Package/Shipping Quantity

1 per Card
