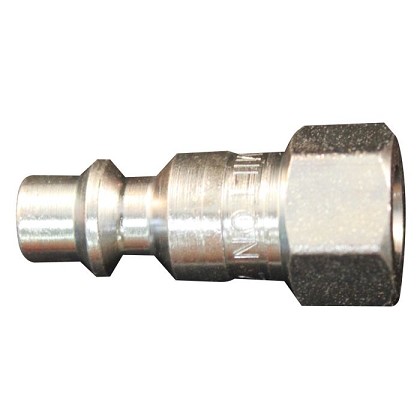

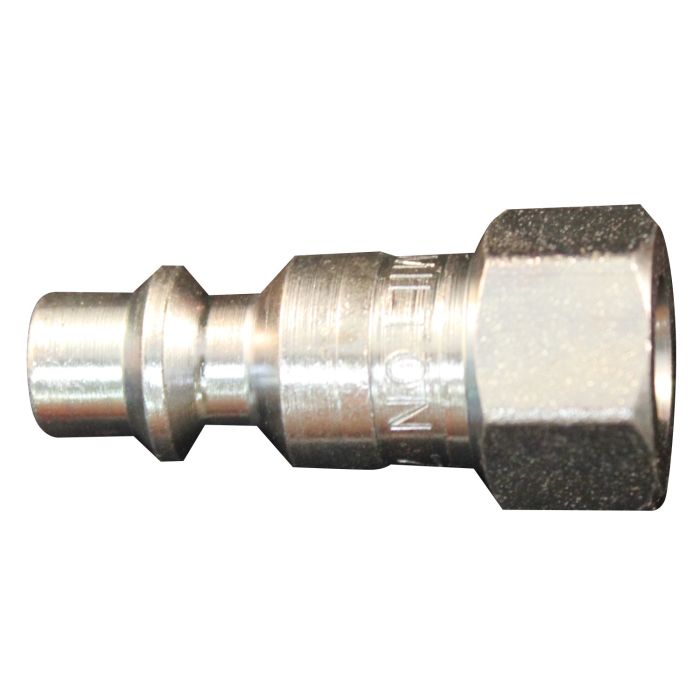

Milton 731 | M-Style Female Re-Cap Plug, .305-32 NPT

M-Style recapper plugs thread directly onto tire valve thread. These steel recapper plugs have a .305-32 recap thread size and offer up to 40 SCFM. M-Style plugs have a 1/4" basic flow size and a maximum inlet pressure of 300 PSI.

Milton Industries - 731 - Features

• Made in USA
• Recapper Plug Fitting
• Type M-Style
• Nominal Pipe Size 1/4 Inch
• End Connection Female Threaded
• Material Case Hardened Steel, Buna-N (Seal)
• Pressure Rating 300 PSI
• Temperature Rating 250 Deg F
• Application Industrial, Military
• Applicable Standard MIL-C-4109, AA-59439, ISO 6150 B
• Airflow Rate 40 SCFM
• Packaging Type Boxed
• Milton M-Style "Kwik-change" couplers and plugs will interchange with all manufacturers who comply with the dimensional requirements of military specification MIL-C-4109.
• M-style plugs are case hardened steel, plated to resist rust.
• Maximum inlet pressure: 300 PSI
• Maximum temperature: 250° F
• Air flow: 40 SCFM
• Seals: Buna-N
• M-Style Plug - Female Re-Cap .305-32 NPT

Milton Industries - 731 - Overview

• Maximum inlet pressure of 300 pounds per square inch
• 40 standard cubic feet per minute
• Maximum temperature of 250 degrees Fahrenheit
• Re-Cappers F. Plug M-Style

Milton Industries - 731 - Additional Information

• Airflow Rate 40 SCFM
• Packaging Type Boxed

Milton Industries - 731 - Related Products

• Milton 1/4" FNPT Dual Head Air Chuck (690)
• Milton 1/4" FNPT Dual-Head Air Chuck (Pack of 10)
• Milton 1/4" FNPT Dual Head Air Chuck (Box of 50)
• Milton 1/4" NPT Button-Style Blow Gun (Box of 10)
• Milton Safety Blow Gun & 4" Extension

Milton Industries - 731 - Specifications

Order Part Number	MI731
Item Desc	M-Style Plug - Female Re-Cap .305-32 NPT
Individual Item Quantity	10 per Pack
Manufacturer Long Name	Milton Industries, Inc.
Manufacturer Part Number	731
UPC	309373023808
Product Group Id	MI00
Country of Origin	US
UNSPSC	27131600
Short Description	Re-Cappers F. Plug M-Style
Grouped Product Package Type	731 - Box of 10
Number of Items in This Pack	10
Made in USA	Yes
Type	Plug
Display on Bloguns CMS Page	No
Kit Quantity	10
Basic Flow Size	1/4" Basic Flow Size
Connection Type	No
Maximum PSI	No
NPT thread size	No
Height	0.56
Width	0.56
Length	1.32
SCFM	Air Flow 40 SCFM
Material Type	No

Milton Industries - 731 - Package Information

Package/Shipping Quantity

2 per Card
