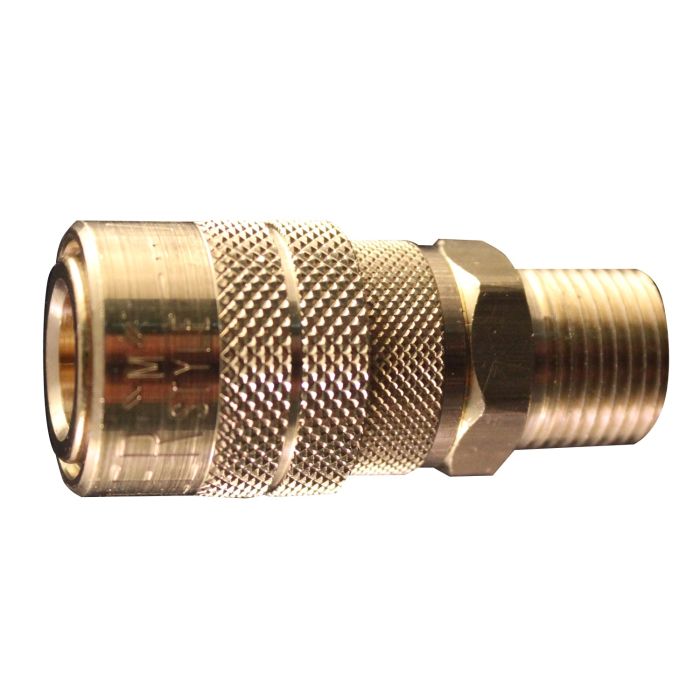

Milton 719 | M-Style Male Coupler, 3/8" NPT

3/8" MNPT M-Style couplers offer a 1/4" basic flow size and a maximum pressure of 300 PSI. The industry standard M-Style couplers come with a Buna-N seal. Air flow of 40 SCFM.

Milton Industries - 719 - Features

• Made in USA
• Coupler Fitting
• Type M-Style
• Size A 3/8 Inch
• Size B 3/8 Inch
• End Connection Male Threaded x Male Threaded
• Material Solid Brass, Buna-N (Seal)
• Pressure Rating 300 PSI
• Temperature Rating 250 Deg F
• Airflow Rate 40 SCFM
• Packaging Type Boxed
• Max. inlet pressure, 300 PSI.
• Seals, Buna-N.
• Threads, NPT.
• Warning: For use with shop air only.
• M style bodies are brass, with brass sleeves.

Milton Industries - 719 - Overview

• 3/8" Male national pipe thread
• Maximum pressure of 300 pounds per square inch
• Air flow of 40 standard cubic feet per minute
• Maximum temperature of 250 degrees Fahrenheit
• Kwik-Change coupler
• 3/8" Male Body M-Style

Milton Industries - 719 - Additional Information

• Airflow Rate 40 SCFM
• Packaging Type Boxed

Milton Industries - 719 - Related Products

• Milton 1/4" FNPT Dual Head Air Chuck (690)
• Milton 1/4" FNPT Dual-Head Air Chuck (Pack of 10)
• Milton 1/4" FNPT Dual Head Air Chuck (Box of 50)
• Milton 1/4" NPT Button-Style Blow Gun (Box of 10)
• Milton Safety Blow Gun & 4" Extension

Milton Industries - 719 - Specifications

Order Part Number	MI719
Item Desc	Male Coupler "M" Style 3/8 In
Individual Item Quantity	10 per Pack
Manufacturer Long Name	Milton Industries, Inc.
Manufacturer Part Number	719
UPC	309373023280
Product Group Id	MI00
Country of Origin	US
UNSPSC	27131613
Short Description	3/8" Male Body M-Style
Grouped Product Package Type	719 - Box of 10
Number of Items in This Pack	10
Made in USA	Yes
Type	Coupler
Display on Bloguns CMS Page	No
Basic Flow Size	1/4" Basic Flow Size
Connection Type	No
Maximum PSI	300 PSI
NPT thread size	3/8" Male NPT
Height	0.94
Width	0.94
Length	2.13
SCFM	Air Flow 40 SCFM
Material Type	No
Style	M-STYLE

Milton Industries - 719 - Package Information

Package/Shipping Quantity

1 per Card
