Milton 716 | Male Coupler M-Style - 1/4 Inch

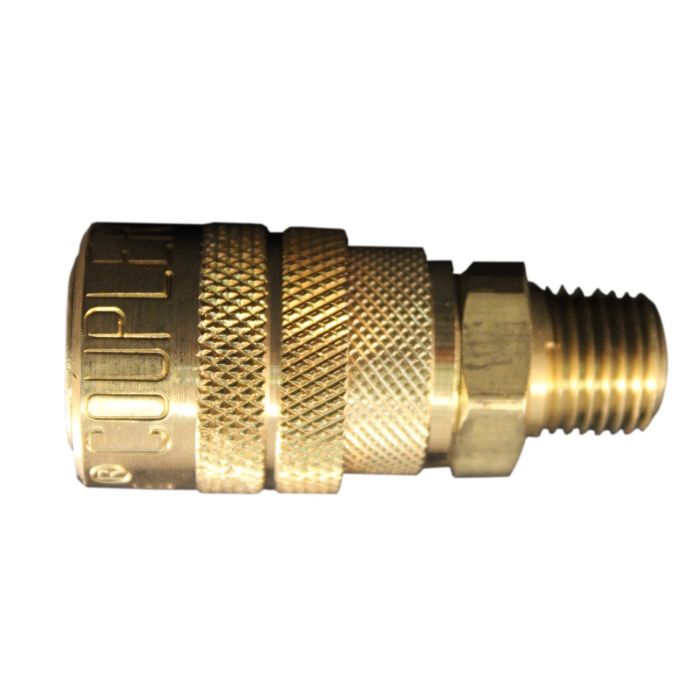

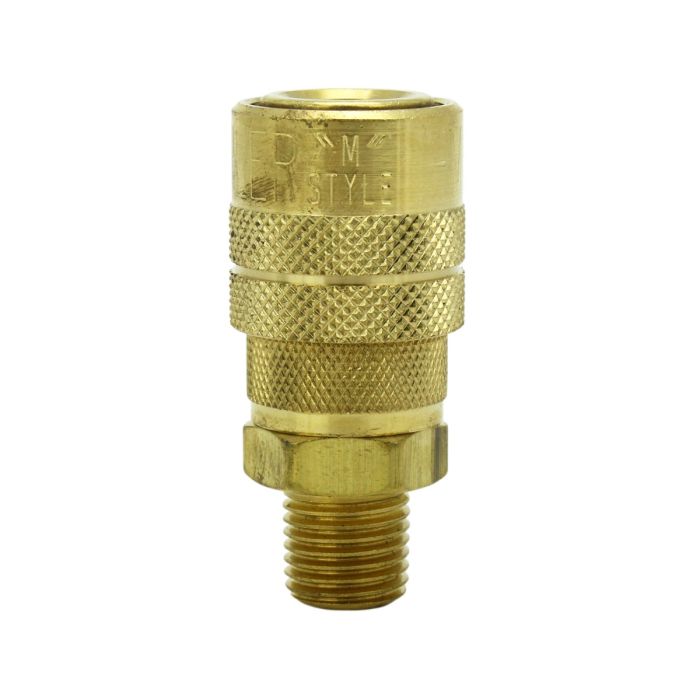

Milton (#716) 1/4" MNPT Male M-Style KWIK-CHANGE Coupler Milton is proud to be the creator and leader of the pneumatic industry standard M-Style coupler. This 1/4" MNPT M-Style brass coupler has a 1/4" basic flow size, offering a maximum of 300 PSI. Comes with Buna-N seal and air flow of 40 SCFM. Both the body and sleeve are made of brass. You can also find this S-716 air coupler included in these Milton coupler/plug and accessory kits: #S-221, S-222, MK1669-1, 683-MCPK. Milton M-Style KWIK-CHANGE couplers are made of brass, while M-Style KWIK-CHANGE plugs are made of case-hardened steel and are plated to resist rust. This collection of couplers and plugs: - Will interchange with all manufacturers who comply with the dimensional requirements of military specification MIL-C-4109. Offer a maximum airflow of 40 standard cubic feet per minute (except for select Push Button options). Offer a maximum of 300 pounds per square inch. Can withstand a max temperature of 250 degrees Fahrenheit.

Milton Industries - 716 - Features

• M-STYLE The industry standard coupler. Milton M-style, ColorFit M-style, red competitor couplers/plugs are all compatible
• KWIK-CHANGE Interchangeable/compatible with most manufacturers. Easy push to connect
• Made in USA
• Coupler Fitting
• Type M-Style
• Size A 1/4 Inch
• Size B 1/4 Inch
• End Connection Male Threaded x Male Threaded
• Material Durable Brass, Buna-N (Seal)
• Pressure Rating 300 PSI
• Temperature Rating 250 Deg F
• Airflow Rate 40 SCFM
• Packaging Type Boxed
• Max. inlet pressure, 300 PSI.
• Seals, Buna-N.
• Threads, NPT.
• Warning: For use with shop air only.
• M style bodies are brass, with brass sleeves.

Milton Industries - 716 - Overview

• M-Style: The industry standard coupler. Milton M-Style, ColorFit M-Style, + red competitor couplers/plugs are all compatible.
• KWIK-CHANGE: Interchangeable/compatible with most manufacturers. Easy push to connect.
• NPT: 1/4" male national pipe thread flow size. Durable brass. Buna-N seals.
• MAXIMUM: 40 standard cubic feet per minute (SCFM). 300 PSI inlet pressure. Temperatures up to 250 degrees F.
• INCLUDED IN Milton M-Style KITS: #S-221, S-222, MK1669-1, 683-MCPK.
• Milton (716) 1/4" MNPT Male M-Style KWIK-CHANGE Coupler

Milton Industries - 716 - Additional Information

• Airflow Rate 40 SCFM
• Packaging Type Boxed

Milton Industries - 716 - Related Products

• Milton 1/4" FNPT Dual Head Air Chuck (690)
• Milton 1/4" FNPT Dual-Head Air Chuck (Pack of 10)
• Milton 1/4" FNPT Dual Head Air Chuck (Box of 50)
• Milton 1/4" NPT Button-Style Blow Gun (Box of 10)
• Milton Safety Blow Gun & 4" Extension

Milton Industries - 716 - Specifications

Order Part Number	MI716
Item Desc	Male Coupler `M` Style 1/4 In

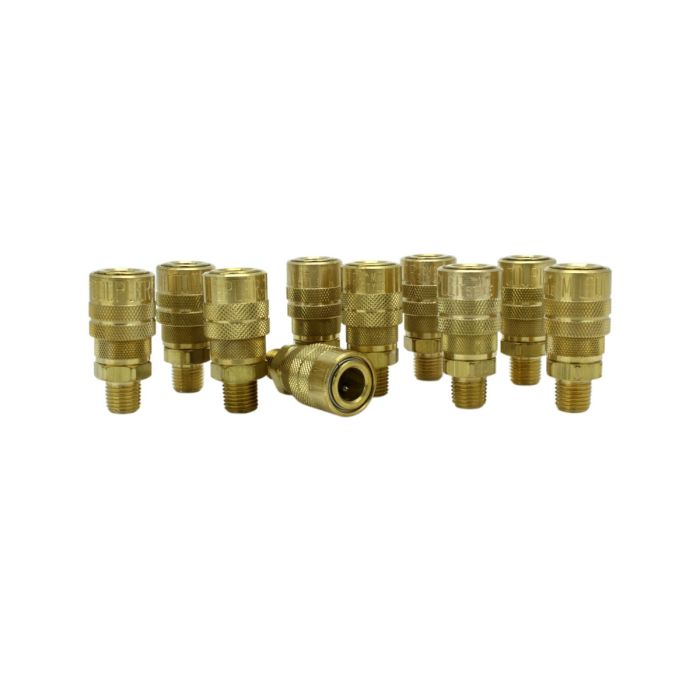

Individual Item Quantity	10 per Pack
Manufacturer Long Name	Milton Industries, Inc.
Manufacturer Part Number	716
UPC	309373022818
Product Group Id	MI00
Country of Origin	US
UNSPSC	27131613
Short Description	Milton (716) 1/4" MNPT Male M-Style KWIK-CHANGE Coupler
Grouped Product Package Type	716 - Box of 10
Number of Items in This Pack	10
Made in USA	Yes
Type	Coupler
Display on Bloguns CMS Page	No
Kit Quantity	10
Basic Flow Size	1/4" Basic Flow Size
Connection Type	No
Maximum PSI	300 PSI
NPT thread size	1/4" Male NPT
Height	0.94
Width	0.94
Length	2.06
SCFM	Air Flow 40 SCFM
Material Type	No

Milton Industries - 716 - Package Information

Package/Shipping Quantity

1 per Card

Milton Industries - 716 - Documents and Downloads

Milton Industries 716 Catalog Pages

Download and View
