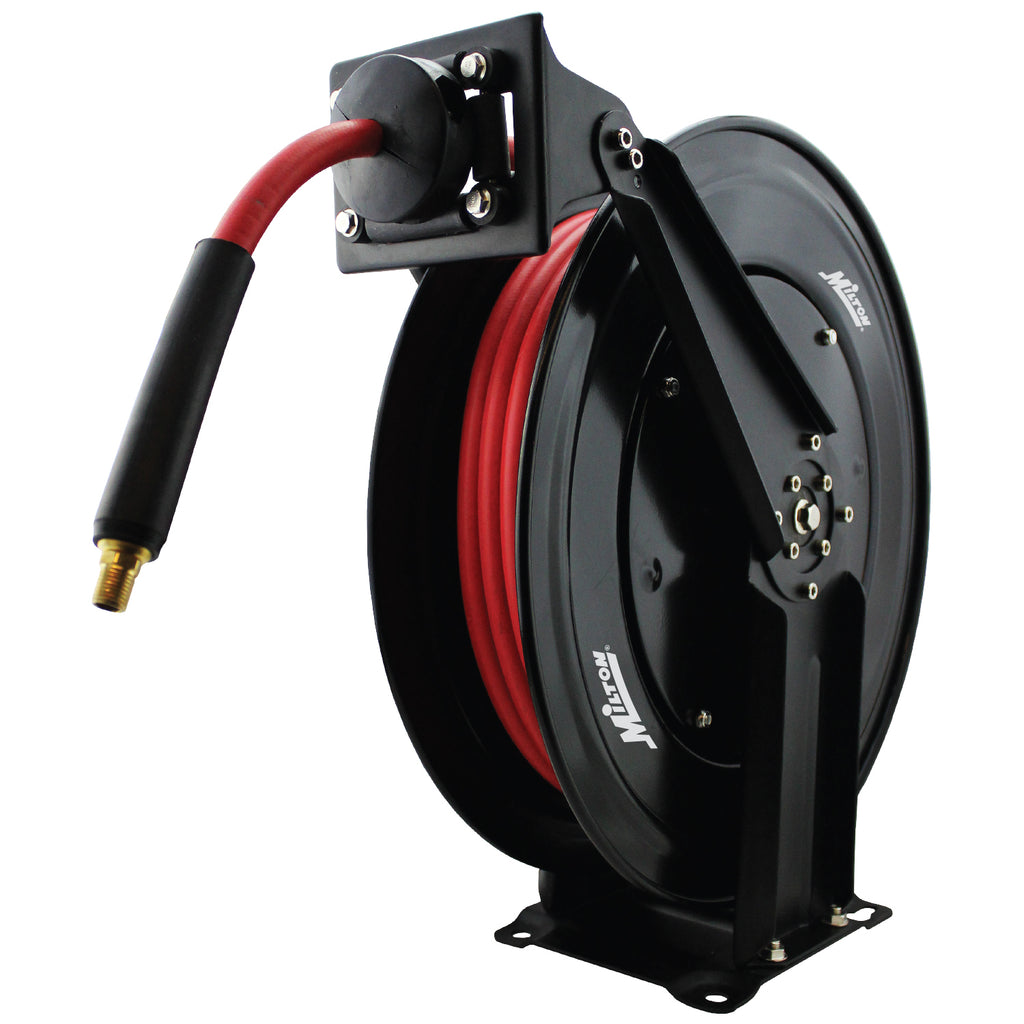

Milton 2760-50D | 50 ft. by 3/8" I.D. Dual Arm Hose Reel

Keep your shop organized and eliminate air hose tripping hazards with this 50-foot, 3/8" Milton 2760-50D Steel Dual-Arm Auto-Retracting air hose reel. These reels are built to last, with all steel construction, a sturdy dual arm design, solid brass fittings, and a 3/8" x 50' EPDM rubber hose that is rated to 300 PSI. Great for most everyday applications.

Milton - 2760-50D - Product Categories

• Air Accessories
• Air Hose Reels

Milton - 2760-50D - Overview

• Operation:
• Simply pull out hose to the desired length, listening for the clicks. Hose reel has 12 clicks per rotation to lock in place at nearly any length. To retract, simply pull a little more hose until the clicks stop, then guide the hose back into the reel as it retracts.
• Caution: Never let the hose whip back into the reel unguided. When hanging from a ceiling, use the adjustable ball stop so the hose is high enough that it is out of your way, yet still within reach.
• Reel
• -Powder coated steel frame and reel
• -Automatic recoil with adjustable ball stop
• -Dual arm design for added rigidity
• -Nylon roller guides for smooth pulling in any direction
• -12 ratchet positions per revolution
• -Solid brass fittings
• -Air inlet: 1/4" NPT female
• Hose
• -300 PSI rated nylon-reinforced EPDM rubber
• -3/8" Inner Diameter (ID) hose x 50' length
• -Brass fittings
• -Flexible from -5 to 150 degrees F
• -Air outlet: 1/4" NPT male
• Product dimensions: 19.0 x 8.0 x 19.75 (L x W x H)
• Packaged dimensions: 21.0 x 9.5 x 21.0 (L x W x H)
• Contents:
• -Air hose reel with 3/8" in. x 50 ft. rubber air hose
• -360 degree swivel air inlet valve
• -Pipe thread sealing tape
• -OperatorÕs manual
• Warranty: 1 year. Maintenance free design.
• Air Hose Reel
• Item Hose Reel
• Hose Reel Type Spring Driven
• Hose Size 3/8 Inch Inner Diameter
• Hose Length 50 Foot
• Overall Length 19 Inch
• Height 19.75 Inch
• Width 8 Inch
• End Connection 1/4 Inch Female Threaded x 1/4 Inch Male Threaded
• Pressure Rating 300 PSI
• Minimum Temperature Rating -5 Deg F
• Maximum Temperature Rating 150 Deg F
• Hose Material Nylon-Reinforced EPDM Rubber
• Service Air
• Material Powder Coated Steel (Frame/Reel)
• Fitting Material Brass
• Air Flow Rating 25 SCFM
• Kit Contents (1) Hose Reel, (1) EPDM Hose, (1) Mounting Template, (1) Instruction Manual, (1) Adjustable Ball Stop

Milton - 2760-50D - Features

• 2760-50D - Steel Dual Arm Auto-Retractable Hose Reel, 3/8" x 50 ft. Rubber Hose - 300 Max PSI

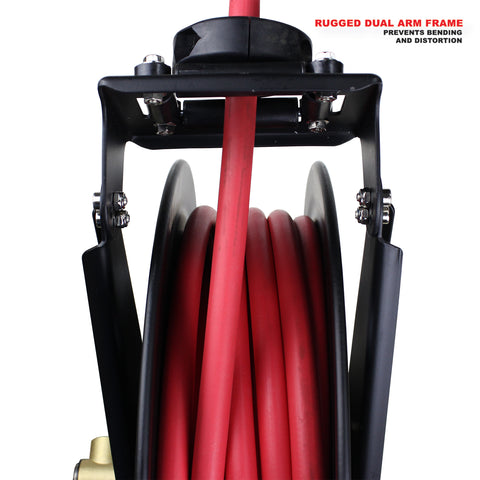

• DUAL ARM:
• Rugged, steel frame resists twisting and kinks better than single arm hose reel designs.

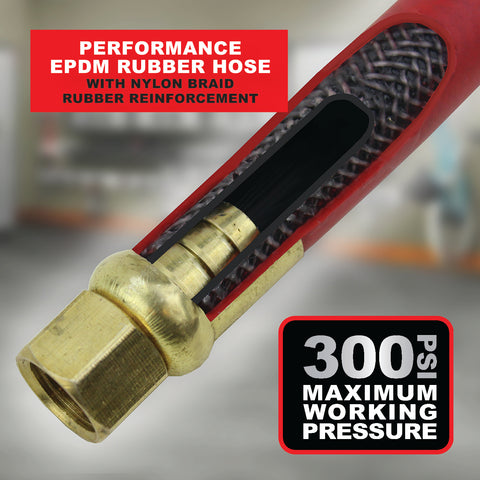

• PERFORMANCE EPDM RUBBER HOSE:
• Stays flexible in cold and resists cracking, abrasion, and chemicals.
• AUTOMATICALLY REWINDS:
• Enclosed spring-powered drive, w/adjustable ball to stop at desired length.
• KEYHOLE MOUNTING SLOTS:
• Designed for easy installation on/off ceilings, walls, benches, or trucks.
• POWDER-COATED PAINT:
• baked on solid brass fittings vs. traditional wet paint, resists chipping.
• Simply pull out hose to the desired length, listening for the clicks. Hose reel has 12 clicks per rotation to lock in place at nearly any length
• To retract, simply pull a little more hose until the clicks stop, then guide the hose back into the reel as it retracts

Milton - 2760-50D - Specifications

Brand Name	Milton Industries
Manufacturer Part Number	2760-50D
Item Description	50 ft. by 3/8" I.D. Dual Arm Hose Reel
UPC	309373221112
Product Group Id	MI00
MS Bin Code	FA175
Default Selling Unit	EA
Shipping Length	21.000 Inch
Shipping Width	9.500 Inch
Shipping Height	21.000 Inch

Milton - 2760-50D - Documents and Downloads

Milton Industries 2760-50D Warranty	Click to View
Milton Industries 2760-50D Catalog Pages	Click to View
