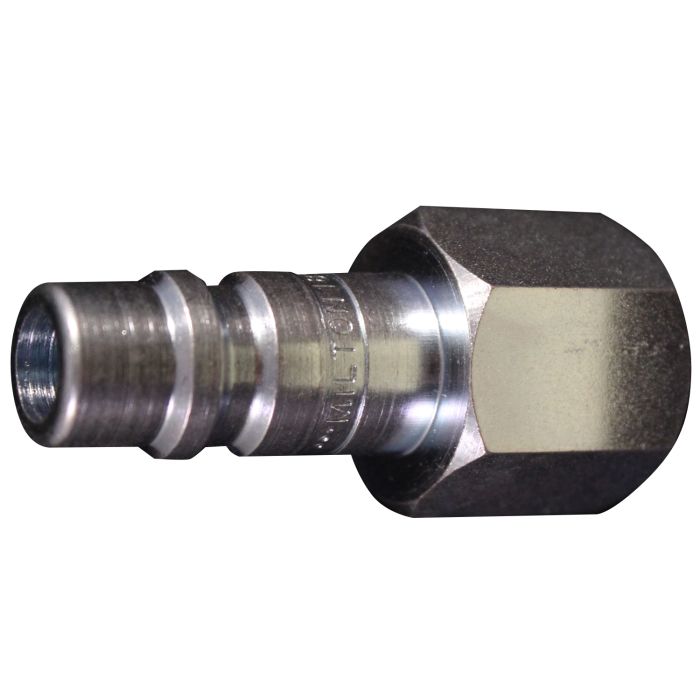

Milton 1860 | G-Style Plug - 3/8 In Female NPT

3/8" FNPT G style plugs are made of case hardened steel and are plated to resist rust. G style plugs offer a basic flow size of 1/2" and a maximum pressure of 300 PSI. With air flow of up to 99 SCFM, G style plugs are perfect for applications that require more than 60 SCFM. Complete with Buna-N seal.

Milton Industries - 1860 - Features

• Made in USA
• Plug Fitting
• Type G-Style
• Nominal Pipe Size 3/8 Inch
• End Connection Female Threaded
• Material Case Hardened Steel, Buna-N (Seal)
• Pressure Rating 300 PSI
• Temperature Rating 250 Deg F
• Application Industrial
• Airflow Rate 99 SCFM
• Packaging Type Boxed
• 1/2" Basic Industrial Interchange "G" Series 3/8" Female Plug.
• Plugs are case hardened steel.
• Treated to resist rust.
• Seals are Buna-N Rubber.
• Bodies work with either Industrial Interchange or Tru-Flate/Parker style plugs.
• G-Style Plug - 3/8 In Female NPT

Milton Industries - 1860 - Overview

• 3/8" female national pipe thread
• Maximum pressure of 300 pounds per square inch
• Air flow of 99 standard cubic feet per minute
• Maximum temperature of 250 degrees Fahrenheit

Milton Industries - 1860 - Additional Information

• Airflow Rate 99 SCFM
• Packaging Type Boxed

Milton Industries - 1860 - Related Products

• Milton Lightweight Pistol Grip Blow Gun, 1/4" NPT, 90 PSI, 13 SCFM (S-163)
• Milton 3/8" FNPT G-Style Plug (Box of 5)

Milton Industries - 1860 - Specifications

Order Part Number	MI1860
Item Desc	G-Style Plug - 3/8 In Female NPT
Individual Item Quantity	5 per Pack
Manufacturer Long Name	Milton Industries, Inc.
Manufacturer Part Number	1860
UPC	309373051214
Product Group Id	MI00
Country of Origin	US
UNSPSC	27131600
Short Description	3/8" Female Plug G-Style
Number of Items in This Pack	5
Made in USA	Yes
Type	Plug
Manufacturer	Milton Industries Inc.
Display on Bloguns CMS Page	No
Basic Flow Size	1/2" Basic Flow Size
Connection Type	No
Maximum PSI	300 PSI
NPT thread size	3/8" Female NPT
Height	0.81
Width	0.81
Length	2.06
SCFM	Air Flow 99 SCFM
Style	G-Style

Milton Industries - 1860 - Documents and Downloads

Milton Industries 1860 Catalog Pages

Download and View
