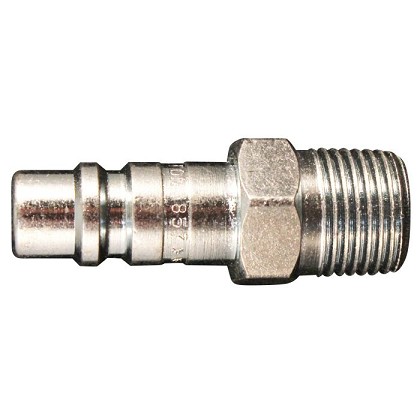

Milton 1857 | G-Style Plug - 1/2 In NPT Male

1/2" MNPT G style plugs are made of case hardened steel and are plated to resist rust. G style plugs offer a basic flow size of 1/2" and a maximum pressure of 300 PSI. With air flow of up to 99 SCFM, G style plugs are perfect for applications that require more than 60 SCFM.

Milton Industries - 1857 - Features

• Made in USA
• Plug Fitting
• Type G-Style
• Nominal Pipe Size 1/2 Inch
• End Connection Male Threaded
• Material Case Hardened Steel, Buna-N (Seal)
• Pressure Rating 300 PSI
• Temperature Rating 250 Deg F
• Application Industrial
• Airflow Rate 99 SCFM
• Packaging Type Boxed
• G-Style Industrial Interchange Series 1/2" Basic.
• Hardened steel, plated to resist rust.
• Maximum inlet pressure: 300 PSI
• Maximum temperature: 250ø F
• Air Flow: 99 SCFM
• Seals: Buna-N
• Thread Type: Male
• NPT Size: 1/2" Male
• G-Style Plug - 1/2 In NPT Male

Milton Industries - 1857 - Overview

• 1/2" male national pipe thread
• Maximum pressure of 300 pounds per square inch
• Air flow of 99 standard cubic feet per minute
• Maximum temperature of 250 degrees Fahrenheit
• 1/2" Male Plug G-Style

Milton Industries - 1857 - Additional Information

• Airflow Rate 99 SCFM
• Packaging Type Boxed

Milton Industries - 1857 - Related Products

• Milton 1/4" FNPT Dual Head Air Chuck (690)
• Milton 1/4" FNPT Dual-Head Air Chuck (Pack of 10)
• Milton 1/4" FNPT Dual Head Air Chuck (Box of 50)
• Milton 1/4" NPT Button-Style Blow Gun (Box of 10)
• Milton Safety Blow Gun & 4" Extension

Milton Industries - 1857 - Specifications

Order Part Number	MI1857
Item Desc	G-Style Plug - 1/2 In NPT Male
Individual Item Quantity	5 per Pack
Manufacturer Long Name	Milton Industries, Inc.
Manufacturer Part Number	1857
UPC	309371185782
Product Group Id	MI00
Country of Origin	US
UNSPSC	27131600
Short Description	1/2" Male Plug G-Style
Grouped Product Package Type	1857 - Box of 5
Number of Items in This Pack	5
Made in USA	Yes
Type	Plug
Display on Bloguns CMS Page	No
Basic Flow Size	1/2" Basic Flow Size
Connection Type	No
Maximum PSI	300 PSI
NPT thread size	1/2" Male NPT
Height	0.875
Width	0.875
Length	2.45
SCFM	Air Flow 99 SCFM
Style	G-Style
