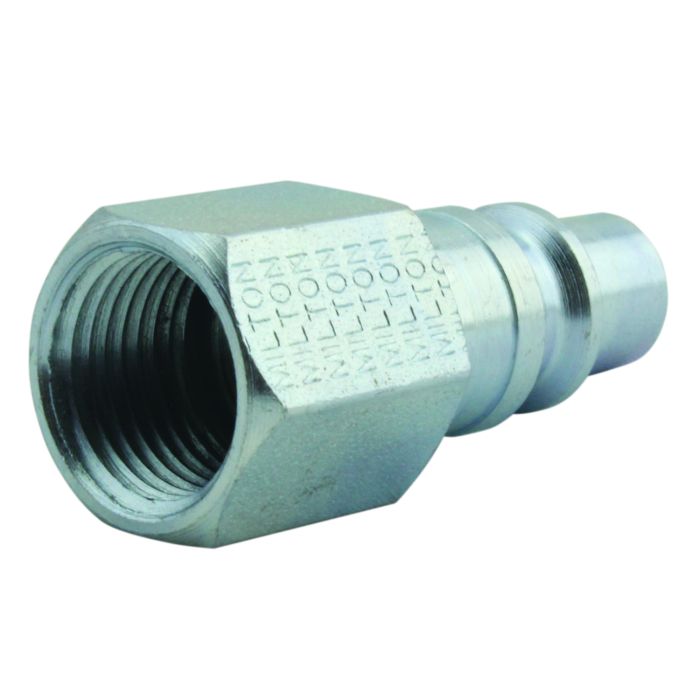

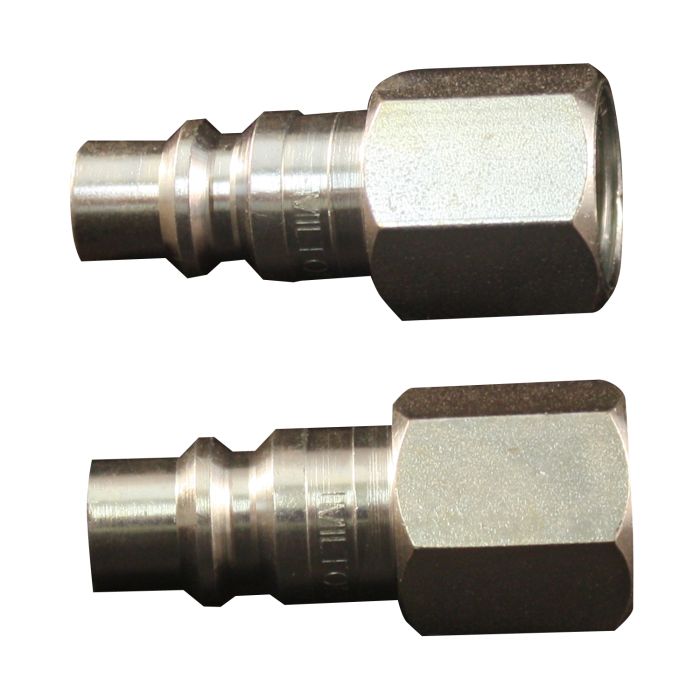

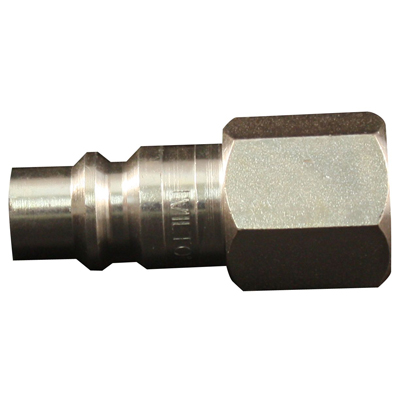

Milton 1838 | H-Style Plug - 3/8 in NPT Female

3/8" FNPT H style plugs are made of case hardened steel and are plated to resist rust. Milton H style plugs have a 3/8" basic flow size and a maximum pressure of 300 PSI. With air flow of up to 67 SCFM, H style couplers and plugs are perfect for larger tool applications that require more SCFM.

Milton Industries - 1838 - Features

• Made in USA
• Push-On and Lock Hose Plug Fitting
• Type H-Style
• Nominal Pipe Size 3/8 Inch
• End Connection Female Threaded
• Material Case Hardened Steel, Buna-N (Seal)
• Pressure Rating 300 PSI
• Temperature Rating 250 Deg F
• Application Industrial
• Airflow Rate 67 SCFM
• Packaging Type Boxed
• H-style plugs are case hardened steel plated to resist rust.
• Maximum inlet pressure: 300 PSI.
• Maximum temperature: 250øF.
• Air flow: 67 SCFM.
• Seals: Buna-N.
• H-Style Plug - 3/8 In NPT Female

Milton Industries - 1838 - Overview

• 3/8" female national pipe thread
• Maximum inlet pressure of 300 pounds per square inch
• Air flow of 67 standard cubic feet per minute
• Maximum temperature of 250 degrees Fahrenheit
• 3/8" FEM. PLUG

Milton Industries - 1838 - Additional Information

• Airflow Rate 67 SCFM
• Packaging Type Boxed

Milton Industries - 1838 - Related Products

• Milton 1/4" FNPT Dual Head Air Chuck (690)
• Milton 1/4" FNPT Dual-Head Air Chuck (Pack of 10)
• Milton 1/4" FNPT Dual Head Air Chuck (Box of 50)
• Milton 1/4" NPT Button-Style Blow Gun (Box of 10)
• Milton Safety Blow Gun & 4" Extension

Milton Industries - 1838 - Specifications

Order Part Number	MI1838
Item Desc	H-Style Plug - 3/8 In NPT Female
Individual Item Quantity	10 per Pack
Manufacturer Long Name	Milton Industries, Inc.
Manufacturer Part Number	1838
UPC	309373050774
Product Group Id	MI00
Country of Origin	US
UNSPSC	27131600
Short Description	3/8" FEM. PLUG
Grouped Product Package Type	1838 - Box of 10
Number of Items in This Pack	10
Made in USA	Yes
Type	Plug
Display on Bloguns CMS Page	No
Basic Flow Size	3/8" Basic Flow Size
Connection Type	No
Maximum PSI	300 PSI
NPT thread size	3/8" Female NPT
Height	0.75
Width	0.75
Length	1.8125
SCFM	Air Flow 67 SCFM
Style	H-Style

Milton Industries - 1838 - Package Information

Package/Shipping Quantity

2 per Card
