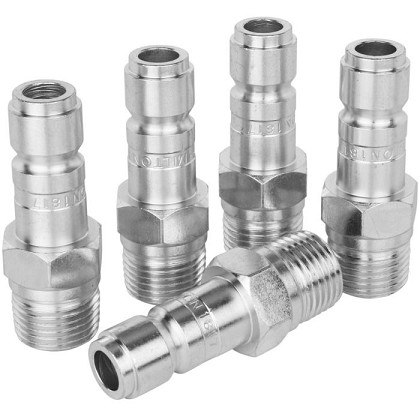

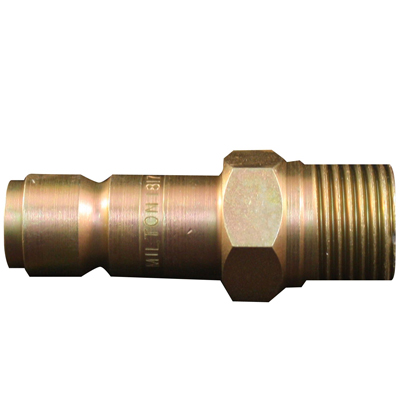

Milton 1817 | G-Style Plug - 1/2 in NPT Male

Milton (#1817) 1/2" NPT Male G-Style Coupler Milton’s G-Style couplers and plugs are the highest SCFM rated and are used in applications that require over 60 SCFM. These 1/2" MNPT G-style plugs are offered in 2 different sizes (.125 or .375 critical profile dimension tip sizes), but both will function the same with G-style couplers. 1/2” MNPT and basic flow size, with a maximum air flow of 99 standard cubic feet per minute and 300 PSI max inlet pressure. Made of durable case-hardened steel and plated to resist rust. You can also find this S-1817 air plug included in this Milton coupler/plug and accessory kit: #S-224 (G-Style Coupler and Plug Kit)

Milton Industries - 1817 - Features

• G-Style Milton's G couplers and plugs have the highest SCFM rating
• Quality Durable steel-plated couplers. Case-hardened steel plugs. Both plated to resist rust and corrosion
• Made in USA
• Plug Fitting
• Type G-Style
• Nominal Pipe Size 1/2 Inch
• End Connection Male Threaded
• Material Steel, Buna-N (Seal)
• Finish Zinc Chromate Coated
• Pressure Rating 300 PSI
• Temperature Rating 250 Deg F
• Application Industrial, Air Shop
• Airflow Rate 99 SCFM
• Packaging Type Boxed
• Basic Size Tru-Flate/Parker Style.
• Interchange Series "G" style plugs are case hardened steel and treated to resist rust.
• These basic bodies work with either industrial interchange or tru-flate/parker style plugs.
• Thread Type: Male
• G-Style Plug - 1/2 In NPT Male

Milton Industries - 1817 - Overview

• G-STYLE: Milton's G couplers and plugs have the highest SCFM rating. (2 styles available, both have same function: S-1817 = .125 tip size)
• BASIC FLOW SIZE: 1/2" body size air fitting. 1/2" NPT. Buna-N seals. (G-Style offered in .125 or .375 critical profile dimension tip sizes.)
• USE: These couplers are intended for air shop use only. Pneumatic applications that require over 60+ SCFM
• MAXIMUM: 99 SCFM air flow. 300 PSI max inlet pressure. Temperatures up to 250 degrees F
• QUALITY: Durable steel-plated couplers. Case-hardened steel plugs. Both plated to resist rust and corrosion
• Milton (1817) 1/2" NPT Male G-Style Plug

Milton Industries - 1817 - Additional Information

• Airflow Rate 99 SCFM
• Packaging Type Boxed

Milton Industries - 1817 - Related Products

• Milton 1/4" FNPT Dual Head Air Chuck (690)
• Milton 1/4" FNPT Dual-Head Air Chuck (Pack of 10)
• Milton 1/4" FNPT Dual Head Air Chuck (Box of 50)
• Milton 1/4" NPT Button-Style Blow Gun (Box of 10)
• Milton Safety Blow Gun & 4" Extension

Milton Industries - 1817 - Specifications

Order Part Number	MI1817
Item Desc	G-Style Plug - 1/2 In NPT Male
Individual Item Quantity	5 per Pack
Manufacturer Long Name	Milton Industries, Inc.
Manufacturer Part Number	1817
UPC	309373049570
Product Group Id	MI00
Country of Origin	US
UNSPSC	27131600
Short Description	Milton (1817) 1/2" NPT Male G-Style Plug
Grouped Product Package Type	1817 - Box of 5
Number of Items in This Pack	5
Made in USA	Yes
Type	Plug
Display on Bloguns CMS Page	No
Basic Flow Size	1/2" Basic Flow Size
Connection Type	No
Maximum PSI	No
NPT thread size	1/2" Male NPT
Height	0.88
Width	0.88
Length	2.46
SCFM	Air Flow 99 SCFM
Style	G-Style

Milton Industries - 1817 - Package Information

Package/Shipping Quantity

1 per Card
