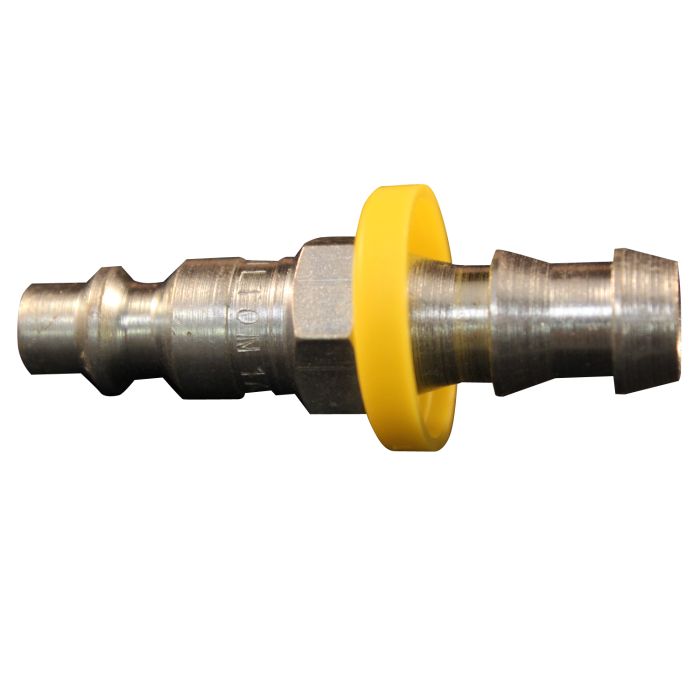

Milton 1736-6 | M-Style Plug - 3/8 in Push On and Lock Hose Barb

These 3/8" hose barbs are made of case hardened steel and are plated to resist rust. M-Style plugs offer a basic flow size of 1/4" and have a maximum inlet pressure of 300 PSI. Designed specifically for Milton push on and lock on air hoses, these hose barbs require no clamps or ferrules; simply push fitting into hose.

Milton Industries - 1736-6 - Features

• Milton M-Style "Kwik-change" couplers and plugs will interchange with all manufacturers who comply with the dimensional requirements of military specification MIL-C-4109.
• M-style plugs are case hardened steel, plated to resist rust.
• Maximum inlet pressure: 300 PSI
• Maximum temperature: 250� F
• Air flow: 40 SCFM
• Seals: Buna-N
• M-Style Plug - 3/8 In Push on & Lock Hose Barb

Milton Industries - 1736-6 - Overview

• 3/8" connection
• 40 standard cubic feet per minute
• Maximum inlet pressure of 300 pounds per square inch
• Maximum temperature of 250 degrees Fahrenheit
• 3/8 HOSE BARB PLUG

Milton Industries - 1736-6 - Related Products

• Milton 1/4" FNPT Dual Head Air Chuck (690)
• Milton 1/4" FNPT Dual-Head Air Chuck (Pack of 10)
• Milton 1/4" FNPT Dual Head Air Chuck (Box of 50)
• Milton 1/4" NPT Button-Style Blow Gun (Box of 10)
• Milton Safety Blow Gun & 4" Extension

Milton Industries - 1736-6 - Specifications

Order Part Number	MI1736-6
Item Desc	M-Style Plug - 3/8 In Push on & Lock Hose Barb
Product Group Id	MI00
Country of Origin	US
Harmonization Code	84242000
MS Bin Code	EG054
Default Selling Unit	EA
Status	Y
Short Description	3/8 HOSE BARB PLUG
Grouped Product Package Type	1736-6 - Box of 10
Number of Items in This Pack	10
UPC Code	30937304643
Made in USA	Yes
Type	Plug
Display on Bloguns CMS Page	No
Basic Flow Size	1/4" Basic Flow Size
Connection Type	No
Maximum PSI	No
NPT thread size	No
Hose barb size	3/8" Hose barb
Height	0.86
Width	0.86
Length	2.17
SCFM	Air Flow 40 SCFM
Material Type	No
