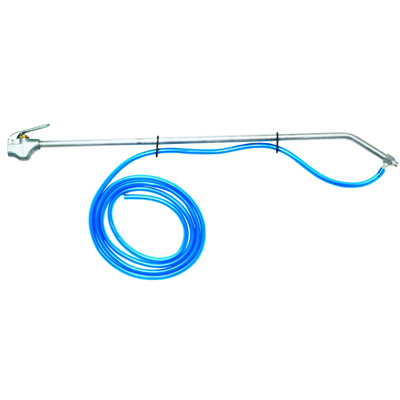

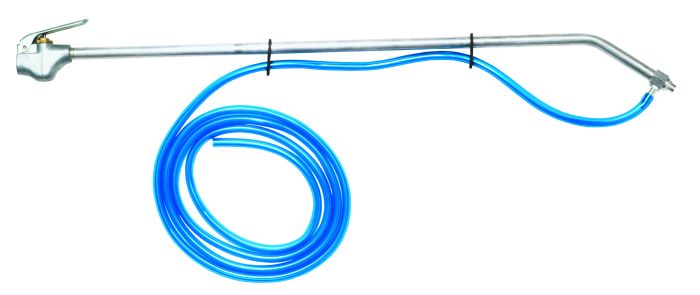

Milton 162 | Siphon Spray Blo-Gun Kit - 15 ft Tubing

With its 4' angled extension, this siphon spray blow gun is perfect for degreasing engines, shop floors, spraying livestock or plants and other liquid applications. This blow gun set comes with 15' of tubing and offers a maximum working pressure of 150 PSI. Blow gun comes with 1/4" NPT air inlet and offers 11.3 SCFM at 100 PSI.

Milton Industries - 162 - Features

• Made in USA
• Siphon Spray Blow Gun Kit
• Type Extended Reach
• Inlet Size 1/4 Inch
• Inlet Connection Threaded
• Body Material Zinc
• Air Consumption 11.3 SCFM at 100 PSI
• Pressure Rating 150 PSI
• Inclusions/Features Blow Gun and Length of Tubing
• Nozzle Thread Size 1/8 Inch-24 TPI
• Nozzle Length 4 Foot
• Tubing Length 15 Foot Length x 1/4 Inch Outer Diameter
• 4’ Extension
• 15’ Tubing
• 150 PSI Max Pressure
• SCFM 11.3 at 100 PSI
• 1/4” NPT air inlet
• O-ring seal creates air-tight connection. Dual thread designpermits use on all blo-guns with 7/16”-27 and 1/8” NPS

Milton Industries - 162 - Overview

• 1/4" national pipe thread
• Maximum working pressure of 150 pounds per square inch
• Designed for use with liquids

Milton Industries - 162 - Additional Information

• Nozzle Thread Size 1/8 Inch-24 TPI
• Nozzle Length 4 Foot
• Tubing Length 15 Foot Length x 1/4 Inch Outer Diameter

Milton Industries - 162 - Related Products

• Milton Siphon Spray Blow Gun Kit, 2' Long
• Milton 1/4" MNPT M-STYLE Plug (Pack of 10)
• Milton 1/4" NPT M-STYLE Coupler and Plug (Pack of 10)
• Milton Siphon Spray Nozzle (Box of 5)

Milton Industries - 162 - Specifications

Order Part Number	MI162
Item Desc	Siphon Spray Blo-Gun Kit - 15' Tubing
Individual Item Quantity	1 per Pack
Manufacturer Long Name	Milton Industries, Inc.
Manufacturer Part Number	162
UPC	309371016246
Product Group Id	MI00
Country of Origin	US
UNSPSC	27131500
Short Description	4' Siphon Spray Blo-Gun kit
Number of Items in This Pack	1
Made in USA	Yes
Manufacturer	Milton Industries Inc.
Material Type	No
Display on Bloguns CMS Page	No
SCFM	SCFM 11.3 @ 100 PSI
Maximum PSI	150 PSI
Maximum Pressure	Max Pressure 150 PSI
Air inlet NPT size	1/4" NPT Air Inlet
Height	0.75
Width	2.5
Length	4
Style	No
